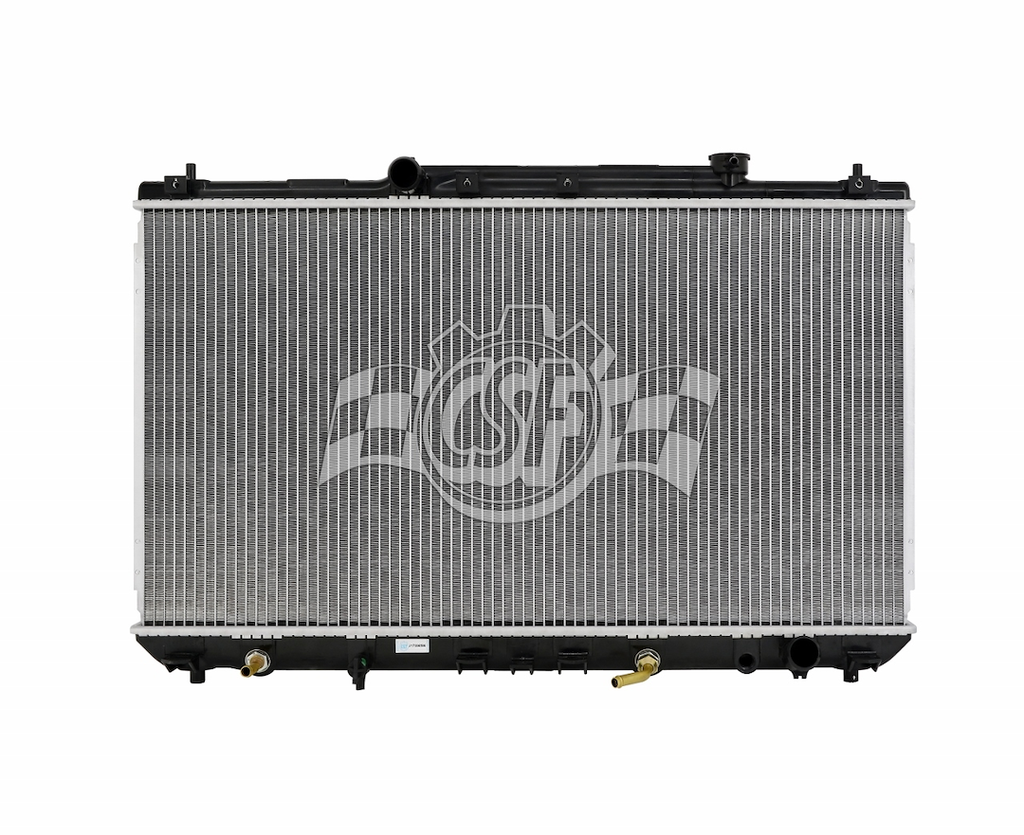

CSF Radiator With Transmission And Engine Oil Cooler (MPN: 2621)

High performance aluminum core radiator designed for durability and efficiency.

The CSF Radiator features a robust aluminum core construction with OEM specified plastic tanks, ensuring optimal performance and longevity. Designed for downflow applications, this radiator measures 15-13/16 inches in length, 29-1/16 inches in height, and 5/8 inch in depth, making it suitable for various vehicle models. The tanks are made from virgin grade engineered plastic resins that are glass filled for enhanced strength and durability, while the gaskets are crafted from special grade EPDM rubber to withstand extreme temperatures up to -120 degrees Fahrenheit.

This radiator is equipped with a high performance transmission cooler and an engine oil cooler, providing efficient cooling for both the engine and transmission systems. The innovative multi-louvered fin design maximizes airflow and heat dissipation, ensuring that the radiator operates effectively under demanding conditions. Each unit is 100 percent leak tested at 150 percent of operating pressure before leaving the factory, guaranteeing reliability and performance.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. Their products are engineered and wind tunnel tested to meet high performance standards, making them a trusted choice for automotive cooling solutions.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Tabulator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

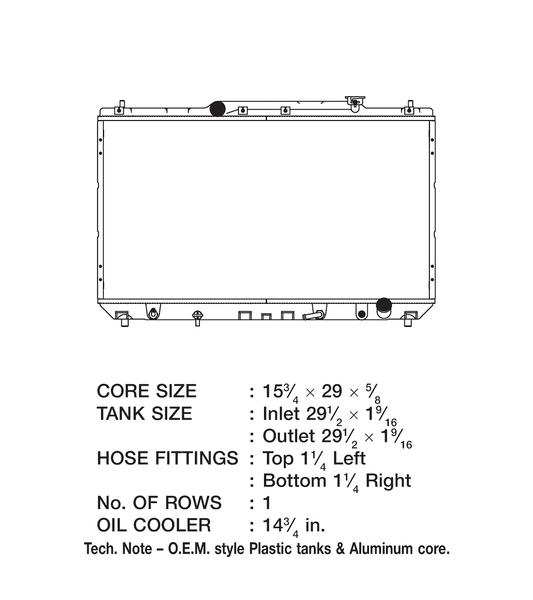

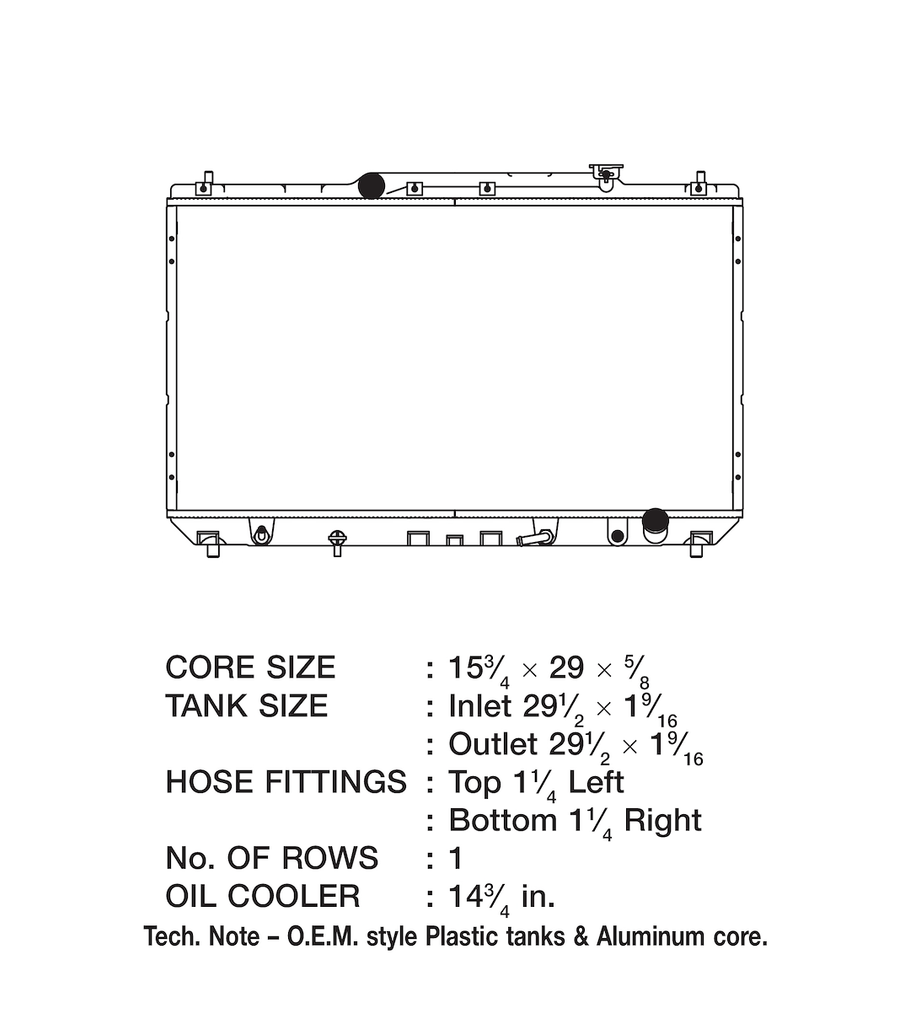

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 2621
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/4 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/4 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 15-13/16 Inch
• Core Height (IN): 29-1/16 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 1997-2001 Toyota Camry
• 1999-2001 Toyota Solara
