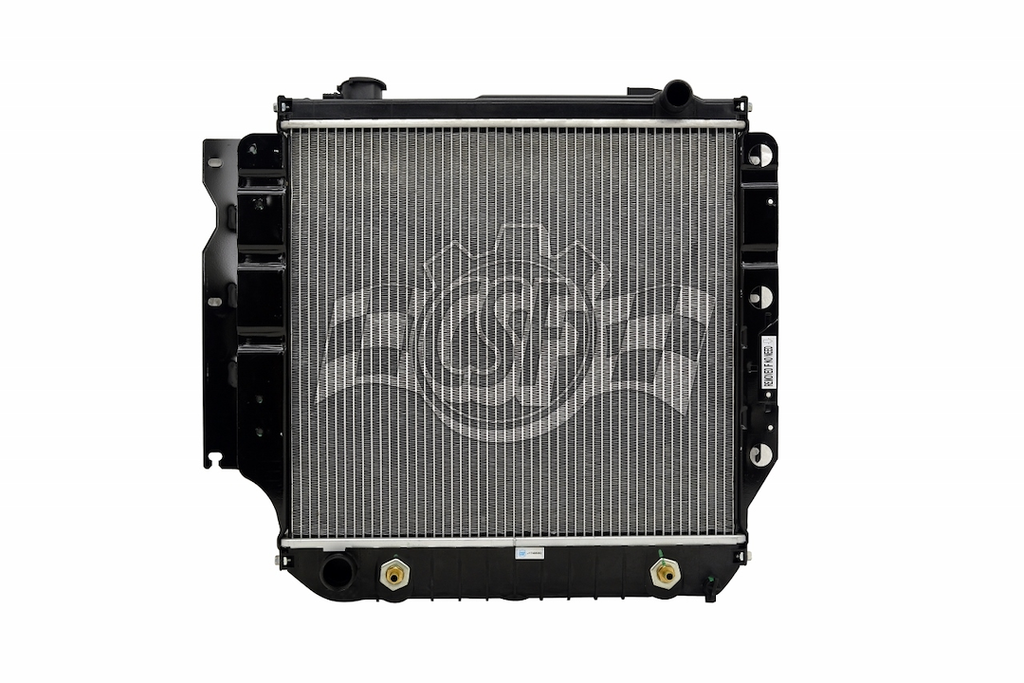

CSF Radiator With Engine Oil Cooler (MPN: 3244)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance and durability, featuring a single row design with a down flow configuration. Constructed from aluminum with OEM specified plastic tanks, this radiator ensures effective heat dissipation and longevity. The tanks are made from virgin grade engineered plastic resins that are glass filled for enhanced strength, while the gaskets are crafted from special grade EPDM rubber to withstand extreme temperatures.

This radiator is equipped with a high performance transmission cooler that includes a built-in turbulator, optimizing fluid flow and cooling efficiency. Each unit undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory. With over 50 years of experience and more than 30 million units sold, CSF radiators are a trusted choice for reliable vehicle cooling solutions.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degree Fahrenheit
• Tubes - Welded Type Or Latest Generation "B-Tube" Design
• Fins (Heart Of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• Drop-In Fit
• High Performance Transmission Cooler With Special Built-In Turbulator, When Applicable
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3244
• Flow Direction: Down Flow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-15/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-15/16 Inch
• Finish: OEM
• Color: Silver
• Core Length (IN): 18-1/8 Inch
• Core Height (IN): 19-5/8 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 1997-2006 Jeep Wrangler TJ
• 1987-1995 Jeep Wrangler YJ
