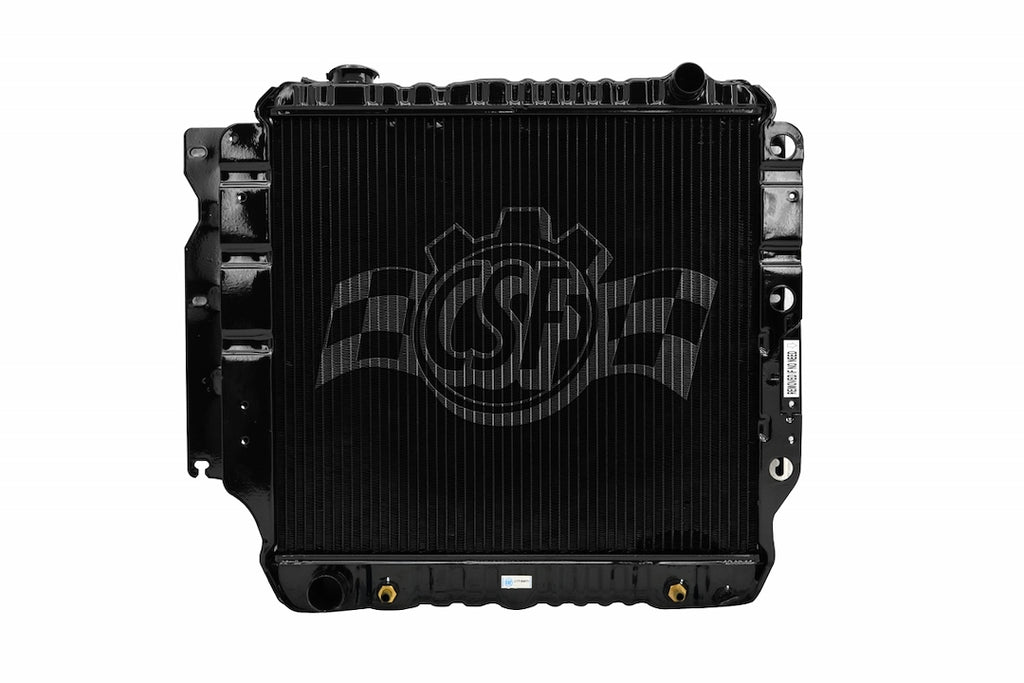

CSF Radiator Downflow Copper Design (MPN: 2576)

High performance radiator with advanced cooling technology and durability features.

The CSF Radiator is engineered to meet high performance standards, ensuring optimal cooling for various vehicle models. With overall dimensions of 25-5/16 inches in length and 28-1/16 inches in height, this radiator features a two-row downflow design made from durable copper. The core dimensions measure 18-1/8 inches in length, 20 inches in height, and 1-1/4 inches in depth, providing efficient heat dissipation for enhanced engine performance.

Constructed with OEM specified plastic tank-aluminum core technology, the tanks are made from virgin grade engineered plastic resins that are glass filled for added strength. The radiator is equipped with high performance features such as a multi-louvered fin design and a built-in transmission cooler with a special turbulator, ensuring effective cooling under various operating conditions. Each unit is rigorously leak tested at 150 percent of operating pressure before leaving the factory, guaranteeing reliability and performance.

Designed for a drop-in fit, the CSF Radiator includes a top right inlet of 1-1/4 inches and a bottom left outlet of 1-1/2 inches. The use of special grade EPDM rubber gaskets allows the radiator to withstand extreme temperatures, making it suitable for a wide range of applications. This radiator is an essential component for maintaining engine efficiency and longevity.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes - Welded Type Or Latest Generation "B-Tube" Design
• Fins High Performance "Multi-Louvered Design" OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• Drop-In Fit
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 2576
• Flow Direction: Downflow
• Core Rows: Two
• Core Material: Copper
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-1/4 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-1/2 Inch
• Finish: Natural
• Color: Black
• Core Length (IN): 18-1/8 Inch
• Core Height (IN): 20 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Brass
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 1997-2002 Jeep Wrangler TJ
• 1987-1995 Jeep Wrangler YJ
