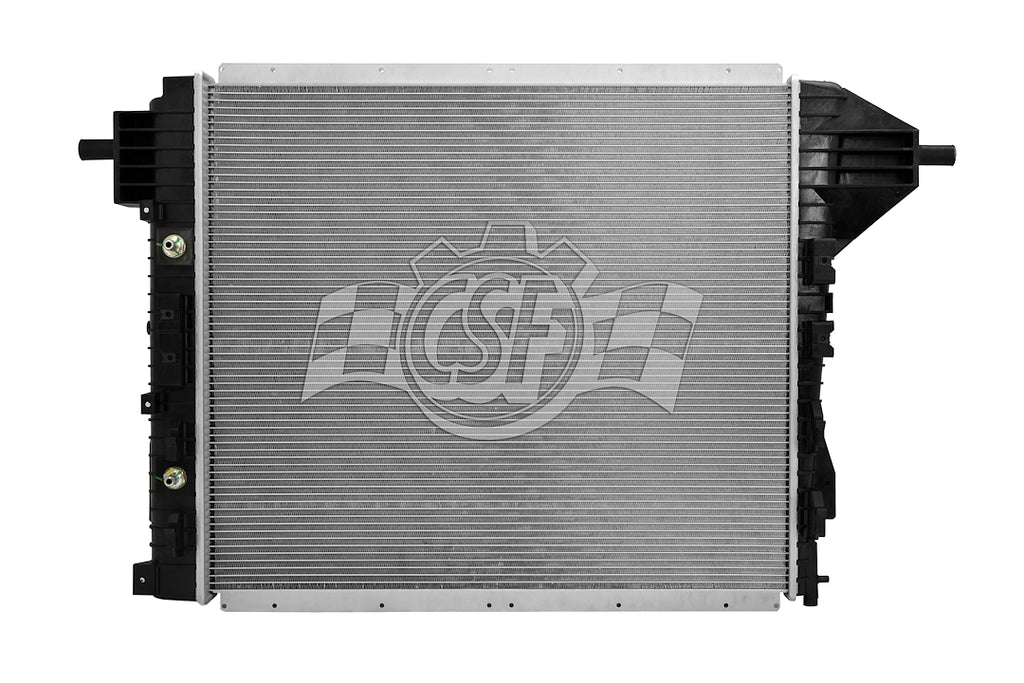

CSF Radiator Crossflow Aluminum Design (MPN: 3796)

High performance radiator with advanced cooling technology and durability features.

The CSF Radiator is engineered for high performance, featuring a crossflow design that optimizes cooling efficiency. With core dimensions of 26-11/16 inches in width and 30-9/16 inches in length, this radiator is constructed from aluminum, ensuring lightweight yet robust performance. The unit includes a high-performance transmission cooler with a built-in turbulator, enhancing fluid dynamics and heat dissipation.

This radiator is built to OEM specifications, utilizing virgin grade engineered plastic resins for the tanks, which are glass-filled for added strength and durability. The gaskets are made from special grade EPDM rubber, capable of withstanding extreme temperatures up to -120 degrees Fahrenheit. Each unit undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory.

Designed for a drop-in fit, the CSF Radiator features a single core row and a multi-louvered fin design that maximizes airflow and cooling performance. The inlet and outlet hose locations are strategically positioned at the top left and bottom right, respectively, with both measuring 1-7/8 inches. This radiator is an essential component for maintaining optimal engine temperatures and performance.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes - Welded Type Or Latest Generation "B-Tube" Design
• Fins High Performance "Multi-Louvered Design" OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• Drop-In Fit
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3796
• Flow Direction: Crossflow
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-7/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-7/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 30-9/16 Inch
• Core Height (IN): 26-11/16 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2008-2016 Ford F-250 Super Duty
• 2008-2016 Ford F-350 Super Duty
• 2016-2016 Ford F-450 Super Duty
