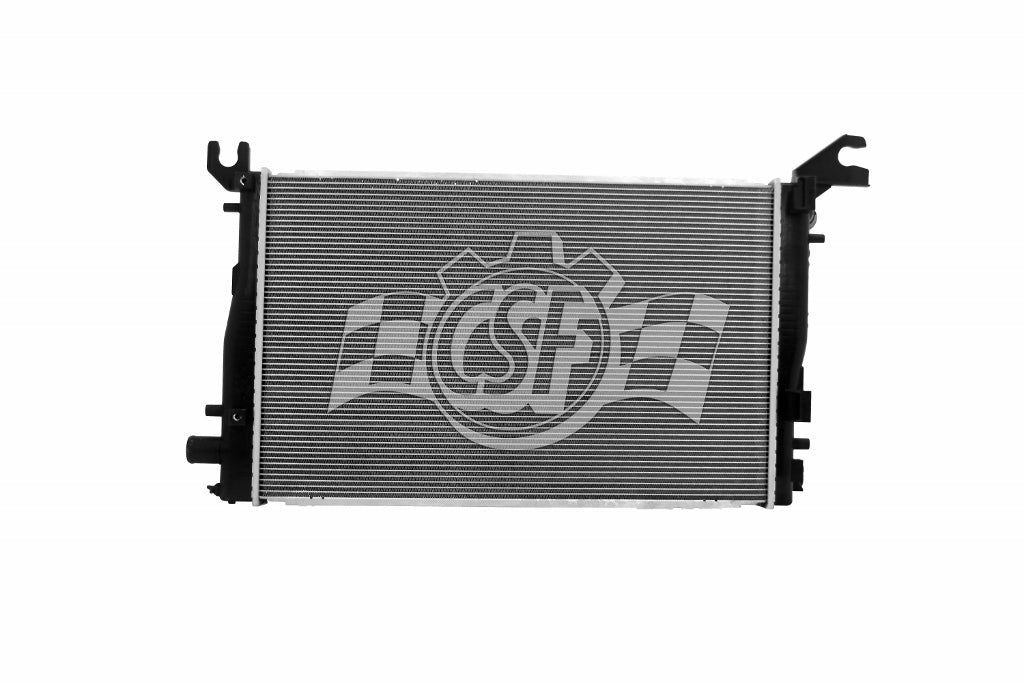

CSF Radiator Crossflow Aluminum Design (MPN: 3664)

High performance aluminum radiator with advanced cooling technology.

The CSF Radiator features a crossflow design, optimized for efficient cooling in various vehicle applications. Constructed with an aluminum core and OEM specified plastic tanks, this radiator ensures durability and strength through the use of virgin grade engineered plastic resins. The design includes high performance multi-louvered fins and welded tubes, enhancing heat dissipation and overall cooling performance.

Engineered to withstand extreme temperatures, the gaskets are made from special grade EPDM rubber, ensuring reliability in harsh conditions. Each radiator undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory. This attention to detail guarantees a drop-in fit and dependable operation for your vehicle.

With a core dimension of 15-7/8 inches in width, 25-9/16 inches in length, and 7/8 inch in depth, the CSF Radiator is designed to meet high performance standards. The inlet and outlet sizes of 1-3/8 inches are strategically placed for optimal flow direction, making this radiator a suitable choice for those seeking enhanced cooling efficiency.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes - Welded Type Or Latest Generation "B-Tube" Design
• Fins High Performance "Multi-Louvered Design" OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• Drop-In Fit
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3664
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 25-9/16 Inch
• Core Height (IN): 15-7/8 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2013-2018 Ram 2500
• 2013-2018 Ram 3500
