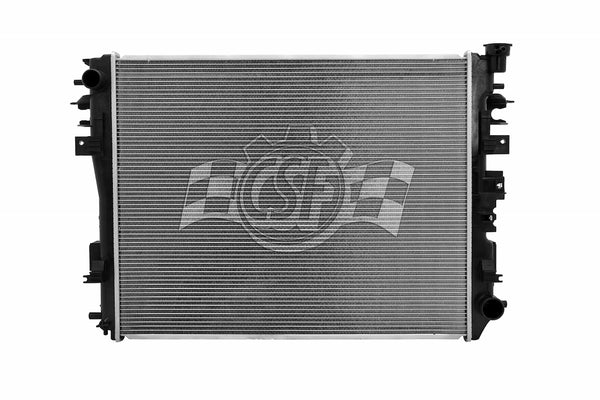

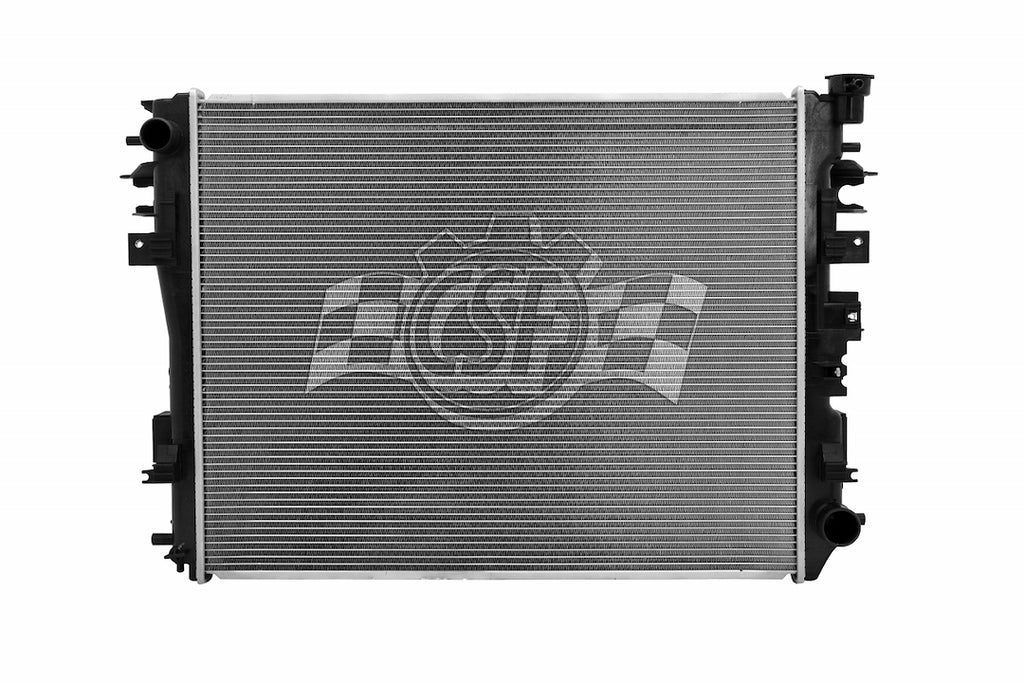

CSF Radiator Crossflow Aluminum Design (MPN: 3662)

High performance radiator engineered for optimal cooling efficiency.

CSF Radiators are meticulously designed to meet high performance standards, ensuring reliable cooling for various vehicle models. This specific radiator features a crossflow design with an aluminum core, providing effective heat dissipation. The construction includes OEM specified plastic tanks made from virgin grade engineered plastic resins, which are glass filled for enhanced strength and durability.

The radiator is equipped with a top left inlet and a bottom right outlet, facilitating efficient fluid flow. It is built to withstand extreme temperatures, with gaskets made from special grade EPDM rubber that can endure conditions as low as -120 degrees Fahrenheit. Each unit undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory.

With a drop-in fit and all components installed, torqued, and tested during assembly, this radiator is designed for easy installation. The high performance multi-louvered fins and the latest generation B-tube design contribute to its superior cooling capabilities, making it a reliable choice for maintaining optimal engine temperatures.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes - Welded Type Or Latest Generation "B-Tube" Design
• Fins High Performance "Multi-Louvered Design" OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• Drop-In Fit
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3662
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/4 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 27-1/2 Inch
• Core Height (IN): 21-9/16 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2009-2010 Dodge Ram 1500
• 2010-2010 Dodge Ram 2500
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
• 2011-2013 Ram 2500
• 2013-2013 Ram 3500
