CSF Radiator Crossflow Aluminum Design (MPN: 3653)

High performance radiator with advanced cooling technology and durability features.

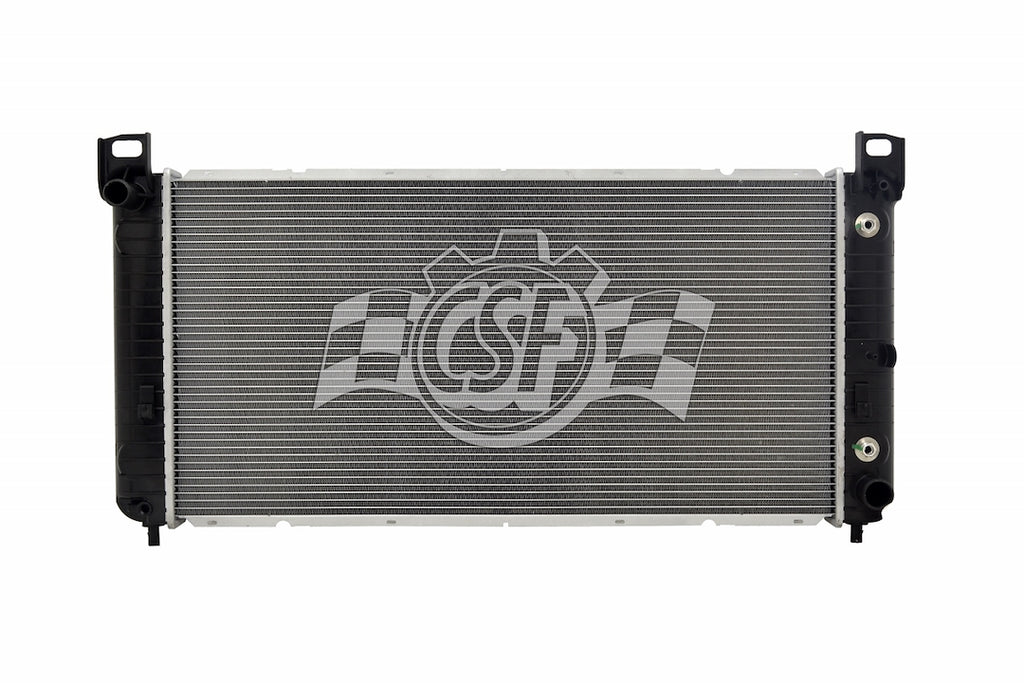

The CSF Radiator is engineered for high performance, featuring a crossflow design that optimizes cooling efficiency. With overall dimensions of 41-7/8 inches in length and 23-9/16 inches in height, this radiator is built to fit a variety of vehicle applications. The core dimensions measure 34 inches in length, 17-1/4 inches in height, and 1-1/4 inches in depth, ensuring effective heat dissipation through its single row construction.

Constructed from aluminum with OEM specified plastic tanks, the CSF Radiator utilizes virgin grade engineered plastic resins that are glass filled for enhanced strength and durability. The design includes high performance multi-louvered fins and welded type tubes or the latest generation B-tube design, which contribute to its superior cooling capabilities. Each unit is rigorously leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance.

This radiator features a top left inlet measuring 1-5/16 inches and a bottom right outlet measuring 1-9/16 inches, accommodating various vehicle configurations. Additionally, it includes a built-in transmission cooler with a special turbulator for improved fluid flow. The CSF Radiator is designed for a drop-in fit, making installation straightforward and efficient.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes - Welded Type Or Latest Generation "B-Tube" Design
• Fins High Performance "Multi-Louvered Design" OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• Drop-In Fit
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3653
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-5/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-9/16 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 34 Inch
• Core Height (IN): 17-1/4 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2002-2005 Cadillac Escalade
• 2007-2008 Cadillac Escalade
• 2007-2008 Cadillac Escalade ESV
• 2007-2008 Cadillac Escalade EXT
