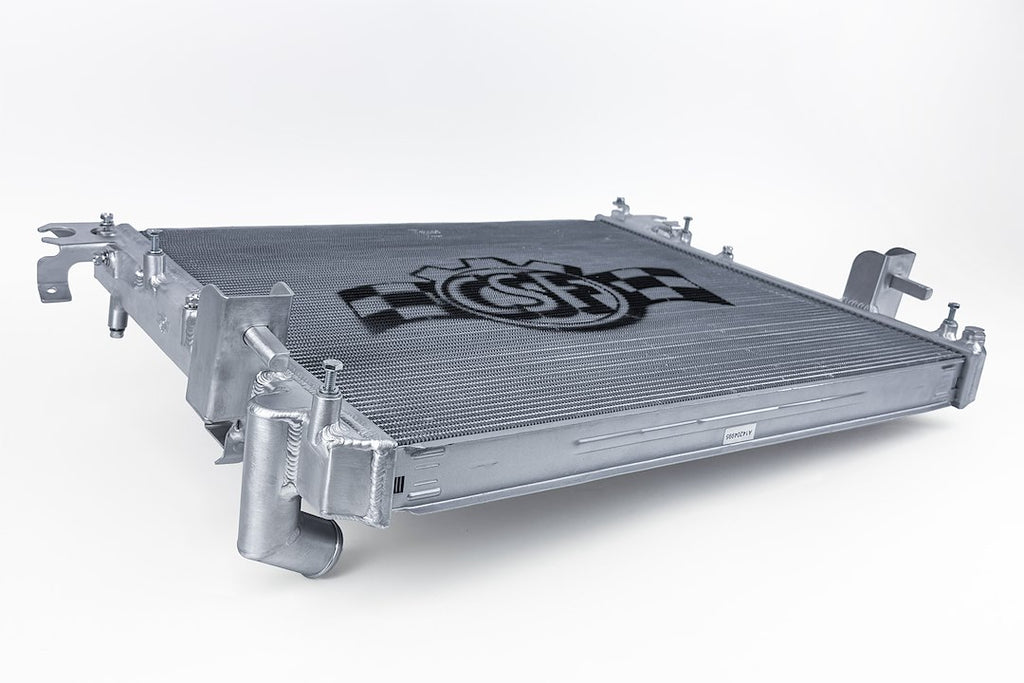

CSF Radiator (MPN: 7340)

Advanced cooling technology for enhanced engine performance and reliability.

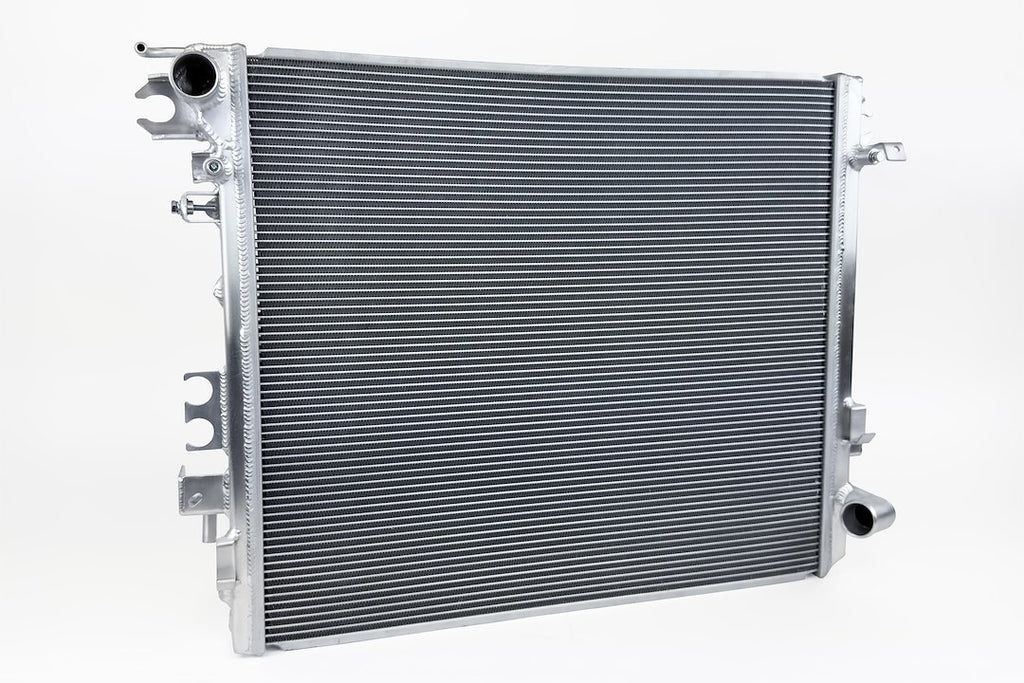

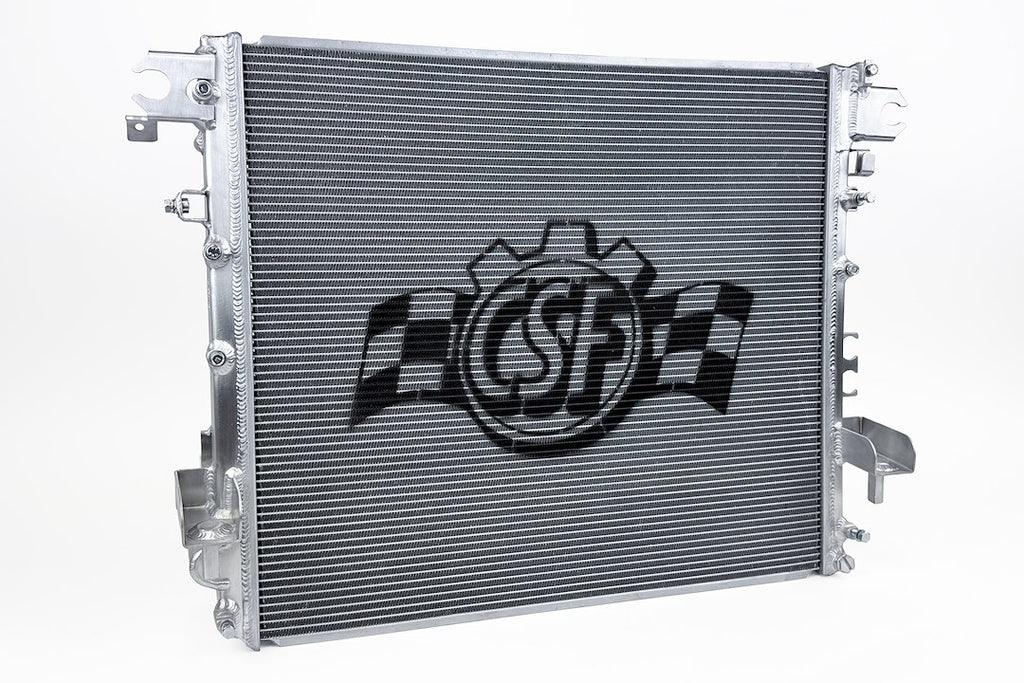

The CSF Radiator is designed to provide superior cooling performance for modern SUVs and trucks. With core dimensions of 21.96 inches in length, 19.48 inches in width, and 1.65 inches in thickness, this radiator features a two-core row design that enhances fluid capacity and heat dissipation. The innovative B-Tube Technology increases heat transfer efficiency by approximately 15 percent compared to standard oval welded tubes, ensuring optimal engine temperature management under various driving conditions.

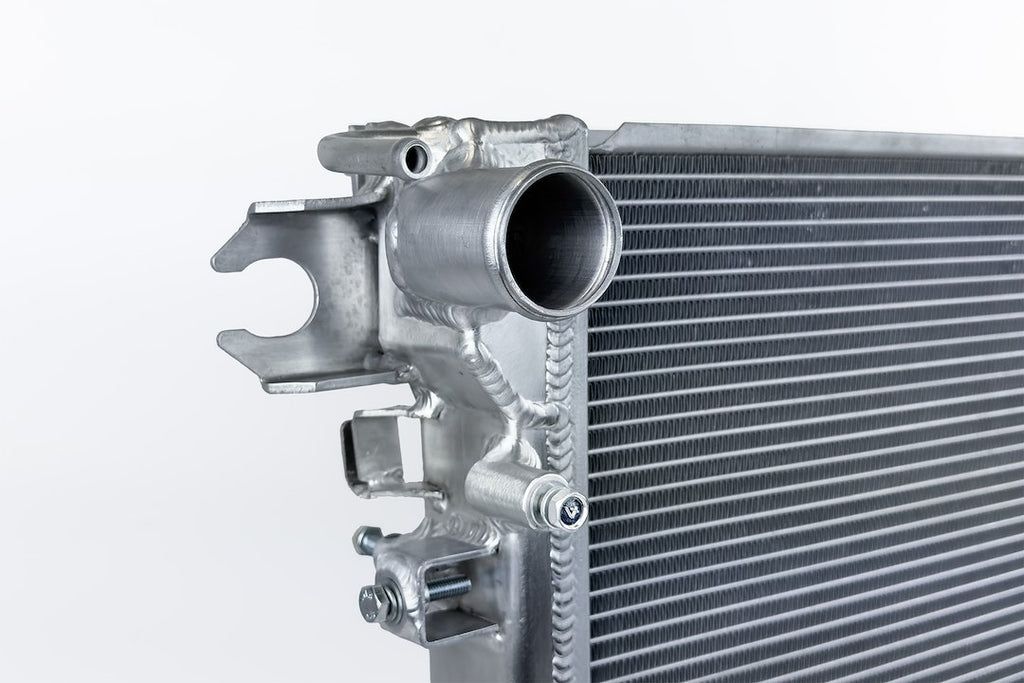

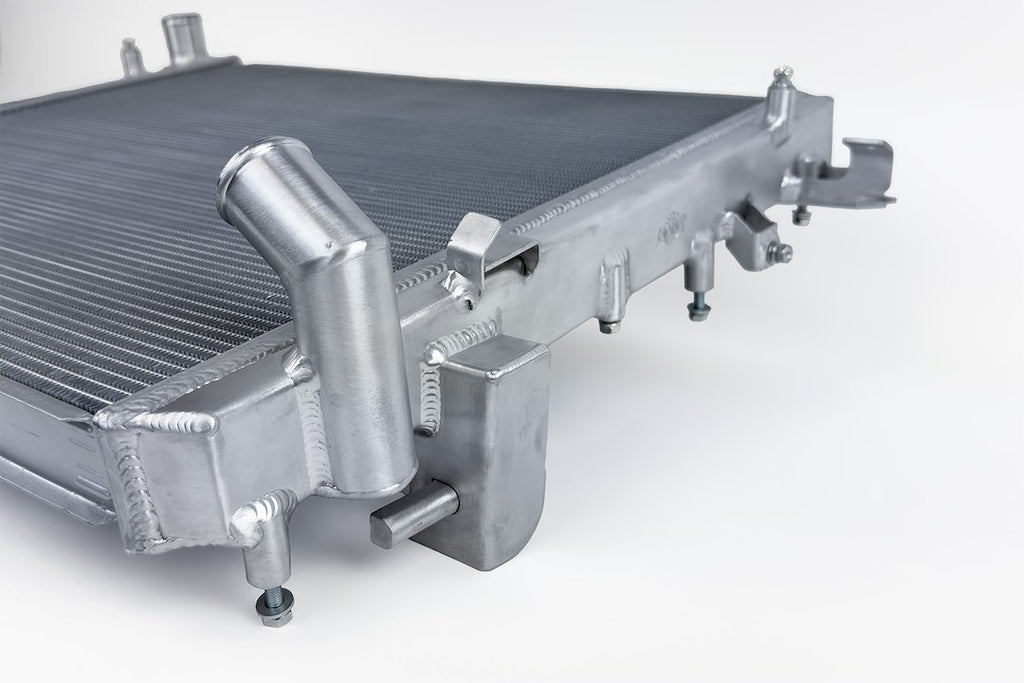

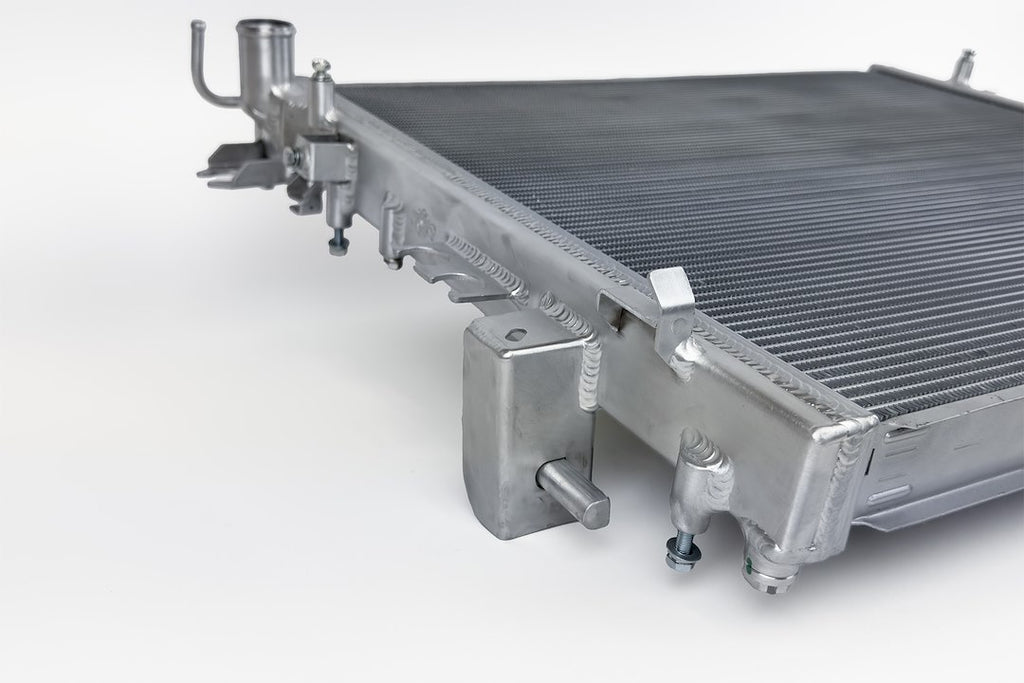

Constructed from 100 percent aluminum with TIG-welded seams, the CSF Radiator is built for durability and reliability. The CNC machined mounting brackets and OEM style inlet and outlet connections facilitate a true plug-and-play installation, requiring no modifications. The ultra-efficient multi-louvered fins, standing 5 millimeters tall, maximize airflow through the core, contributing to improved cooling performance.

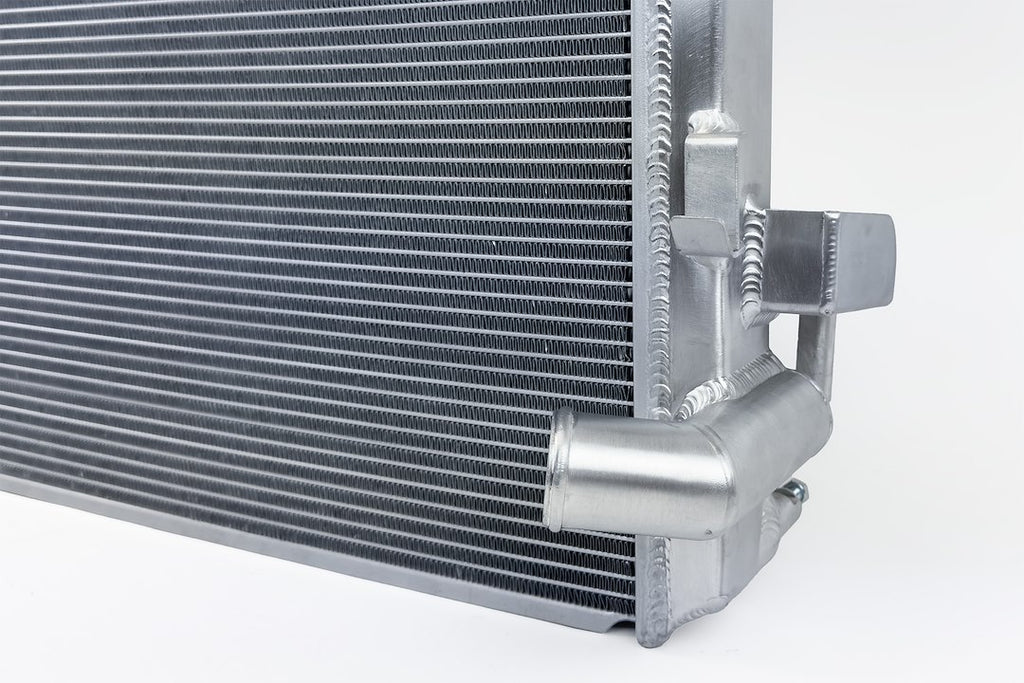

Individually leak and pressure tested, this radiator guarantees a dependable solution for preventing engine overheating. The satin finish and silver color provide a sleek appearance while maintaining the technical integrity of the product. With a top left inlet and bottom right outlet, the CSF Radiator is engineered to meet the demands of high-performance vehicles.

Features

• Cooling Tubes With CSF's Exclusive B-Tube Technology
• CNC Machined Mounting Brackets And OEM Style Inlet And Outlet
• New 5 Millimeter Tall Ultra Efficient Fins With A Multi-Louvered Design For Maximum Surface Area Contact
• 100 Percentage All Aluminum TIG-Welded Construction
• Individually Leak And Pressure Tested
• True Plug-And-Play Drop-In Fit Installation Requires Absolutely No Modifications

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7340
• Flow Direction: Crossflow
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1.37 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1.37 Inch
• Finish: Satin
• Color: Silver
• Core Height (IN): 19.48 Inch
• Core Depth (IN): 1.65 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2020-2025 Jeep Gladiator JT
• 2018-2025 Jeep Wrangler JL
