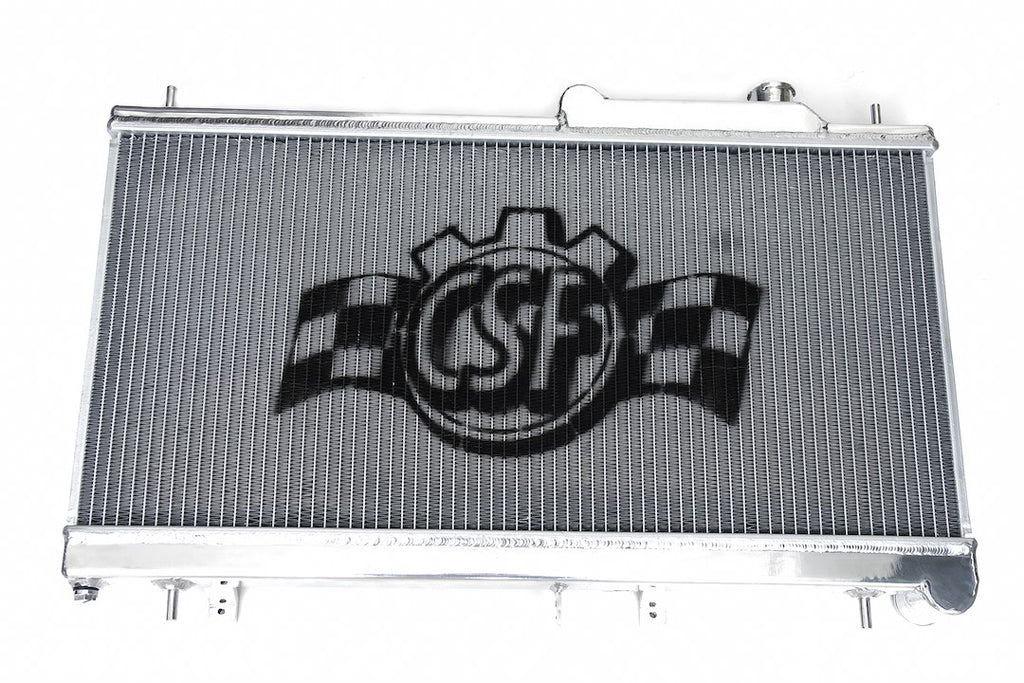

CSF Radiator (MPN: 7095)

High-performance aluminum radiator with advanced cooling technology.

The CSF Radiator is designed to provide optimal cooling performance for a wide range of automotive applications. With core dimensions of 27-1/16 inches in length, 13-3/8 inches in height, and 1-5/8 inches in depth, this dual-row radiator features a robust aluminum construction that ensures durability and efficiency. The innovative B-Tube technology enhances fluid flow, while the ultra-efficient 6.5mm tall fins maximize surface area contact for superior heat dissipation.

This radiator is equipped with a top left inlet and a bottom left outlet, both measuring 1-9/16 inches, allowing for a straightforward installation without the need for modifications. The product comes with a radiator cap and is individually leak and pressure tested to guarantee reliability. The polished finish not only adds to its aesthetic appeal but also contributes to its overall performance.

CSF's commitment to quality is evident in the CNC machined mounting brackets and the inclusion of a multi-fit combo pipe and plug design. This ensures a true drop-in fit for easy installation across various vehicle models. With over 3,200 applications covered, the CSF Radiator stands out as a high-quality aftermarket replacement option for those seeking effective cooling solutions.

Features

• 100 Percent All-Aluminum TIG-Welded Construction
• High-Performance Core Features CSF’s Exclusive B-Tube Technology
• Core Featured Ultra Efficient 6.5mm Tall Fins With A Multi-Louvered Design For Maximum Surface Area Contact
• CNC Machined Mounting Brackets

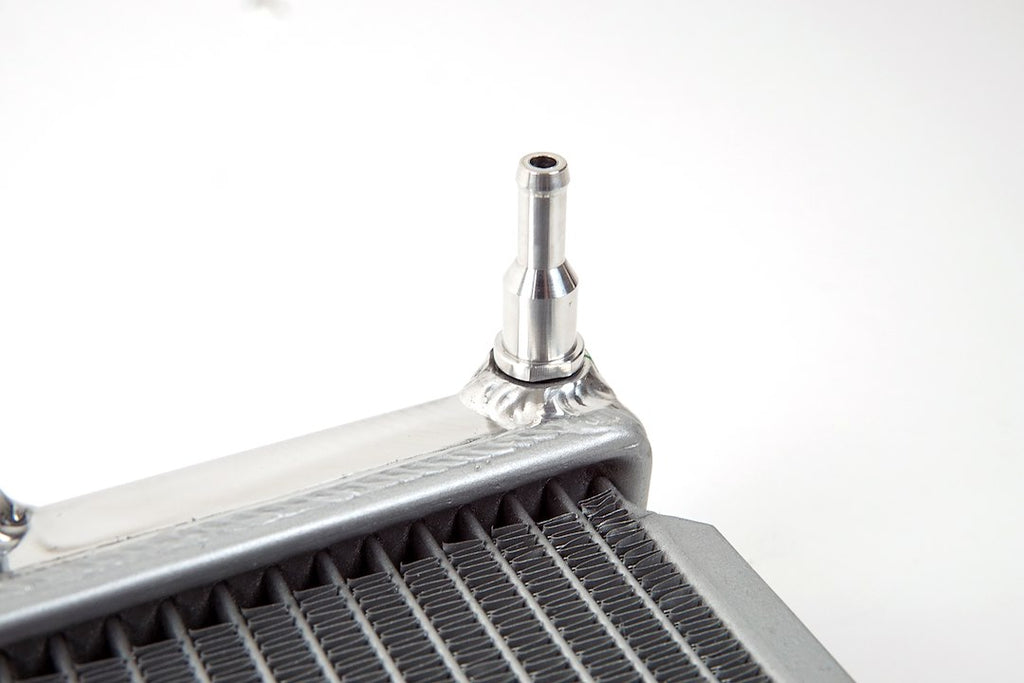

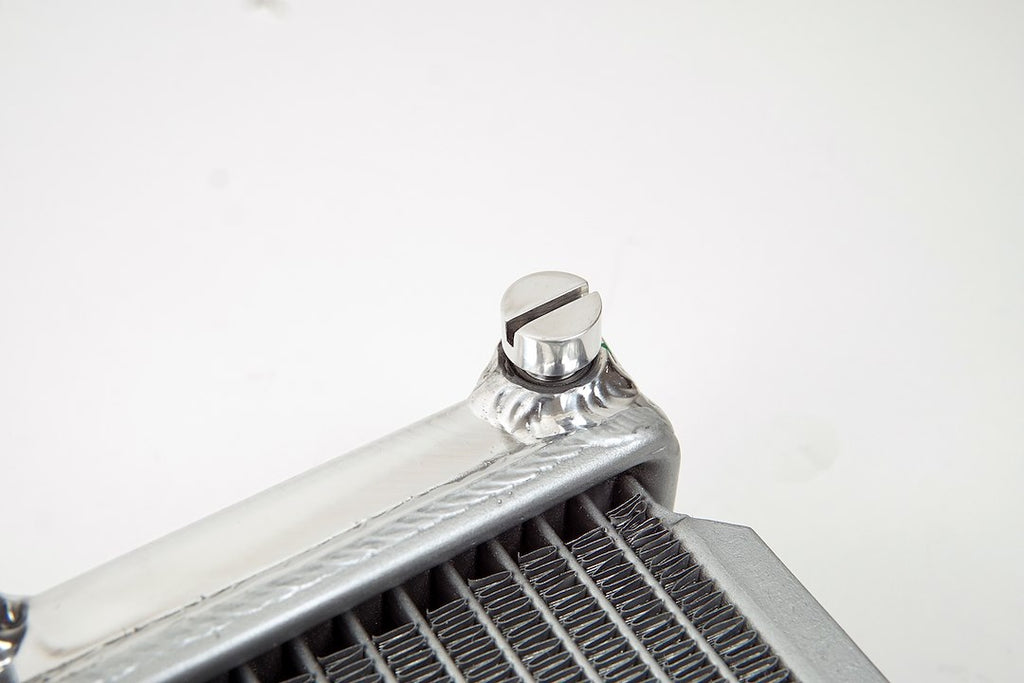

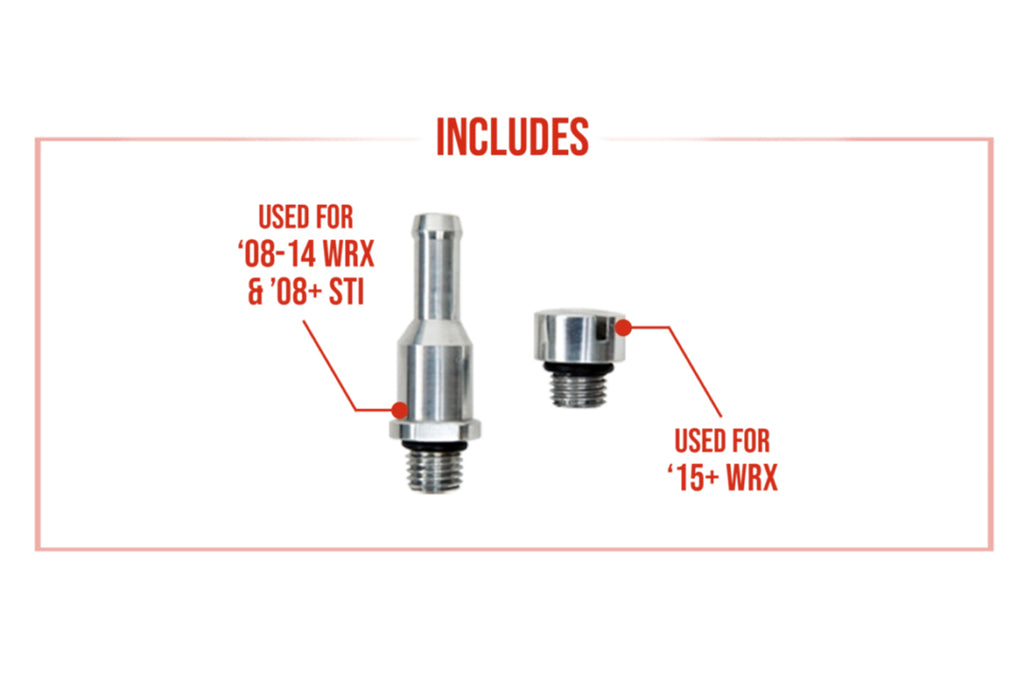

• Comes With Innovative “Multi-Fit” Combo Pipe And Plug Design
• Individually Leak And Pressure Tested
• 1 Hour “Mirror Finish” Hand Polish
• True “Drop-In Fit” Requires No Modifications To Install

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7095
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Dual
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-9/16 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-9/16 Inch
• Finish: Polished
• Color: Silver
• Core Length (IN): 27-1/16 Inch
• Core Height (IN): 13-3/8 Inch
• Core Depth (IN): 1-5/8 Inch
• With Radiator Cap: Yes
• With Transmission Cooler: No
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2016-2017 Subaru Crosstrek
• 2009-2013 Subaru Forester
• 2008-2016 Subaru Impreza
• 2005-2009 Subaru Legacy
• 2005-2010 Subaru Outback
• 2015-2021 Subaru WRX
• 2015-2021 Subaru WRX STI
• 2013-2015 Subaru XV Crosstrek
