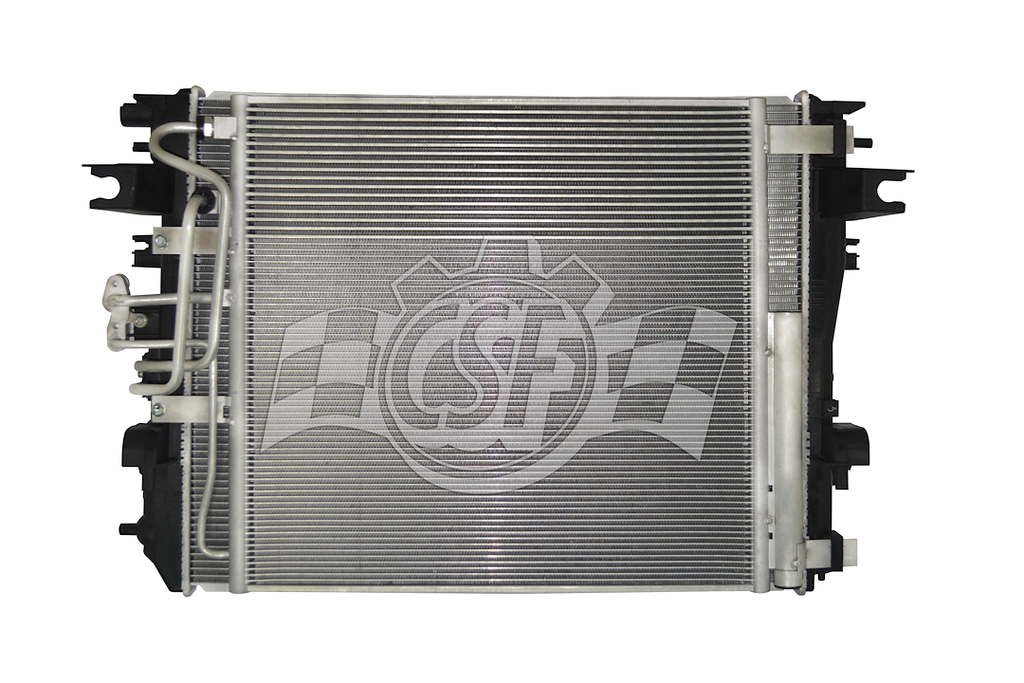

CSF Radiator (MPN: 3960)

High performance aluminum radiator with advanced cooling technology.

The CSF Radiator is engineered for optimal cooling performance, featuring a single row crossflow design. With core dimensions of 27-1/2 inches in length, 21-11/16 inches in height, and 1-3/16 inches in depth, this radiator is constructed from high-quality aluminum and includes OEM specified plastic tanks. The tanks are made from virgin grade engineered plastic resins, ensuring durability and strength under extreme conditions.

This radiator is designed to withstand temperatures as low as -120 degrees Fahrenheit, thanks to special grade EPDM rubber gaskets. The innovative multi-louvered fin design enhances heat dissipation, while the welded tube construction ensures reliability. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring that it meets high performance standards.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. This radiator is a drop-in fit, making installation straightforward. It is compatible with a wide range of vehicles, providing an effective solution for cooling needs.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are Glass Filled For Added Strength And Durability
• Gaskets Are Made From Special Grade EPDM Rubber To Withstand Extreme Temperatures Of Up To -120 Degree Fahrenheit
• Tubes - Welded Type Or Latest Generation B-Tube Design
• Fins: High Performance Multi-Louvered Design OEM Specification
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• Industry Best Packaging: 10 Feet Drop Test Standard
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly
• Drop-In Fit

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3960
• Flow Direction: Crossflow
• Overall Length (IN): 37-15/16 Inch
• Overall Height (IN): 12-3/16 Inch
• Overall Depth (IN): 25-1/2 Inch
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-13/16 Inch
• Finish: Natural
• Color: Black/Silver
• Core Length (IN): 27-1/2 Inch
• Core Height (IN): 21-11/16 Inch
• Core Depth (IN): 1-3/16 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: Yes

Compatibility / Fit

• 2020-2023 Ram 1500- New Model
