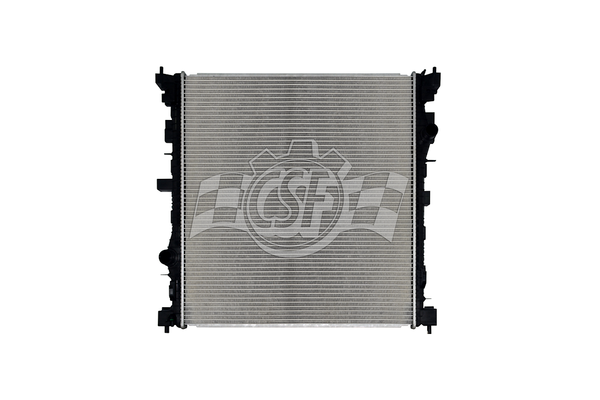

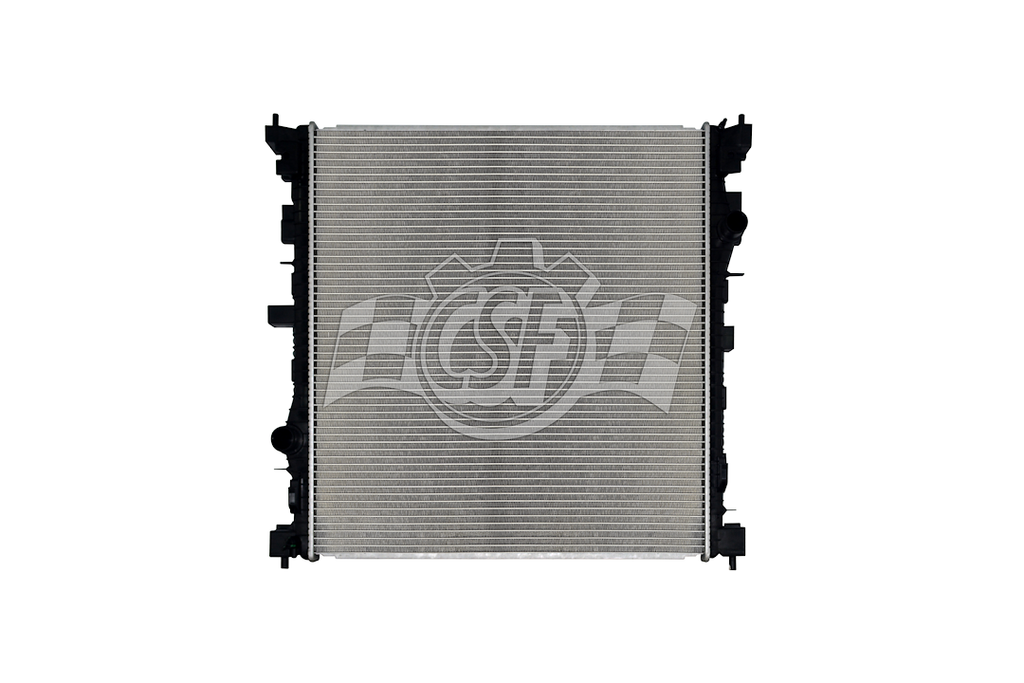

CSF Radiator (MPN: 3940)

High performance aluminum radiator with advanced cooling technology.

The CSF Radiator features a robust aluminum core with plastic tanks, designed for optimal cooling efficiency. With dimensions of 25-5/16 inches in length, 27 inches in width, and a thickness of 7/8 inch, this single-row crossflow radiator is engineered to meet high performance standards. It includes a high performance transmission cooler with a built-in turbulator, enhancing fluid flow and heat dissipation.

Constructed with OEM specified plastic tank-aluminum core technology, the tanks are made from virgin grade engineered plastic resins that are glass filled for added strength and durability. The radiator is equipped with special grade EPDM rubber gaskets that can withstand extreme temperatures, ensuring reliability in various operating conditions. Each unit is 100 percent leak tested at 150 percent of operating pressure before leaving the factory, guaranteeing quality and performance.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. This radiator is designed to provide efficient cooling for automotive applications, making it a reliable choice for those seeking durability and performance in their vehicle's cooling system.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3940
• Flow Direction: Crossflow
• Overall Length (IN): 32-7/16 Inch
• Overall Height (IN): 30-13/16 Inch
• Overall Depth (IN): 6-1/4 Inch
• Core Rows: Single
• Core Material: Aluminum
• Inlet Size (IN): 1-9/16 Inch
• Outlet Size (IN): 1-9/16 Inch
• Color: Black/ Silver
• Core Length (IN): 25-5/16 Inch
• Core Height (IN): 27 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No

Compatibility / Fit

• 2020-2024 Ford Explorer
• 2020-2024 Lincoln Aviator
