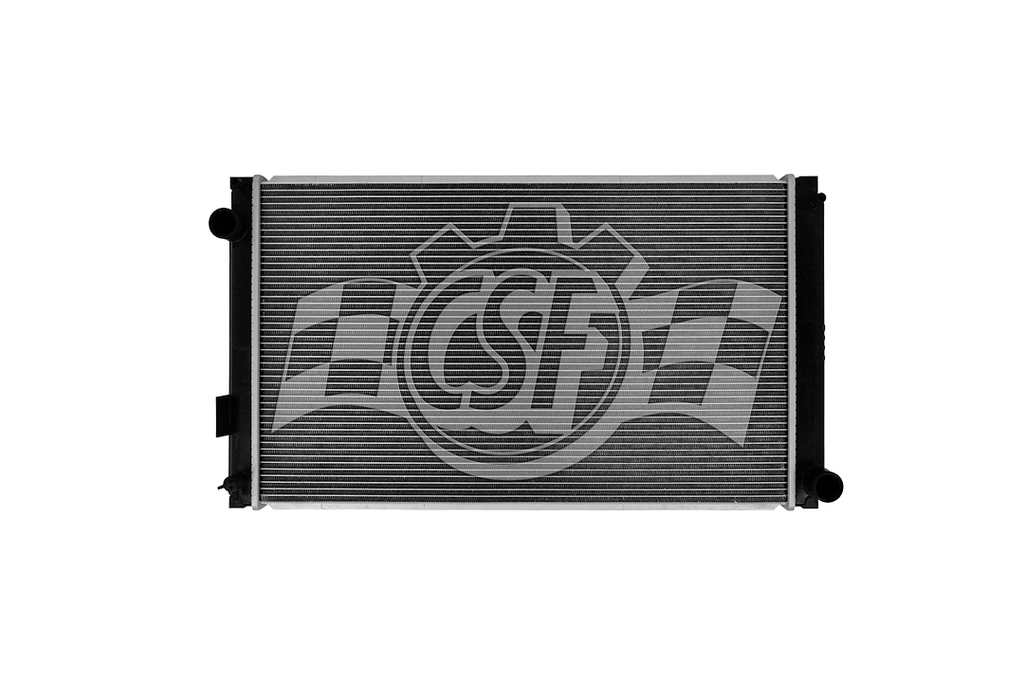

CSF Radiator (MPN: 3785)

High performance aluminum radiator with advanced cooling technology.

The CSF Radiator features a robust aluminum core with plastic tanks, designed for optimal cooling efficiency. With core dimensions of 26-9/16 inches in length, 16 inches in width, and 1-1/4 inches in thickness, this radiator is engineered to meet OEM specifications. It includes a single row design and a crossflow configuration, ensuring effective heat dissipation for various vehicle applications.

Constructed from virgin grade engineered plastic resins, the tanks are glass filled for enhanced strength and durability. The radiator is equipped with high-performance multi-louvered fins and utilizes a welded type or the latest generation B-tube design for superior fluid flow. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. This radiator is designed to fit seamlessly into your vehicle, featuring a drop-in fit and a high-performance transmission cooler with a built-in turbulator. The combination of advanced materials and meticulous assembly processes guarantees a product that meets high performance standards.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are Glass Filled For Added Strength And Durability
• Gaskets Are Made From Special Grade EPDM Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation B-Tube Design
• Fins: High Performance Multi-Louvered Design And OEM Specification
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• Industry Best Packaging: 10 Foot Drop Test Standard
• Drop-In Fit And High Performance Transmission Cooler With Special Built-In Turbulator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

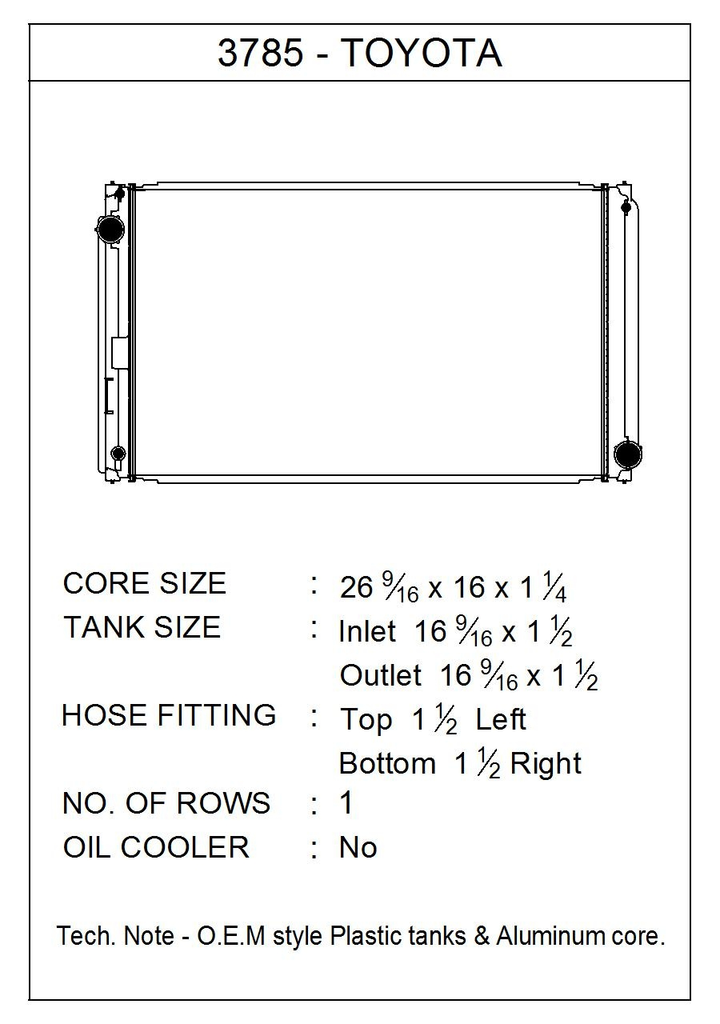

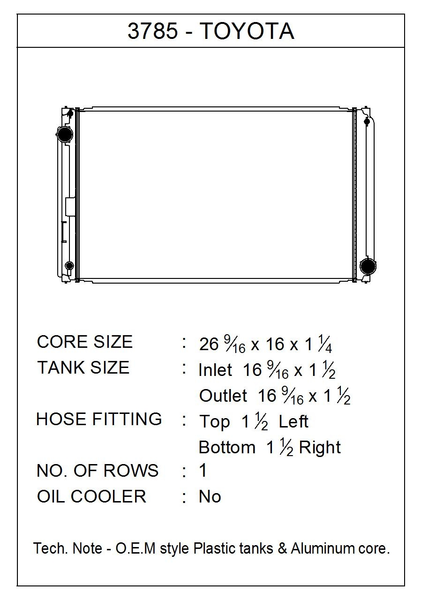

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3785
• Flow Direction: Crossflow
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/2 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 26-9/16 Inch
• Core Height (IN): 16 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2015-2021 Lexus NX300h
• 2016-2018 Toyota RAV4
