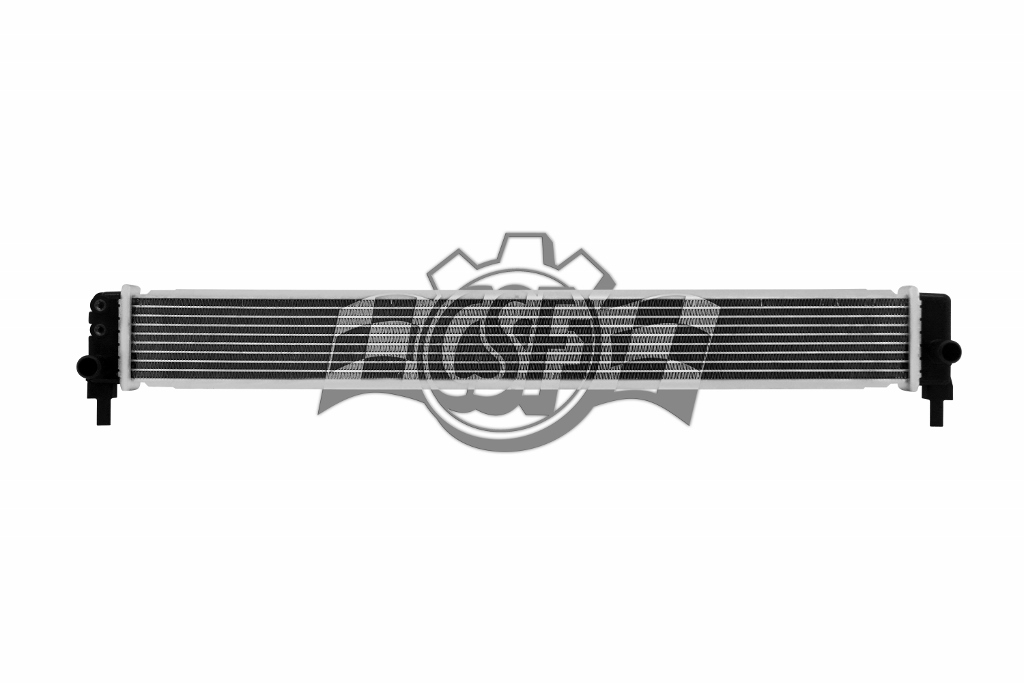

CSF Radiator (MPN: 3774)

High performance aluminum core radiator with durable plastic tanks.

The CSF Radiator features a robust aluminum core construction with OEM specified plastic tanks, designed for optimal cooling efficiency. With core dimensions of 23-9/16 inches in length, 2-3/8 inches in width, and 7/8 inches in depth, this single core row radiator is engineered for crossflow applications. The tanks are made from virgin grade engineered plastic resins that are glass filled for enhanced strength and durability, ensuring long-lasting performance under extreme conditions.

This radiator is equipped with gaskets made from special grade EPDM rubber, capable of withstanding temperatures as low as -120 degrees Fahrenheit. The design includes welded type tubes or the latest generation B-tube design, along with high performance multi-louvered fins that meet OEM specifications. Each unit undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. This radiator does not include a transmission cooler or radiator cap, making it a straightforward solution for those seeking a reliable cooling component. The top right inlet and bottom left outlet are designed for easy installation, making it a practical choice for various applications.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

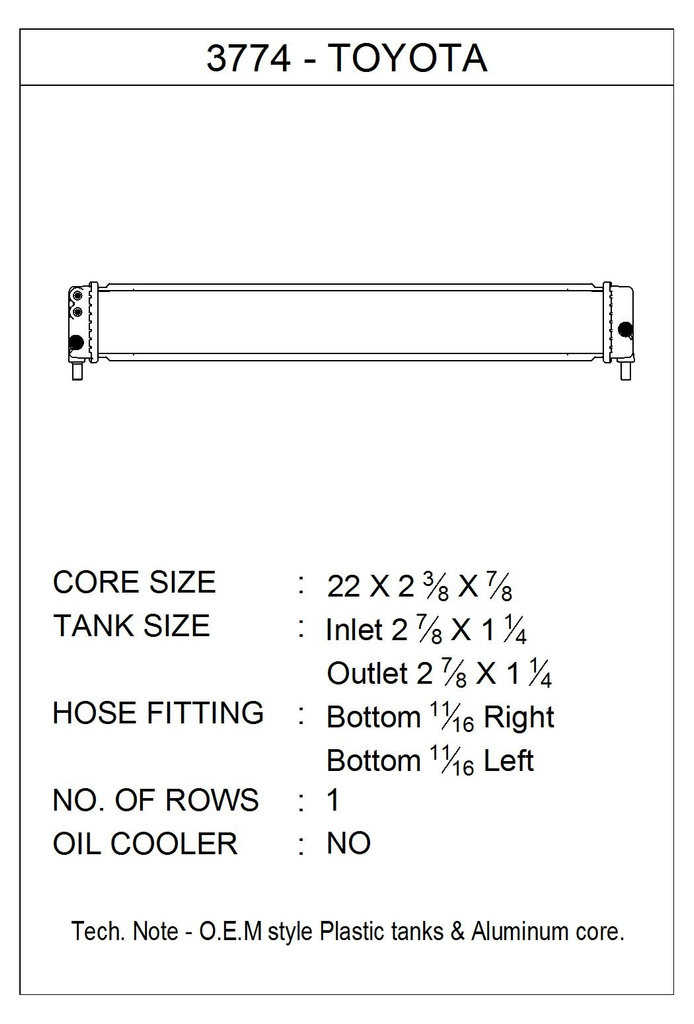

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3774
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 11/16 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 11/16 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 23-9/16 Inch
• Core Height (IN): 2-3/8 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2010-2015 Toyota Prius
• 2012-2015 Toyota Prius Plug-In
