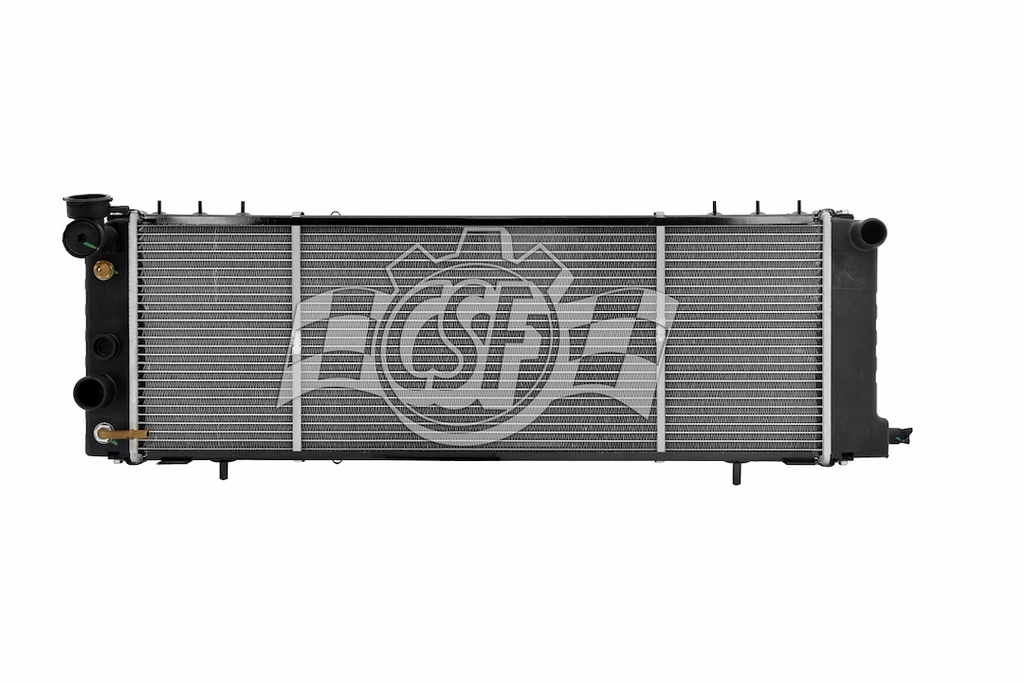

CSF Radiator (MPN: 3251)

High performance aluminum radiator with advanced cooling technology.

The CSF Radiator features a robust aluminum core with plastic tanks, designed for efficient heat dissipation and durability. With core dimensions of 31 inches in length, 10-15/16 inches in height, and 1-1/4 inches in depth, this single-row crossflow radiator is engineered to meet OEM specifications. It includes a high-performance transmission cooler and an engine oil cooler, ensuring optimal engine temperature management under various operating conditions.

Constructed with virgin grade engineered plastic resins, the tanks are glass-filled for enhanced strength and longevity. The radiator is equipped with special grade EPDM rubber gaskets that can withstand extreme temperatures, making it suitable for a wide range of applications. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. This radiator is designed to provide superior cooling efficiency, making it a critical component for maintaining engine performance. The innovative multi-louvered fin design further enhances airflow, contributing to effective heat transfer and cooling efficiency.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

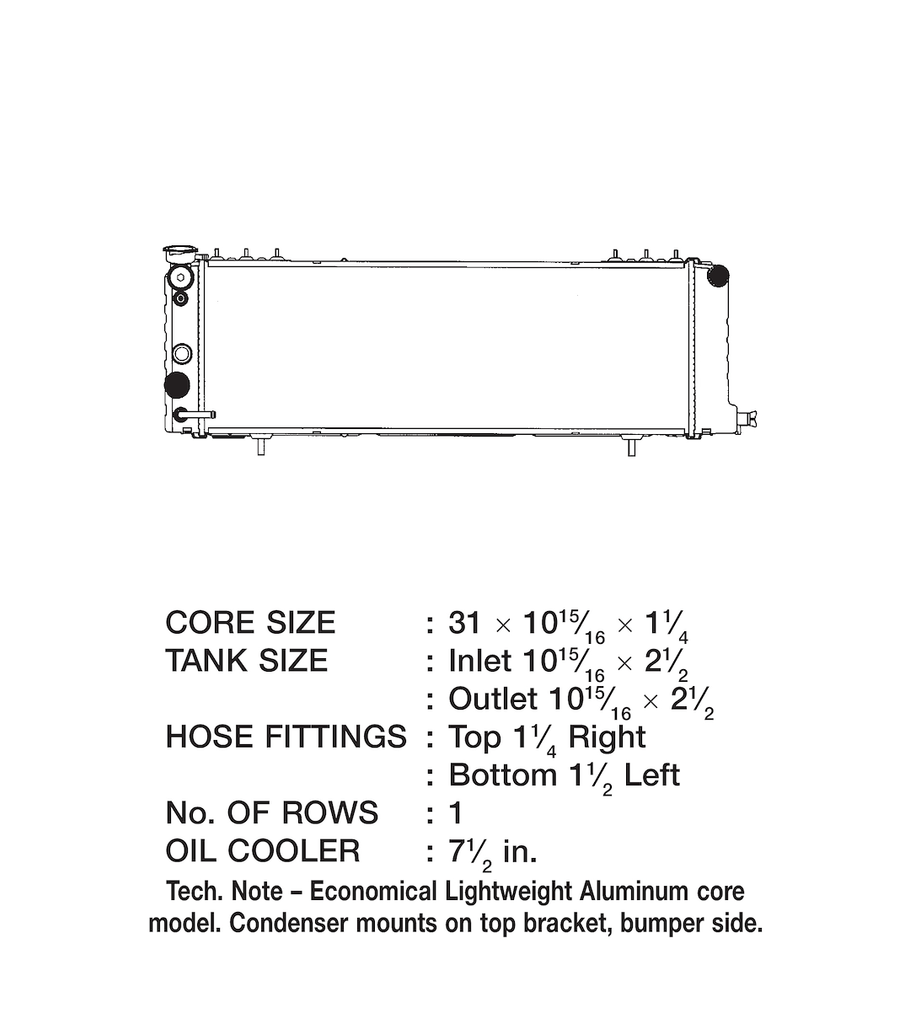

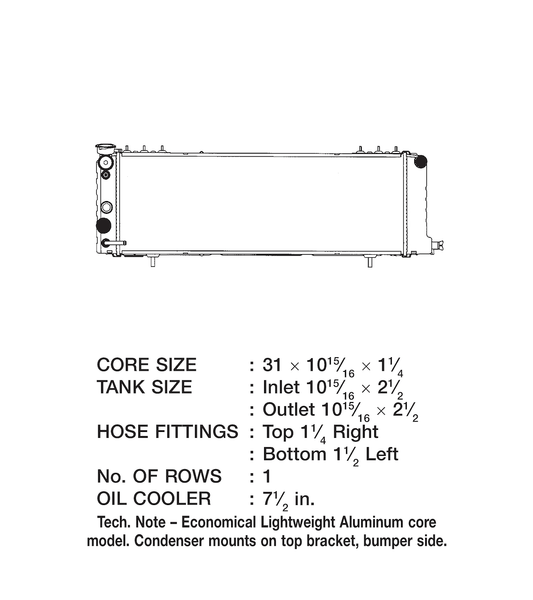

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3251
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-1/4 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-1/2 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 31 Inch
• Core Height (IN): 10-15/16 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 1991-2001 Jeep Cherokee
