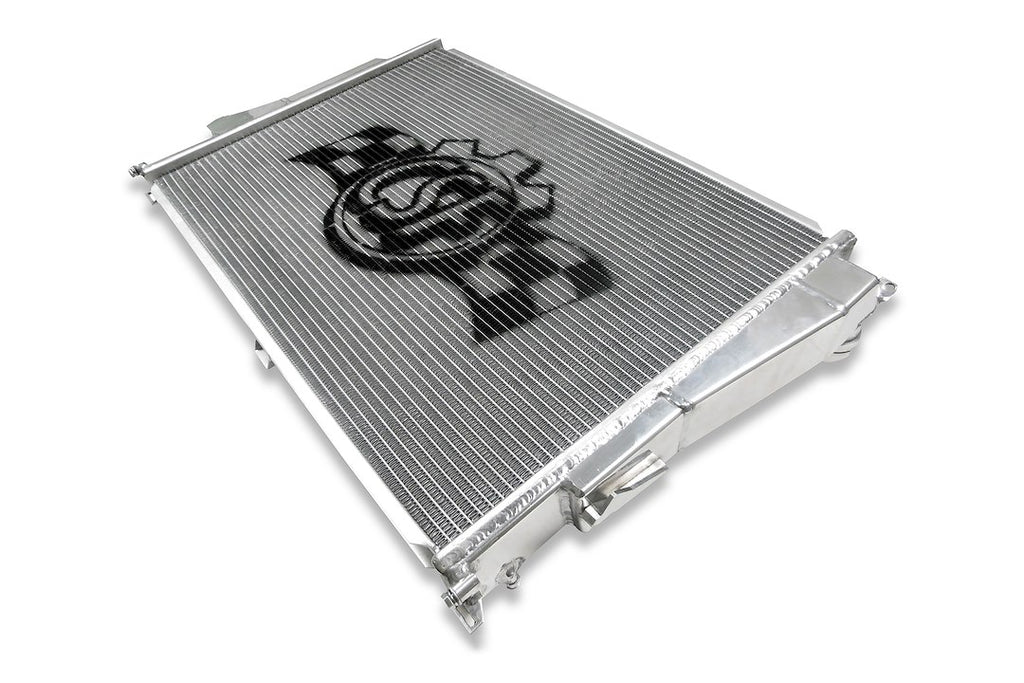

CSF High Performance Radiator (MPN: 7058)

Advanced cooling technology for optimal engine performance and efficiency.

CSF is recognized for manufacturing high performance radiators that utilize innovative tube and fin technologies. The radiator features a unique 'B-tube' design, which enhances airflow and heat dissipation compared to traditional 'O' type tubes. This design allows for a thinner and lighter aluminum construction, improving cooling efficiency while maintaining structural integrity. The dual liquid laminar flow capability of the 'B-tubes' increases the heat transfer surface area by approximately 15 percent, optimizing the radiator's performance within the same spatial constraints.

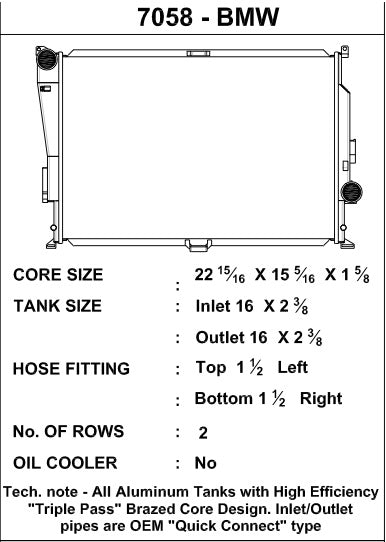

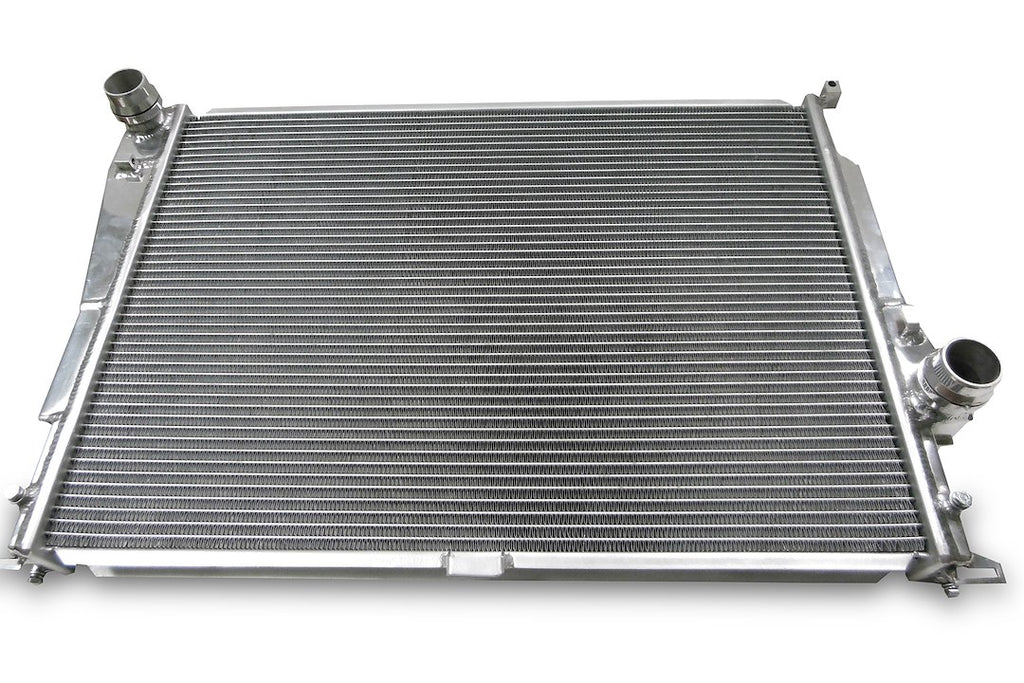

The radiator is constructed with two rows and is designed for crossflow and triple pass flow direction. It includes a top left inlet and a bottom right outlet, both sized at 1-1/2 inches. The overall dimensions of the core are 22-15/16 inches in length, 15-5/16 inches in height, and 1-5/8 inches in depth. Each unit is finished with a hand polished 'Sho-Stopper mirror finish', ensuring a sleek appearance while enhancing durability. CSF's commitment to quality is evident in their rigorous testing methods, making this radiator a reliable choice for those seeking enhanced engine cooling solutions.

Features

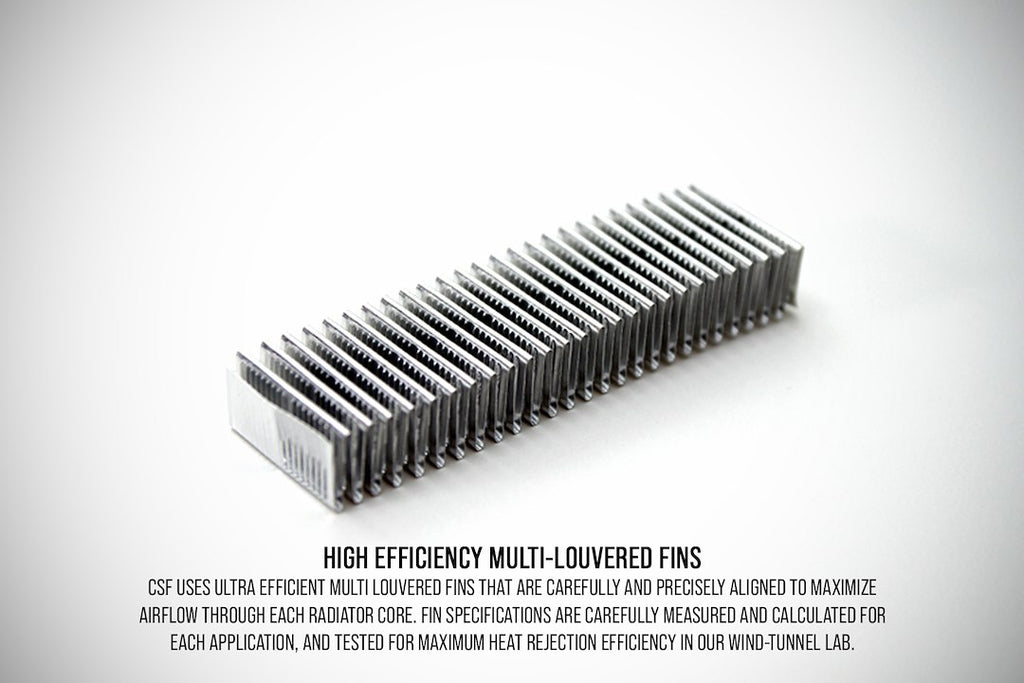

• Innovative Tube And Fin Technologies With Industry Leading Testing Methods To Maximize Airflow And Heat Dissipation

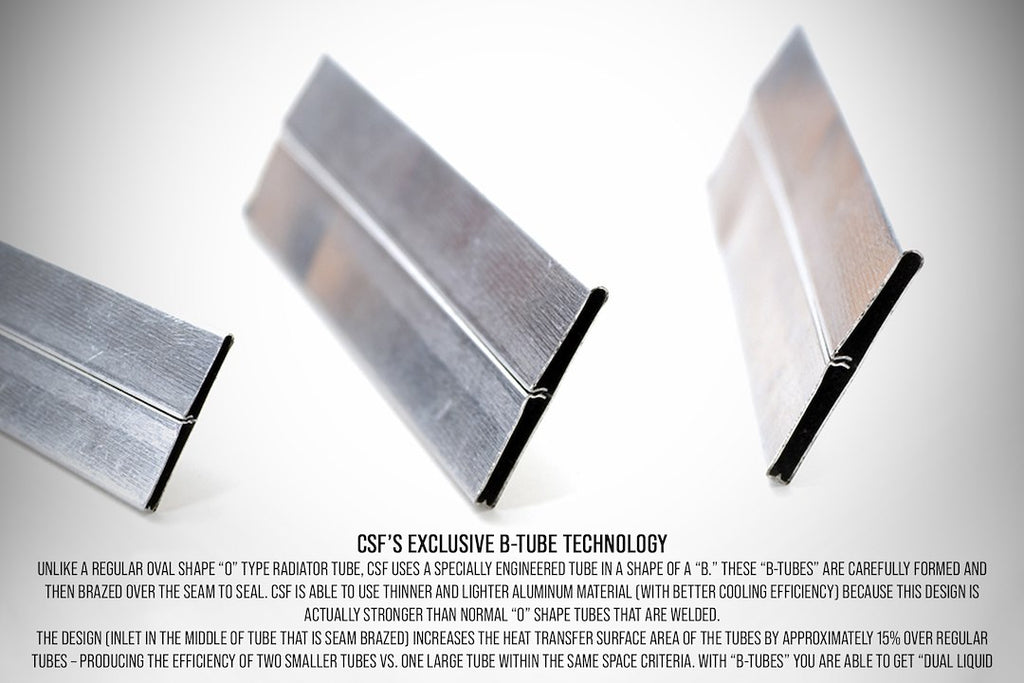

• Specially Engineered Tube In A Shape Of A "B". These "B-Tubes" Are Carefully Formed And Then Brazed Over The Seam To Seal
• Thinner And Lighter Aluminum Material (Better Cooling Efficiency) Because This Design Is Actually Stronger Than Normal "O" Shape Tubes That Are Welded
• Special "B-Tube" Technology In Place Of Traditional "O" Type Tubes For Higher Efficiency And Added Strength
• With "B-Tubes" You Are Able To Get "Dual Liquid Laminar Flow"
• Completed With An Industry Leading 1 Hour, Hand Polished “Sho-Stopper Mirror Finish”

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7058
• Flow Direction: Cross Flow/ Triple Pass
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum

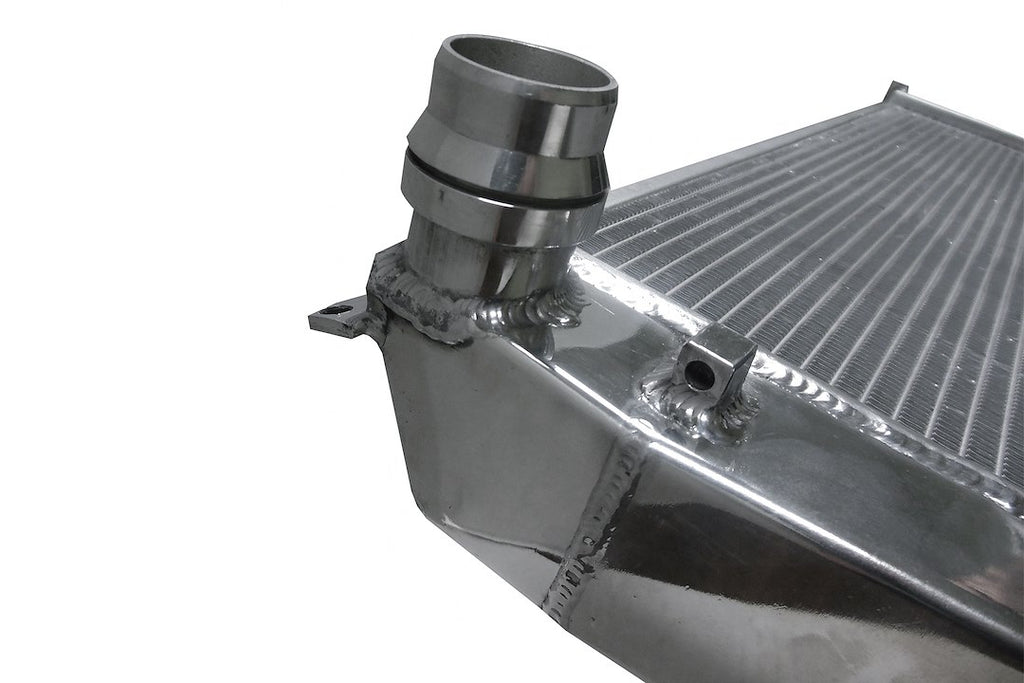

• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/2 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 22-15/16 Inch
• Core Height (IN): 15-5/16 Inch
• Core Depth (IN): 1-5/8 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: Yes

Compatibility / Fit

• 2001-2006 BMW M3
