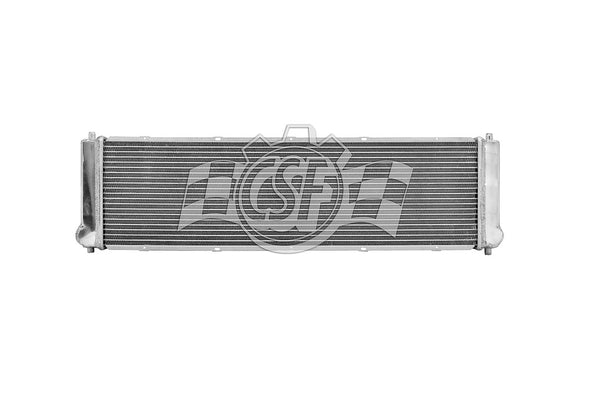

CSF High Performance Radiator (MPN: 7053)

Advanced cooling technology for optimal engine performance and efficiency.

CSF is recognized for manufacturing high performance radiators that utilize innovative tube and fin technologies. This radiator features a unique 'B-tube' design, which enhances airflow and heat dissipation compared to traditional 'O' type tubes. The specially engineered 'B-tubes' allow for a dual liquid laminar flow, increasing the heat transfer surface area by approximately 15 percent, resulting in improved cooling efficiency within the same space constraints.

Constructed from thinner and lighter aluminum, this radiator not only provides better cooling performance but also maintains structural integrity, making it stronger than conventional welded tubes. The crossflow design and two-row configuration further optimize the cooling process, ensuring that your engine operates at its best.

Each CSF radiator is finished with a hand-polished 'Sho-Stopper mirror finish', reflecting the commitment to quality and performance. This radiator is designed without a transmission cooler, making it suitable for various applications where enhanced cooling is required without additional components. With its advanced engineering and materials, the CSF radiator stands out as a reliable choice for those seeking efficiency and durability.

Features

• Innovative Tube And Fin Technologies With Industry Leading Testing Methods To Maximize Airflow And Heat Dissipation
• Specially Engineered Tube In A Shape Of A "B". These "B-Tubes" Are Carefully Formed And Then Brazed Over The Seam To Seal
• Thinner And Lighter Aluminum Material (Better Cooling Efficiency) Because This Design Is Actually Stronger Than Normal "O" Shape Tubes That Are Welded
• Special "B-Tube" Technology In Place Of Traditional "O" Type Tubes For Higher Efficiency And Added Strength
• With "B-Tubes" You Are Able To Get "Dual Liquid Laminar Flow"
• Completed With An Industry Leading 1 Hour, Hand Polished “Sho-Stopper Mirror Finish”

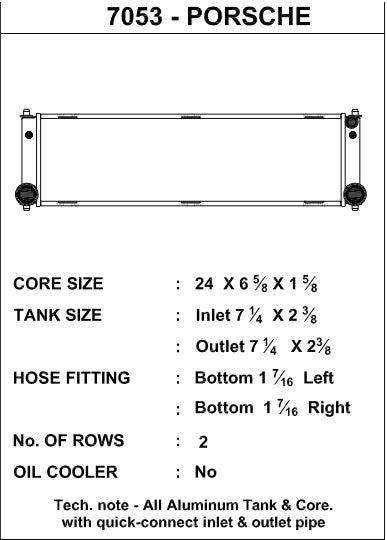

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7053
• Flow Direction: Cross Flow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Bottom Left
• Inlet Size (IN): 1-7/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-7/16 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 24 Inch
• Core Height (IN): 6-5/8 Inch
• Core Depth (IN): 1-5/8 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: Yes

Compatibility / Fit

• 1997-1997 Porsche 911
• 2001-2005 Porsche 911
• 2007-2011 Porsche 911
