CSF High Performance Radiator (MPN: 3055)

Advanced cooling technology for optimal engine performance and efficiency.

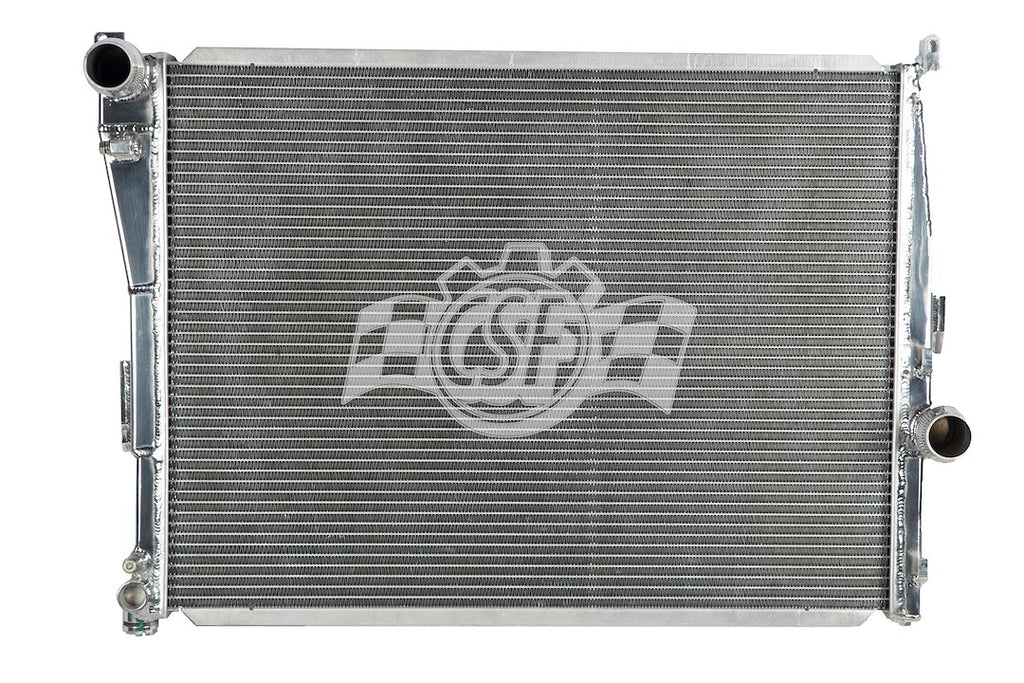

CSF High Performance Radiator is designed to meet the demands of modern automotive cooling systems. With core dimensions of 22-13/16 inches in length, 17-1/2 inches in height, and 1-5/8 inches in depth, this radiator features a two-row crossflow design made from lightweight aluminum. The innovative 'B-Tube' technology enhances airflow and heat dissipation, providing superior cooling efficiency compared to traditional radiators.

The radiator is equipped with a 1-1/2 inch top left inlet and a 1-1/2 inch bottom right outlet, ensuring compatibility with a wide range of vehicles. CSF's rigorous testing process guarantees that each radiator meets high standards for performance and durability. The hand-polished mirror finish not only enhances aesthetics but also contributes to the overall efficiency of the cooling system.

CSF radiators are engineered to replace original equipment with precision, utilizing advanced materials and construction techniques. The thinner and lighter aluminum design offers improved cooling efficiency while maintaining strength and reliability. This radiator is an essential component for maintaining optimal engine temperatures and performance.

Features

• Innovative Tube And Fin Technologies With Industry Leading Testing Methods To Maximize Airflow And Heat Dissipation
• Specially Engineered Tube In A Shape Of A "B", These "B-Tubes" Are Carefully Formed And Then Brazed Over The Seam To Seal
• Thinner And Lighter Aluminum Material (Better Cooling Efficiency) Because This Design Is Actually Stronger Than Normal "O" Shape Tubes That Are Welded
• Special "B-Tube" Technology In Place Of Traditional "O" Type Tubes For Higher Efficiency And Added Strength
• Features "B-Tubes" You Are Able To Get "Dual Liquid Laminar Flow"
• Completed With An Industry Leading 1 Hour, Hand Polished "Sho-Stopper Mirror Finish"

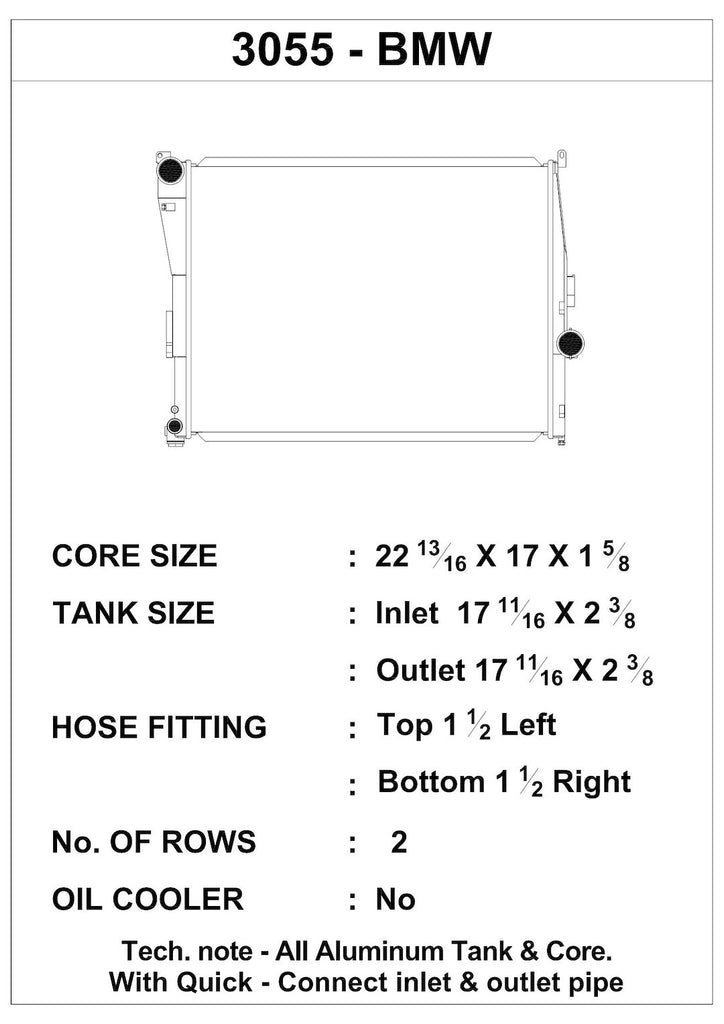

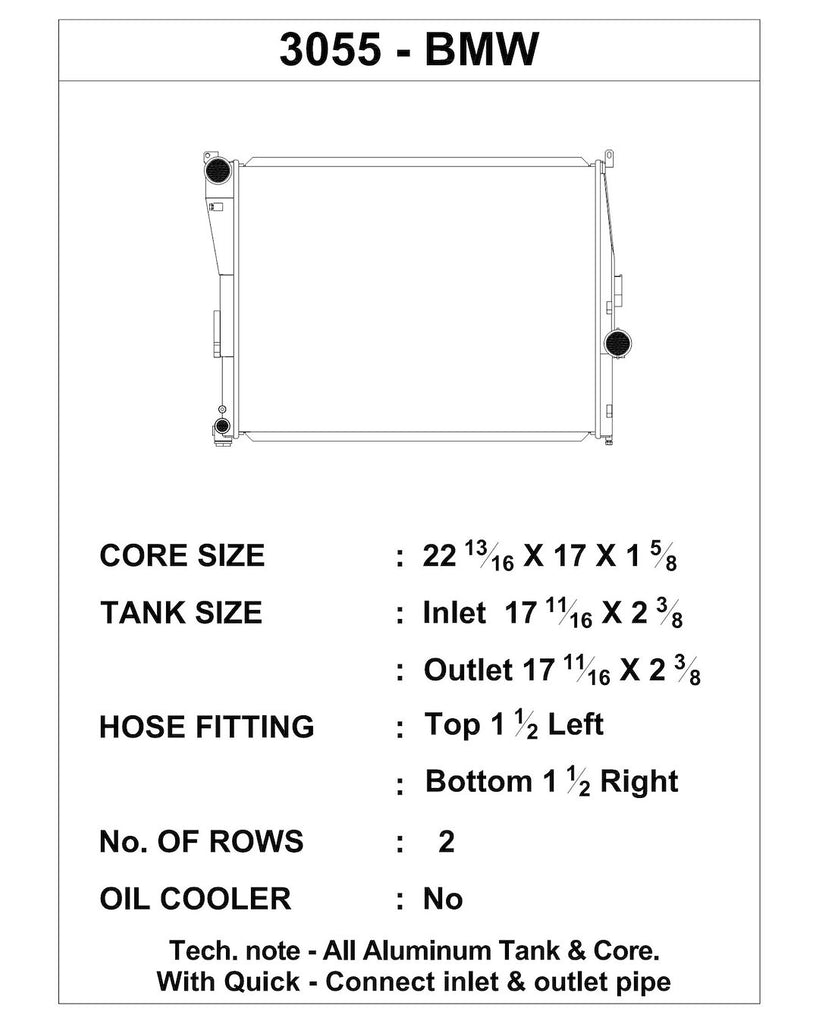

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3055
• Flow Direction: Cross Flow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/2 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 22-13/16 Inch
• Core Height (IN): 17-1/2 Inch
• Core Depth (IN): 1-5/8 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: Yes

Compatibility / Fit

• 2000-2000 BMW 323Ci
• 1999-2000 BMW 323i
• 1999-1999 BMW 323is
• 2001-2005 BMW 325Ci
• 2001-2005 BMW 325i
• 2001-2005 BMW 325xi
• 2000-2000 BMW 328Ci
• 1999-2000 BMW 328i
• 1999-1999 BMW 328is
• 2001-2005 BMW 330Ci
• 2001-2005 BMW 330i
• 2001-2005 BMW 330xi
• 2003-2005 BMW Z4
