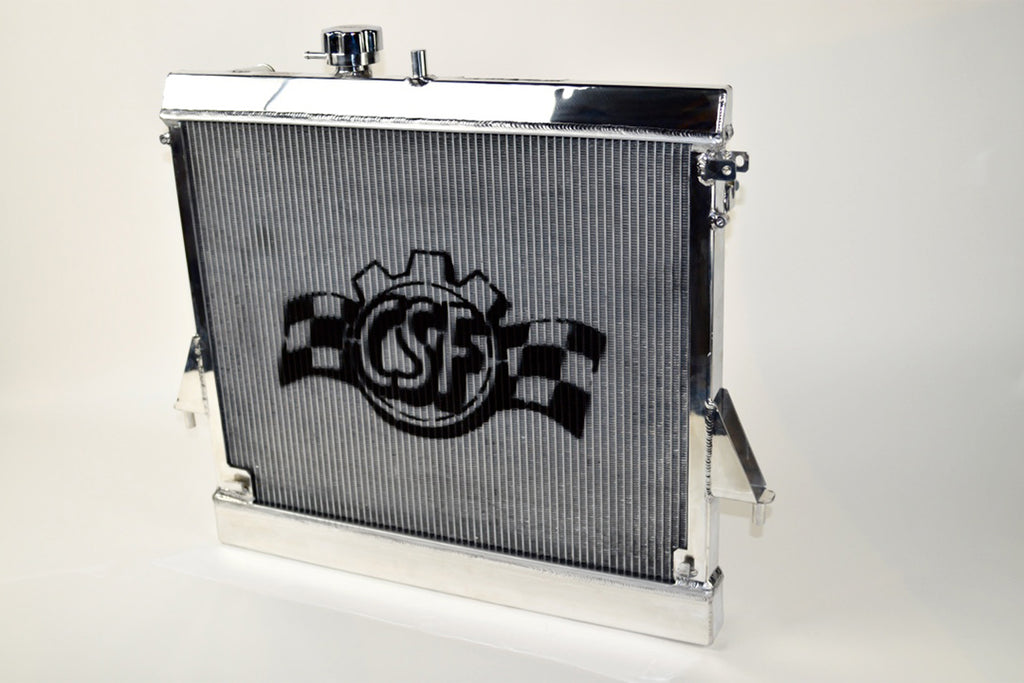

CSF High Performance Aluminum Radiator (MPN: 7061)

Advanced cooling technology for optimal engine performance and efficiency.

CSF is recognized for manufacturing high performance radiators that utilize innovative tube and fin technologies. The unique design features specially engineered 'B-tubes' that enhance airflow and heat dissipation, providing superior cooling efficiency compared to traditional 'O' type tubes. This design allows for a thinner and lighter aluminum construction, which is not only more efficient but also stronger, ensuring durability under demanding conditions.

The 'B-tube' technology facilitates dual liquid laminar flow, increasing the heat transfer surface area by approximately 15 percent. This results in improved cooling performance while maintaining the same space criteria. Each radiator is finished with a hand polished 'Sho-Stopper mirror finish', reflecting CSF's commitment to quality and performance.

Designed for downflow applications, this radiator is equipped with a transmission cooler and includes a radiator cap. The overall construction and materials used in CSF radiators are aimed at maximizing engine performance and longevity, making it a reliable choice for automotive enthusiasts and professionals alike.

Features

• Innovative Tube And Fin Technologies With Industry Leading Testing Methods To Maximize Airflow And Heat Dissipation
• Specially Engineered Tube In A Shape Of A "B". These "B-Tubes" Are Carefully Formed And Then Brazed Over The Seam To Seal
• Thinner And Lighter Aluminum Material (Better Cooling Efficiency) Because This Design Is Actually Stronger Than Normal "O" Shape Tubes That Are Welded
• Special "B-Tube" Technology In Place Of Traditional "O" Type Tubes For Higher Efficiency And Added Strength
• With "B-Tubes" You Are Able To Get "Dual Liquid Laminar Flow"
• Completed With An Industry Leading 1 Hour, Hand Polished “Sho-Stopper Mirror Finish”

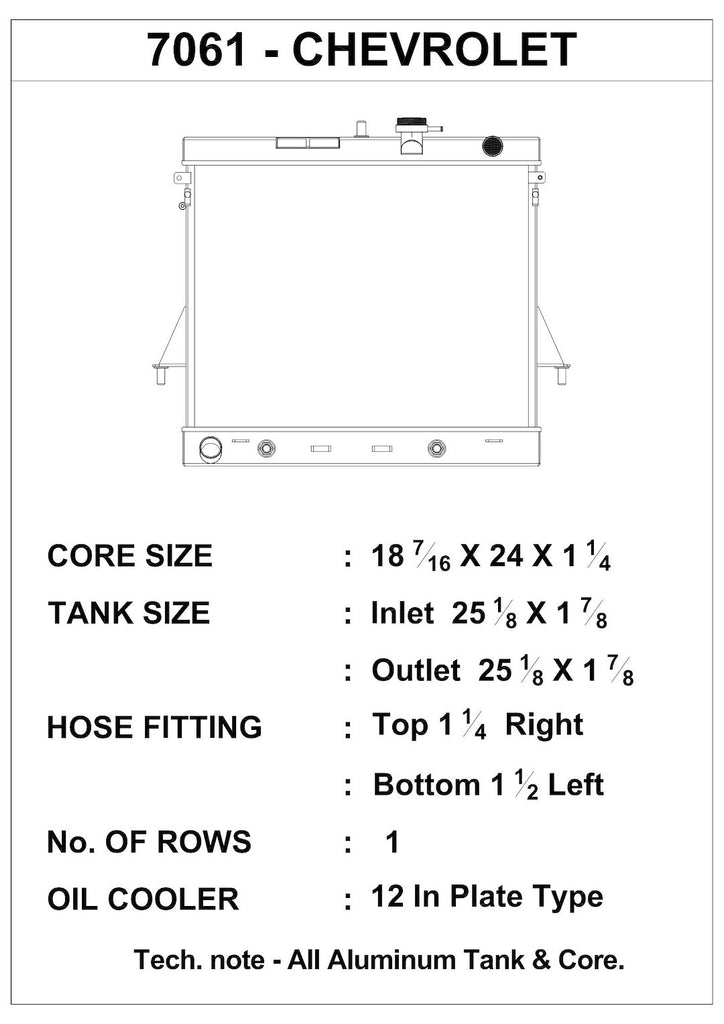

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7061
• Flow Direction: Down Flow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-1/4 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-1/2 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 18-7/16 Inch
• Core Height (IN): 24 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Aluminum

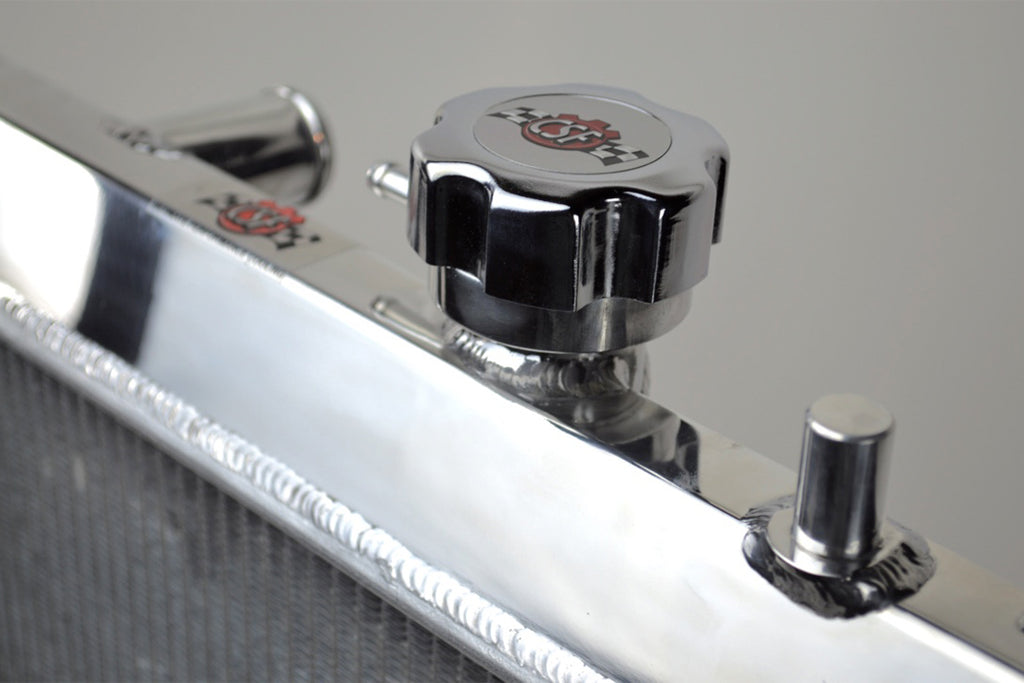

• With Radiator Cap: Yes
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2006-2010 Hummer H3
• 2009-2010 Hummer H3T
