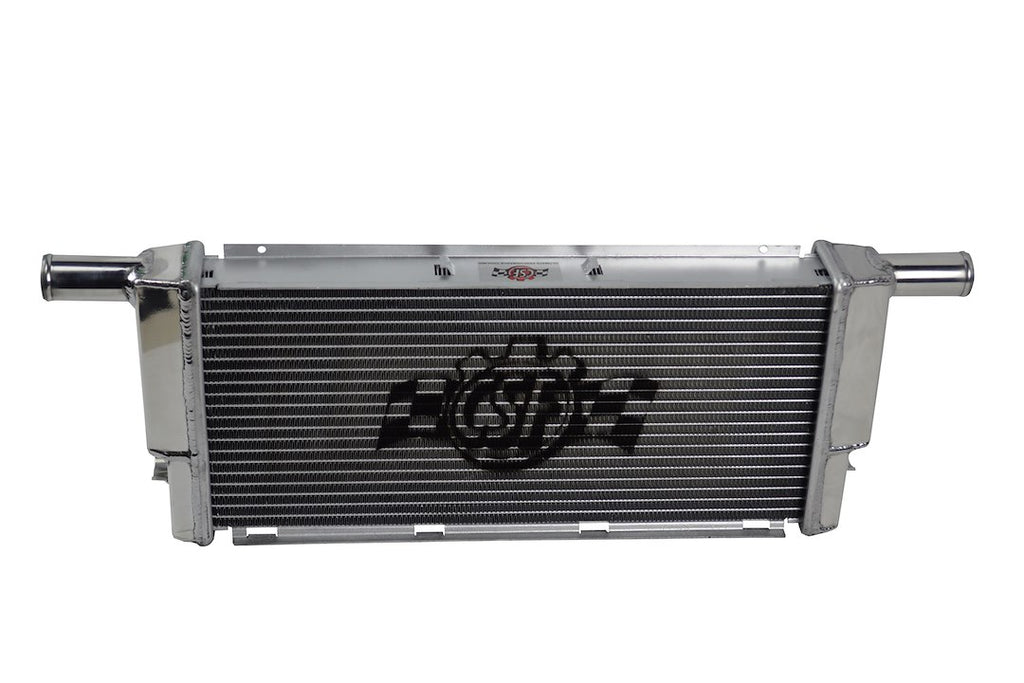

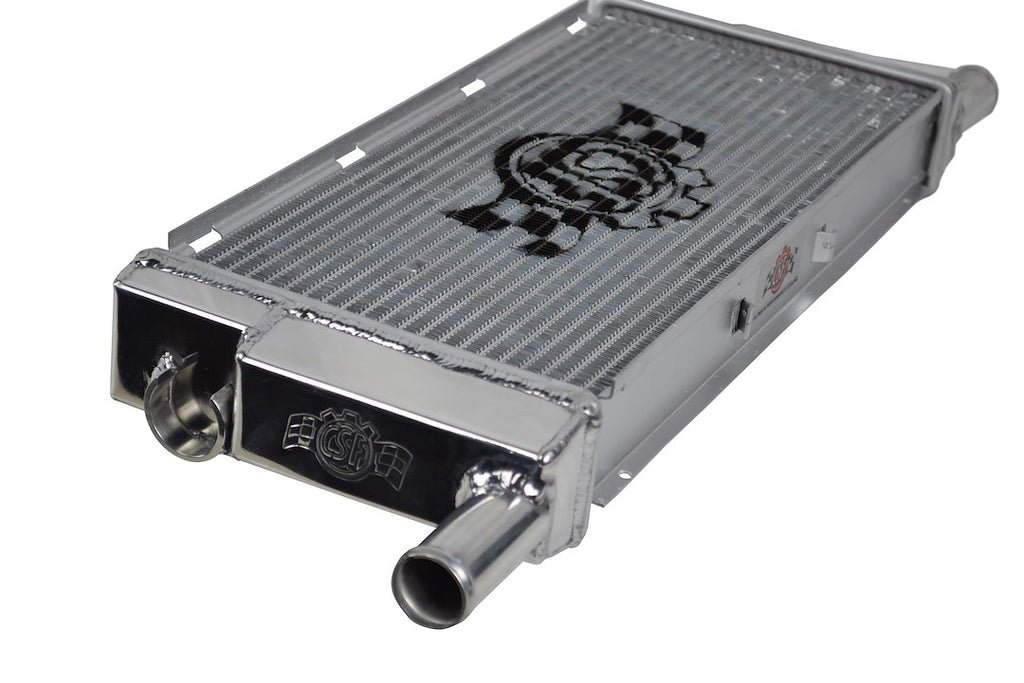

CSF High Performance Aluminum Radiator (MPN: 7060)

Advanced cooling technology for optimal heat dissipation and airflow.

CSF is recognized for manufacturing high performance radiators that utilize innovative tube and fin technologies. The unique design features specially engineered 'B-tubes' that enhance airflow and heat dissipation compared to traditional oval 'O' type tubes. This design allows for a thinner and lighter aluminum construction, which improves cooling efficiency while maintaining structural integrity. The 'B-tube' design increases the heat transfer surface area by approximately 15 percent, facilitating dual liquid laminar flow for superior cooling performance.

Each radiator is meticulously crafted with a hand polished 'Sho-Stopper mirror finish' that not only enhances aesthetics but also contributes to the overall efficiency of the unit. The crossflow design and two-row core configuration ensure optimal performance in various applications. CSF's commitment to quality is evident in their rigorous testing methods, ensuring that each radiator meets industry standards for performance and durability. This radiator is designed without a transmission cooler, making it suitable for specific applications where additional cooling is not required.

Features

• Innovative Tube And Fin Technologies With Industry Leading Testing Methods To Maximize Airflow And Heat Dissipation
• Specially Engineered Tube In A Shape Of A "B". These "B-Tubes" Are Carefully Formed And Then Brazed Over The Seam To Seal
• Thinner And Lighter Aluminum Material (Better Cooling Efficiency) Because This Design Is Actually Stronger Than Normal "O" Shape Tubes That Are Welded
• Special "B-Tube" Technology In Place Of Traditional "O" Type Tubes For Higher Efficiency And Added Strength
• With "B-Tubes" You Are Able To Get "Dual Liquid Laminar Flow"
• Completed With An Industry Leading 1 Hour, Hand Polished “Sho-Stopper Mirror Finish”

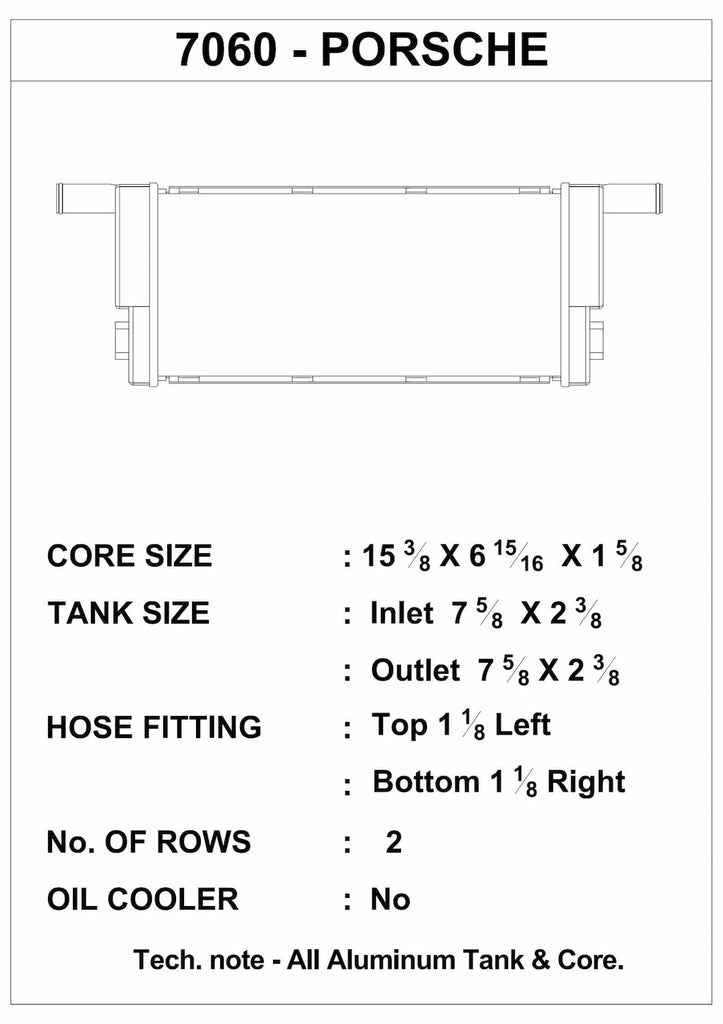

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7060
• Flow Direction: Cross Flow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/8 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 15-3/8 Inch
• Core Height (IN): 6-15/16 Inch
• Core Depth (IN): 1-5/8 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: Yes

Compatibility / Fit

• 2012-2015 Porsche Boxster
• 2014-2016 Porsche Cayman
