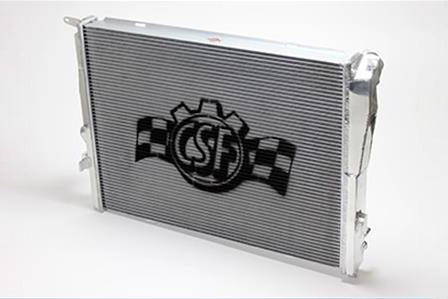

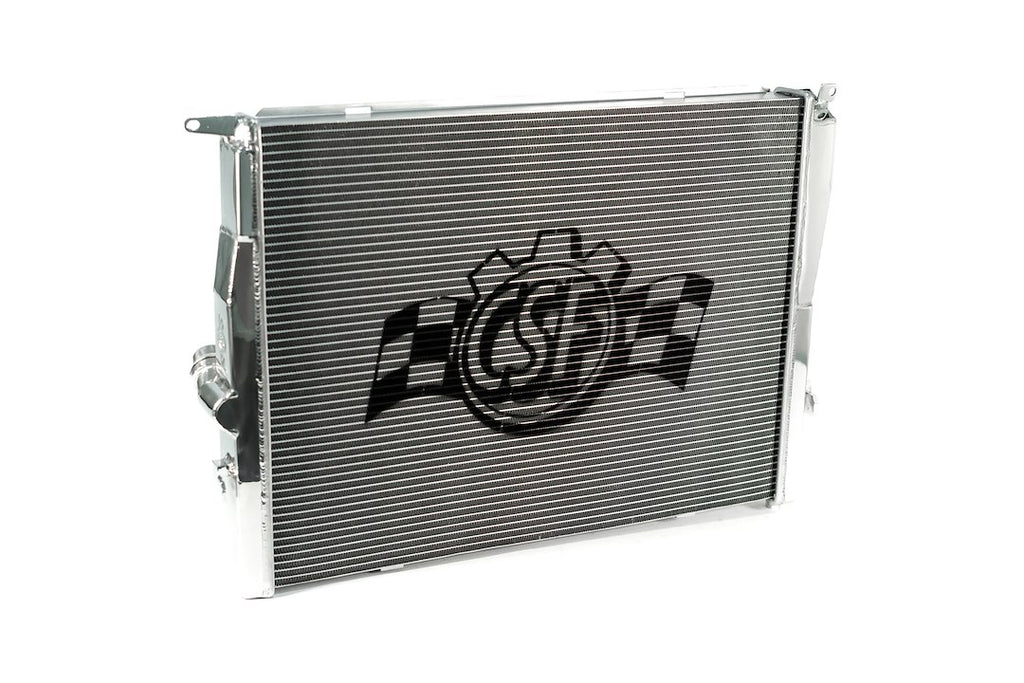

CSF High Performance Aluminum Radiator (MPN: 7059)

Advanced cooling technology for enhanced airflow and heat dissipation.

CSF is recognized for manufacturing high performance radiators that utilize innovative tube and fin technologies. The unique design features specially engineered 'B-tubes' that enhance airflow and heat dissipation compared to traditional oval 'O' type tubes. This design allows for a thinner and lighter aluminum construction, which improves cooling efficiency while maintaining strength. The 'B-tube' technology facilitates dual liquid laminar flow, optimizing the radiator's performance in various applications.

Each CSF radiator undergoes rigorous testing to ensure maximum efficiency and durability. The incorporation of 'B-tubes' increases the heat transfer surface area by approximately 15 percent, allowing for superior cooling capabilities within the same spatial constraints. Additionally, the radiators are finished with a hand-polished 'Sho-Stopper mirror finish' that not only enhances aesthetics but also contributes to the overall performance by reducing surface imperfections that can impede airflow.

Designed for crossflow and triple pass flow direction, this radiator is suitable for a variety of vehicles. It features a two-row core configuration made from high-quality aluminum, ensuring longevity and reliability. The inlet and outlet sizes are standardized at 1-1/2 inches, making it compatible with many existing systems. CSF's commitment to quality and performance makes this radiator a valuable component for any cooling system.

Features

• Innovative Tube And Fin Technologies With Industry Leading Testing Methods To Maximize Airflow And Heat Dissipation
• Specially Engineered Tube In A Shape Of A "B". These "B-Tubes" Are Carefully Formed And Then Brazed Over The Seam To Seal
• Thinner And Lighter Aluminum Material (Better Cooling Efficiency) Because This Design Is Actually Stronger Than Normal "O" Shape Tubes That Are Welded
• Special "B-Tube" Technology In Place Of Traditional "O" Type Tubes For Higher Efficiency And Added Strength
• With "B-Tubes" You Are Able To Get "Dual Liquid Laminar Flow"
• Completed With An Industry Leading 1 Hour, Hand Polished “Sho-Stopper Mirror Finish”

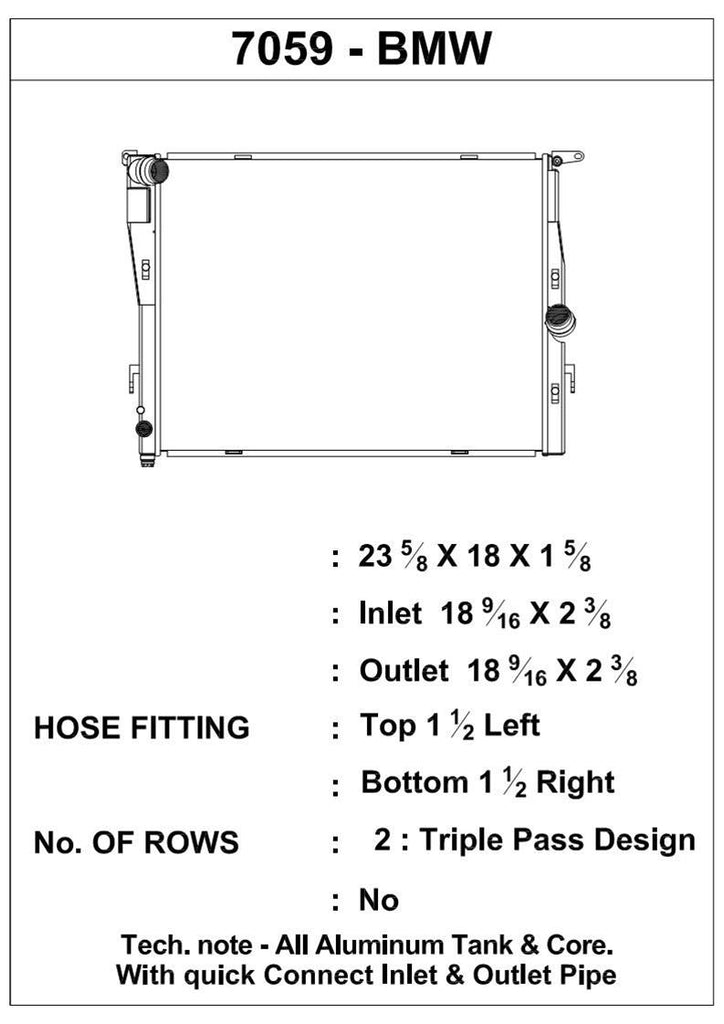

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7059
• Flow Direction: Cross Flow/ Triple Pass
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/2 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 23-5/8 Inch
• Core Height (IN): 18 Inch
• Core Depth (IN): 1-5/8 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2008-2013 BMW M3
