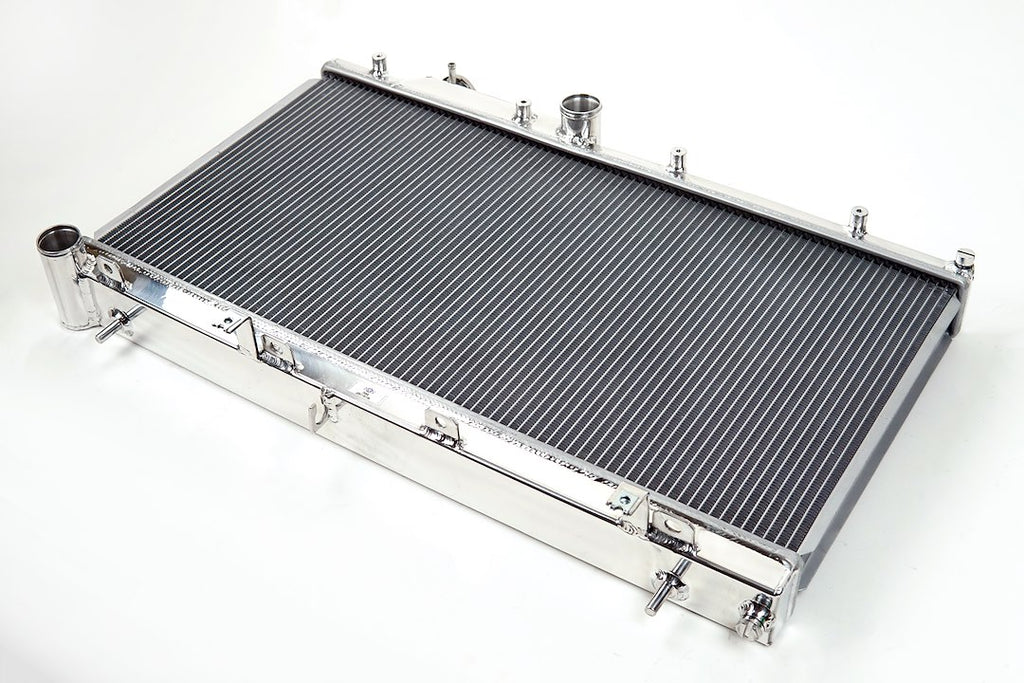

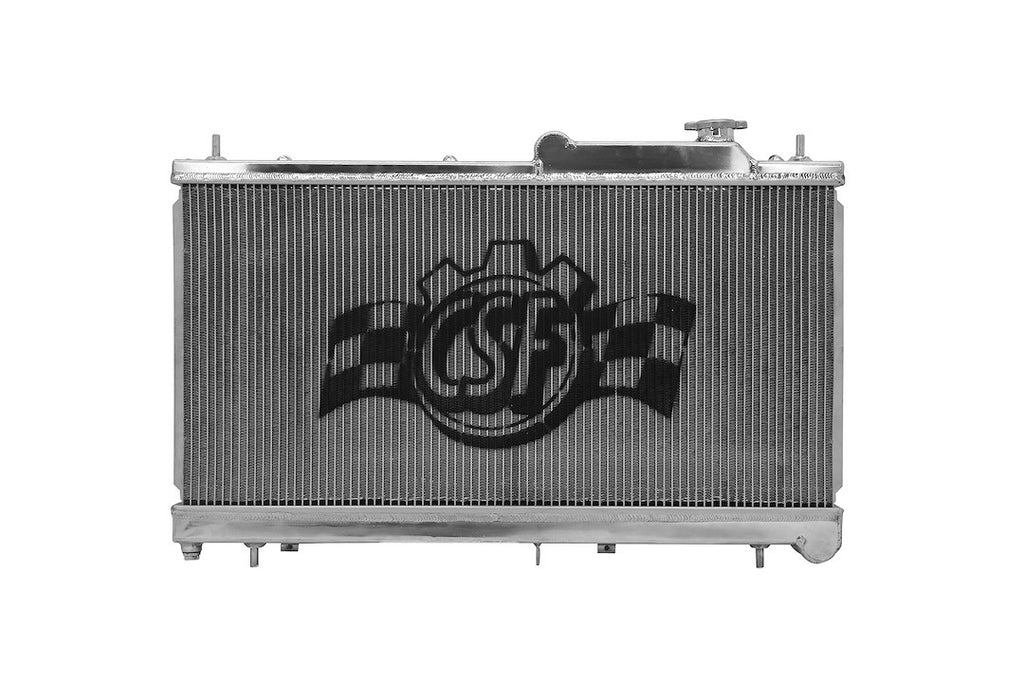

CSF Aluminum Radiator (MPN: 7094)

High-performance cooling solution with advanced technology and design.

The CSF Aluminum Radiator is engineered for optimal cooling efficiency in automotive applications. With core dimensions of 27-1/16 inches in length, 13-7/16 inches in height, and a depth of 1-1/4 inches, this single-row radiator is designed to fit seamlessly into a variety of vehicles. Constructed from 100 percent all-aluminum with TIG-welded seams, it ensures durability and longevity under demanding conditions.

This radiator features CSF's exclusive B-Tube technology, which enhances fluid flow and cooling performance. The core is equipped with ultra-efficient 6.5mm tall fins that utilize a multi-louvered design to maximize surface area contact, further improving heat dissipation. Additionally, the radiator includes a unique "Multi-Fit" combo pipe and plug design, making installation straightforward without the need for modifications.

Individually leak and pressure tested, the CSF Aluminum Radiator guarantees reliability and performance. It comes polished to a mirror finish, providing an aesthetically pleasing look while maintaining functionality. With a true drop-in fit and included fittings, this radiator is a practical choice for those seeking a high-quality aftermarket replacement.

Features

• 100 Percent All-Aluminum TIG-Welded Construction
• High-Performance Core Features CSF’s Exclusive B-Tube Technology
• Core Featured Ultra Efficient 6.5mm Tall Fins With A Multi-Louvered Design For Maximum Surface Area Contact
• CNC Machined Mounting Brackets

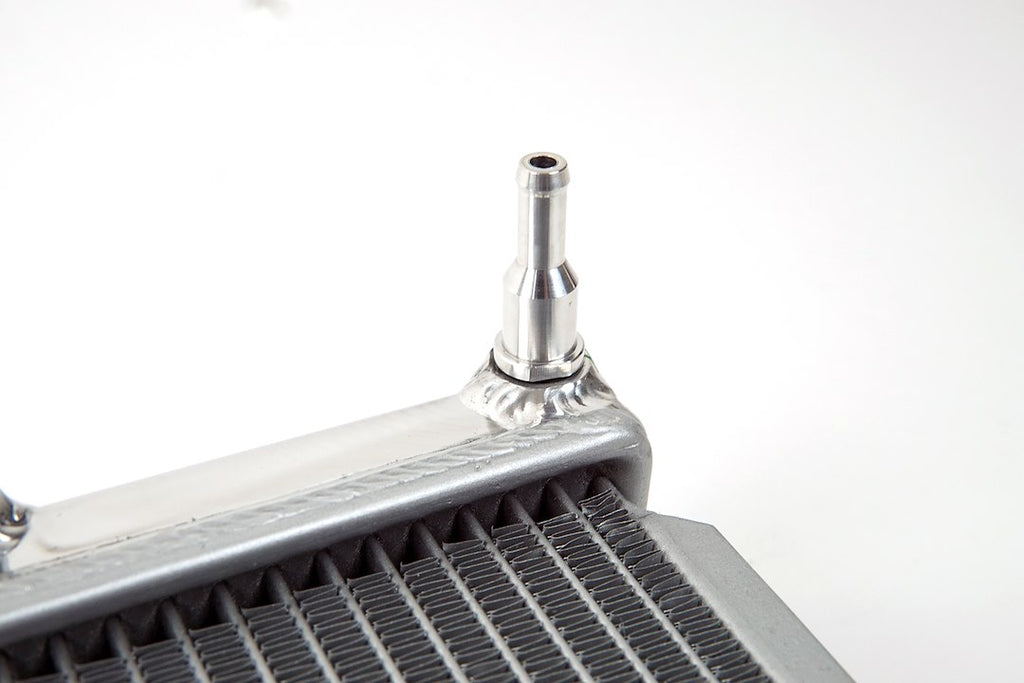

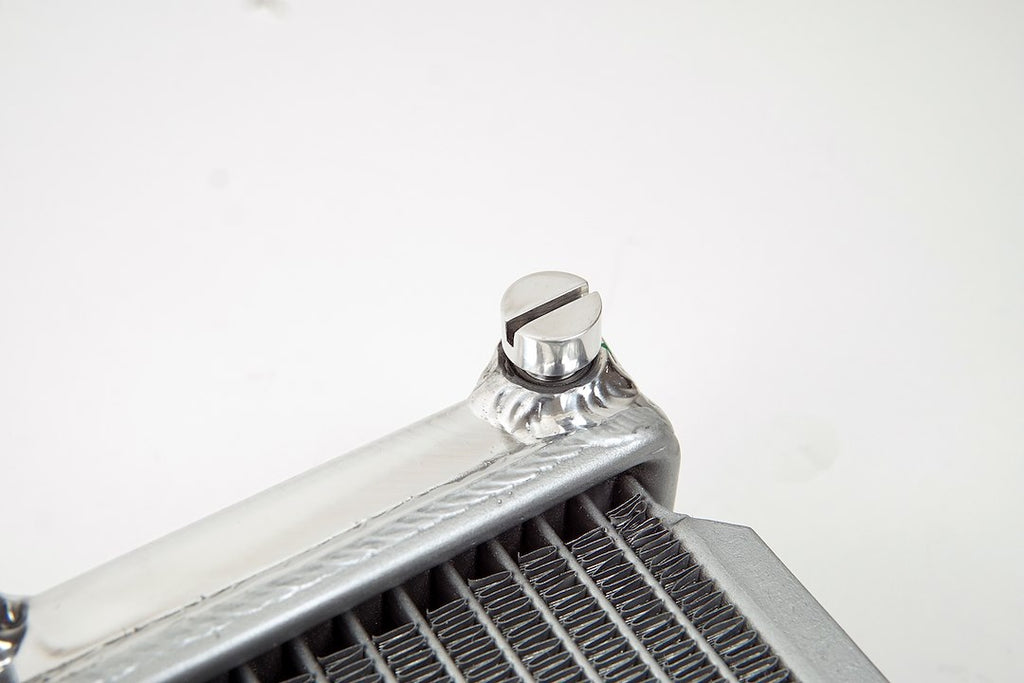

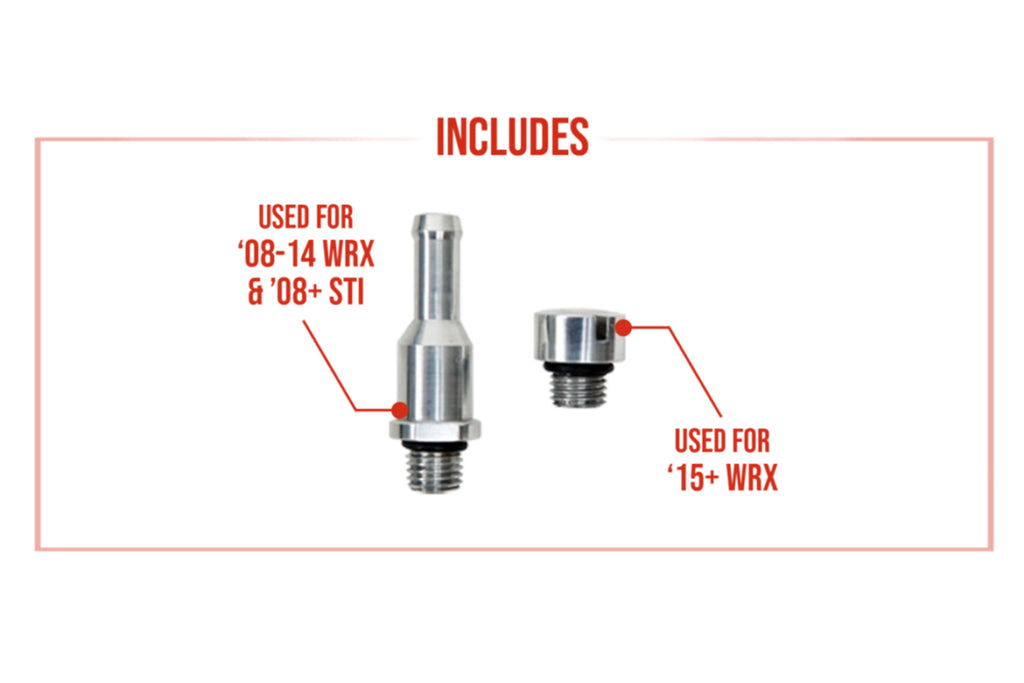

• Comes With Innovative “Multi-Fit” Combo Pipe And Plug Design
• Individually Leak And Pressure Tested
• 1 Hour “Mirror Finish” Hand Polish
• True “Drop-In Fit” Requires No Modifications To Install

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7094
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-9/16 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-9/16 Inch
• Finish: Polished
• Color: Silver
• Core Length (IN): 27-1/16 Inch
• Core Height (IN): 13-7/16 Inch
• Core Depth (IN): 1-1/4 Inch
• With Radiator Cap: Yes
• With Transmission Cooler: No
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2016-2017 Subaru Crosstrek
• 2009-2013 Subaru Forester
• 2008-2016 Subaru Impreza
• 2005-2009 Subaru Legacy
• 2005-2010 Subaru Outback
• 2015-2021 Subaru WRX
• 2015-2021 Subaru WRX STI
• 2013-2015 Subaru XV Crosstrek
