CSF Aluminum Radiator (MPN: 7036)

High performance aluminum radiator with advanced cooling technology.

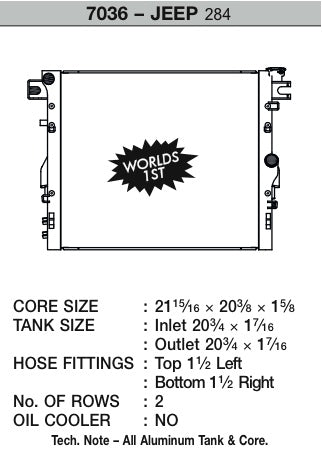

CSF Aluminum Radiator is designed to provide optimal cooling efficiency for a wide range of automotive applications. With overall dimensions of 26-15/16 inches in length and 20-3/4 inches in height, this radiator features a two-row core configuration that enhances heat dissipation. The core dimensions measure 21-15/16 inches in length, 20-3/8 inches in height, and 2-1/16 inches in depth, ensuring a robust performance under various driving conditions.

Constructed from high-quality aluminum, the radiator includes CNC machined brackets and fittings, along with B-Tube technology that maximizes fluid flow. The racing style aluminum drain plug and OE radial and deep drawn aluminum end tanks contribute to its durability and reliability. Each unit undergoes rigorous testing, including wind tunnel and burst pressure tests, to ensure it meets the highest industry standards for strength and cooling efficiency.

The CSF Aluminum Radiator is designed for a drop-in fitment, requiring no modifications during installation. It features a hand-polished mirror finish that not only enhances its aesthetic appeal but also provides additional corrosion protection. With a focus on performance and longevity, this radiator is an excellent choice for automotive enthusiasts seeking a reliable cooling solution.

Features

• CNC Machined Brackets And Fittings
• B-Tube Technology
• High Performance Multi-Louvered Fin
• Racing Style Aluminum Drain Plug
• OE Radial And Deep Drawn Aluminum End Tanks
• Wind Tunnel, Burst Pressure, And Vibration Testing
• Drop-In Fitment Requiring No Modifications
• 1 Hour Hand Polish Mirror Finish
• Wind Tunnel Tested For Optimal Radiator Core Cooling Efficiency. Burst Pressure And Impulse Cycle Tested For Strength. Salt Spray Tested For Corrosion Protection

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7036
• Flow Direction: Cross Flow
• Overall Length (IN): 26-15/16 Inch
• Overall Height (IN): 20-3/4 Inch
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/2 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 21-15/16 Inch
• Core Height (IN): 20-3/8 Inch
• Core Depth (IN): 2-1/16 Inch
• Tank Material: Aluminum
• With Radiator Cap: Yes
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2007-2010 Jeep Wrangler JK
