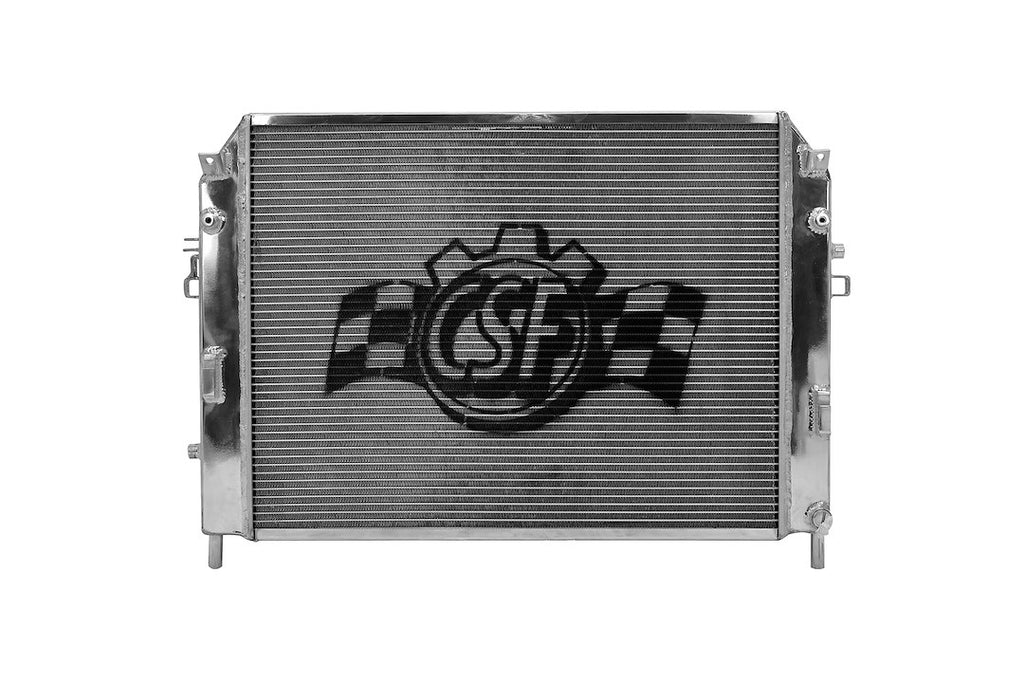

CSF Aluminum Radiator (MPN: 7015)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Aluminum Radiator is engineered to provide superior cooling performance for a wide range of automotive applications. With overall dimensions of 22-15/16 inches in length and 16-7/8 inches in height, this radiator features a single row core design that ensures efficient heat dissipation. Constructed from high-quality aluminum, it includes a top left inlet and a bottom right outlet, both measuring 1-1/8 inches, facilitating a straightforward installation without the need for modifications.

This radiator incorporates advanced features such as CNC machined brackets and fittings, B-Tube technology, and a high-performance multi-louvered fin design. The racing style aluminum drain plug and OE radial and deep drawn aluminum end tanks enhance durability and functionality. Each unit undergoes rigorous testing, including wind tunnel and burst pressure tests, to ensure optimal performance and reliability under various conditions.

CSF's commitment to quality is evident in the meticulous manufacturing process, which includes a one-hour hand polish for a mirror finish. The radiator is designed to withstand corrosion, thanks to salt spray testing, making it a robust choice for automotive cooling needs. With a drop-in fitment, this radiator is compatible with numerous vehicle models, providing a reliable solution for maintaining engine temperature.

Features

• CNC Machined Brackets And Fittings

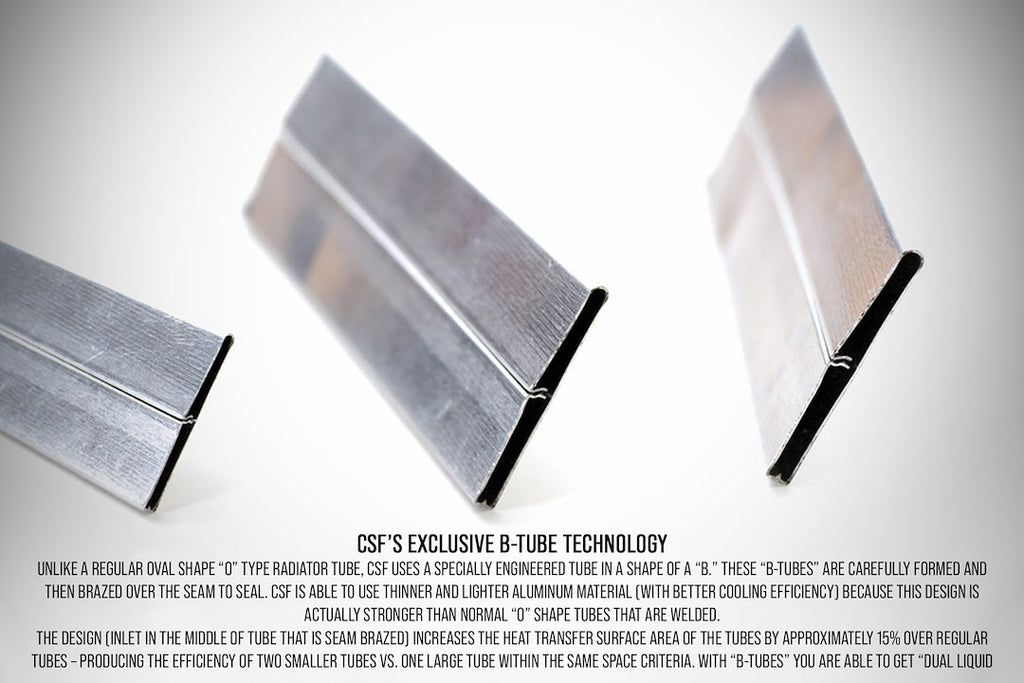

• B-Tube Technology

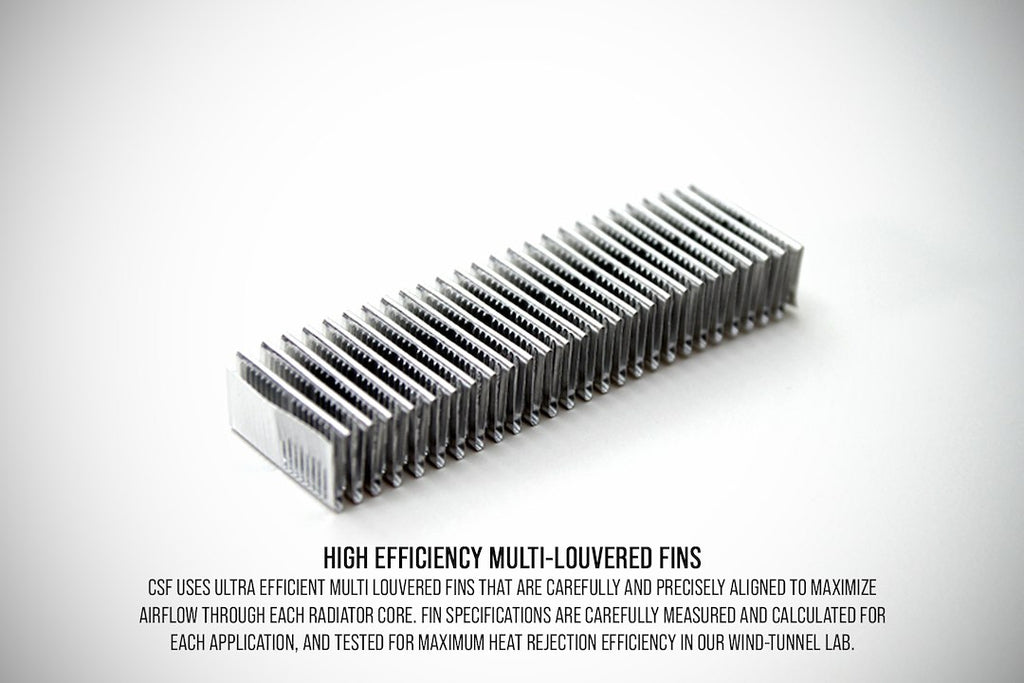

• High Performance Multi-Louvered Fin
• Racing Style Aluminum Drain Plug

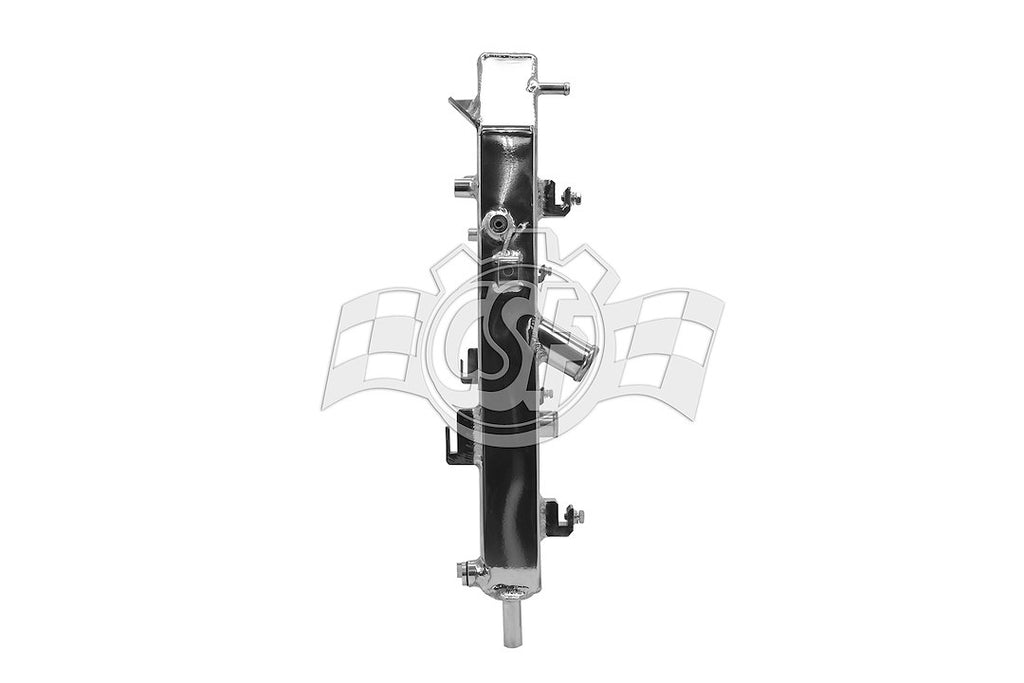

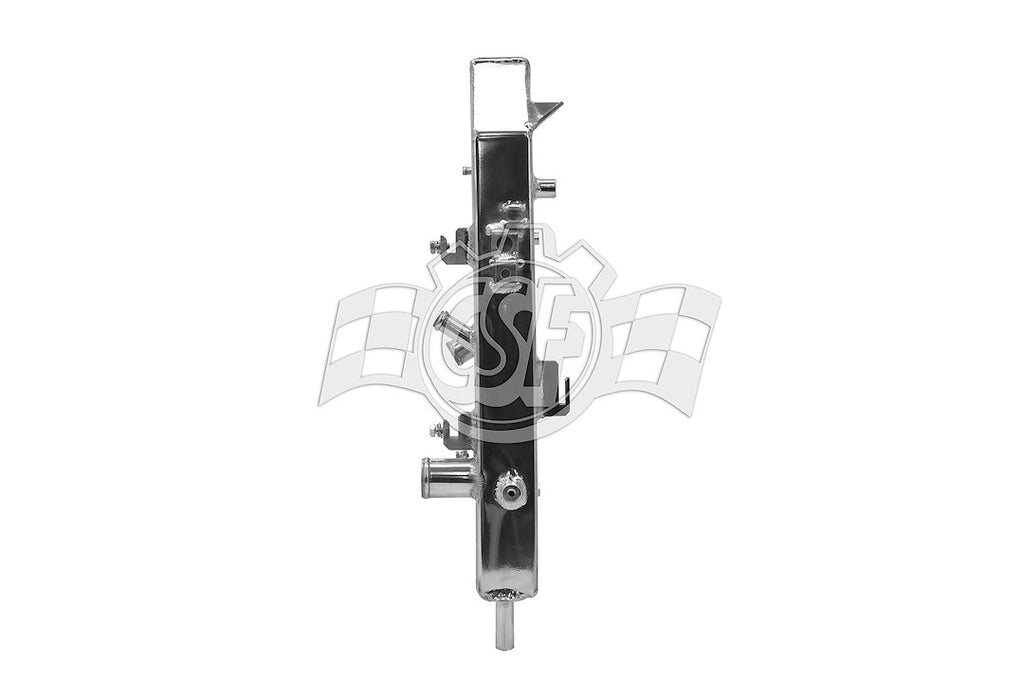

• OE Radial And Deep Drawn Aluminum End Tanks
• Wind Tunnel, Burst Pressure, And Vibration Testing
• Drop-In Fitment Requiring No Modifications
• 1 Hour Hand Polish Mirror Finish
• Wind Tunnel Tested For Optimal Radiator Core Cooling Efficiency. Burst Pressure And Impulse Cycle Tested For Strength. Salt Spray Tested For Corrosion Protection

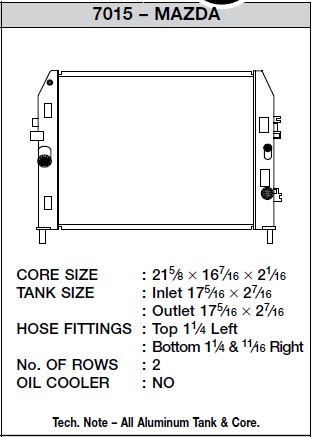

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 7015
• Flow Direction: Down Flow
• Overall Length (IN): 22-15/16 Inch
• Overall Height (IN): 16-7/8 Inch
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/8 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 22 Inch
• Core Height (IN): 13-3/4 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Aluminum
• With Radiator Cap: Yes
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2006-2010 Mazda MX-5 Miata
