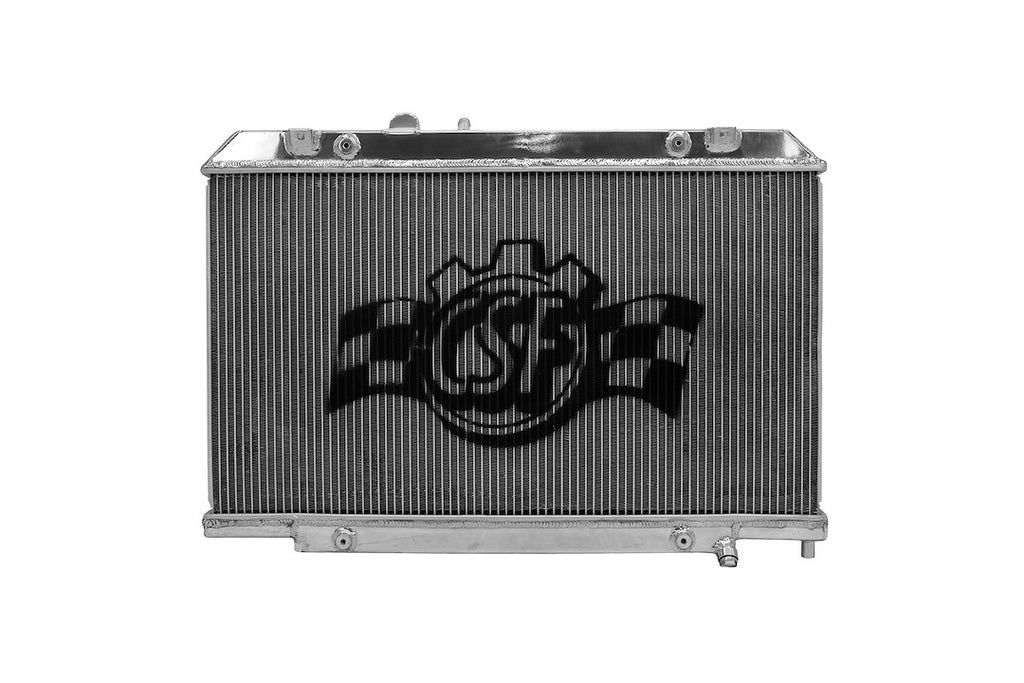

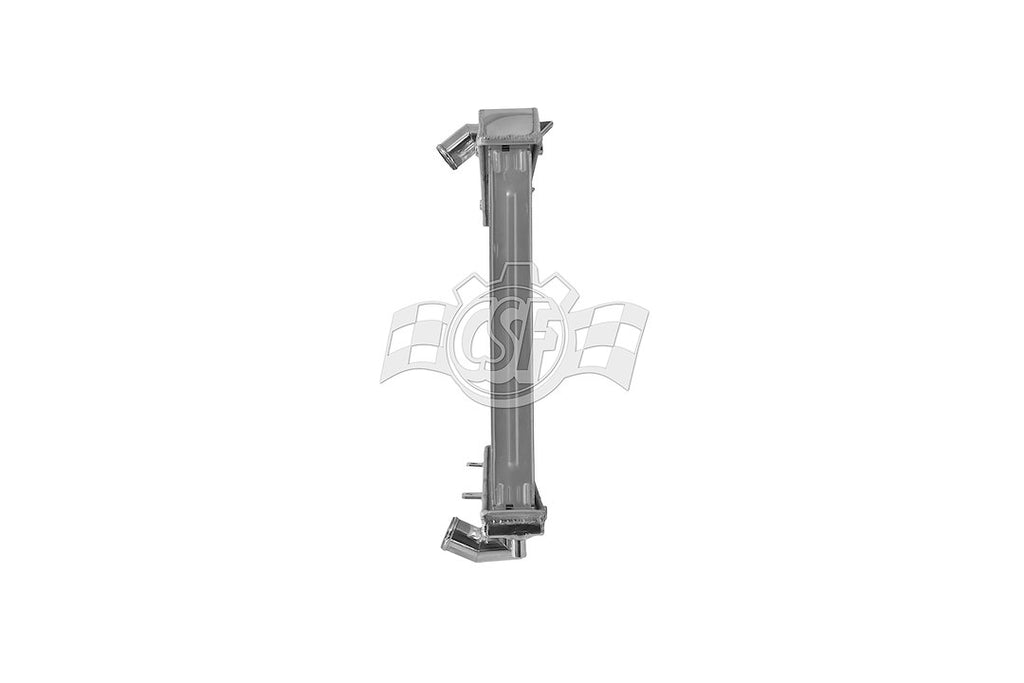

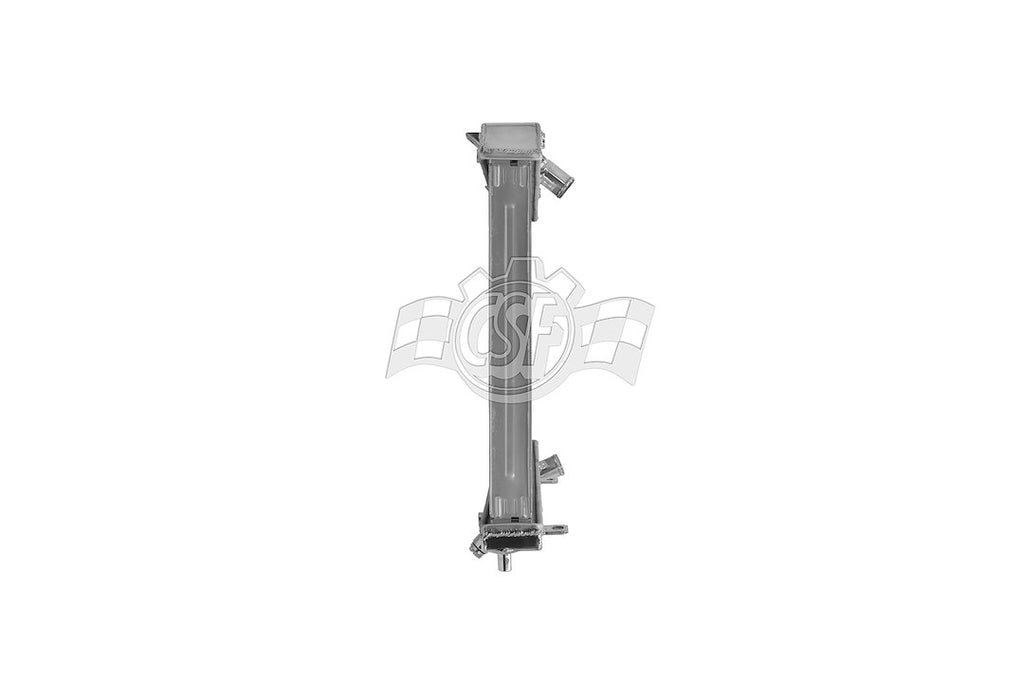

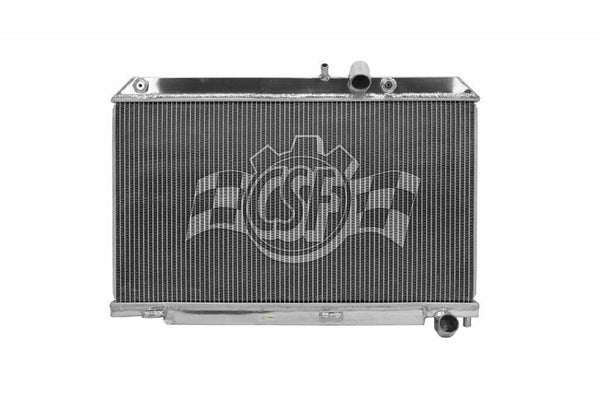

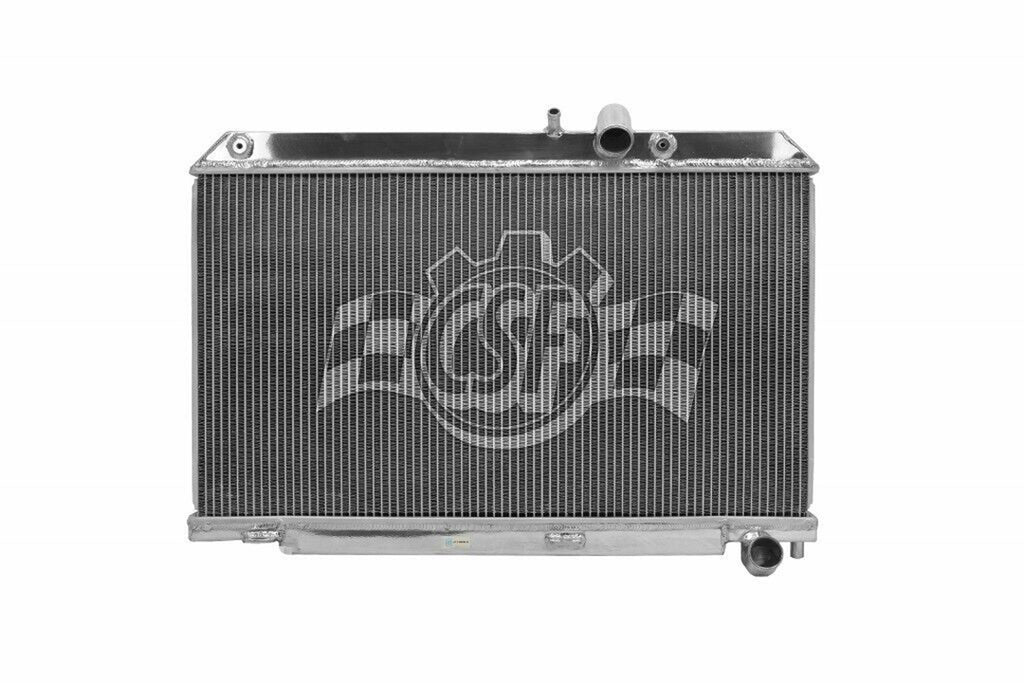

CSF Aluminum Radiator (MPN: 3164)

High-performance aluminum radiator designed for optimal cooling efficiency.

The CSF Aluminum Radiator is engineered to provide superior cooling performance for a wide range of automotive applications. With overall dimensions of 25-9/16 inches in length and 18-15/16 inches in height, this radiator features a two-row core design that enhances heat dissipation. Constructed from high-quality aluminum, it includes a top right inlet and a bottom right outlet, ensuring efficient fluid flow and compatibility with various vehicle models.

This radiator incorporates advanced features such as CNC machined brackets and fittings, B-tube technology, and a high-performance multi-louvered fin design. The racing style aluminum drain plug and OE radial end tanks contribute to its robust construction. Each unit undergoes rigorous testing, including wind tunnel and burst pressure tests, to guarantee optimal performance and durability under demanding conditions.

CSF's commitment to quality is evident in the drop-in fitment that requires no modifications, making installation straightforward. The hand-polished mirror finish not only enhances aesthetics but also provides additional corrosion protection. This radiator is an excellent choice for those seeking reliable and efficient cooling solutions in their vehicles.

Features

• CNC Machined Brackets And Fittings

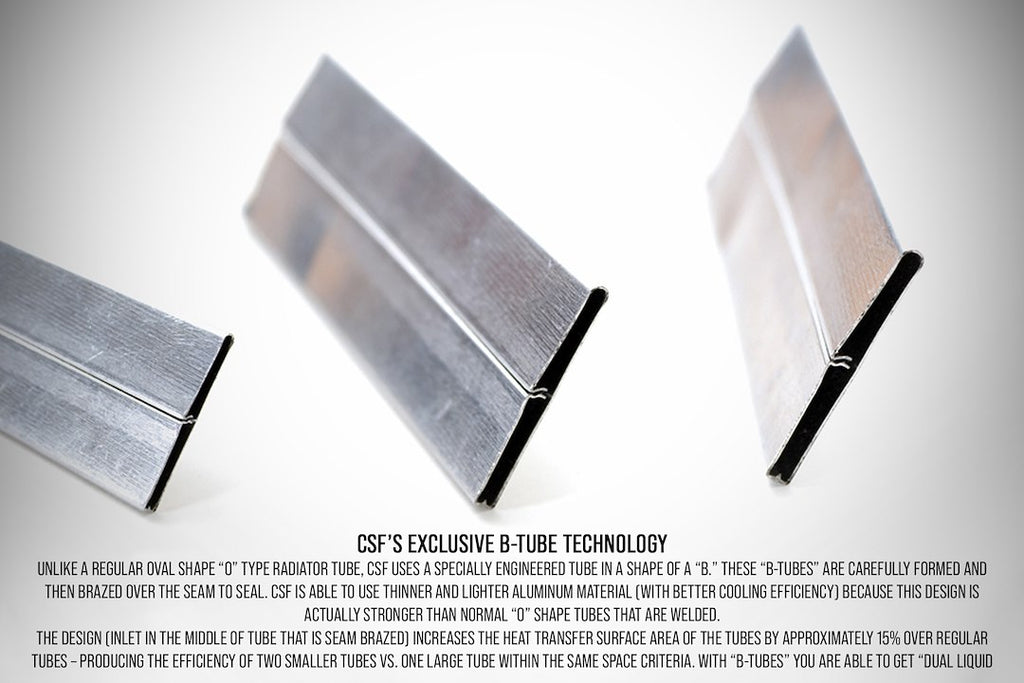

• B-Tube Technology

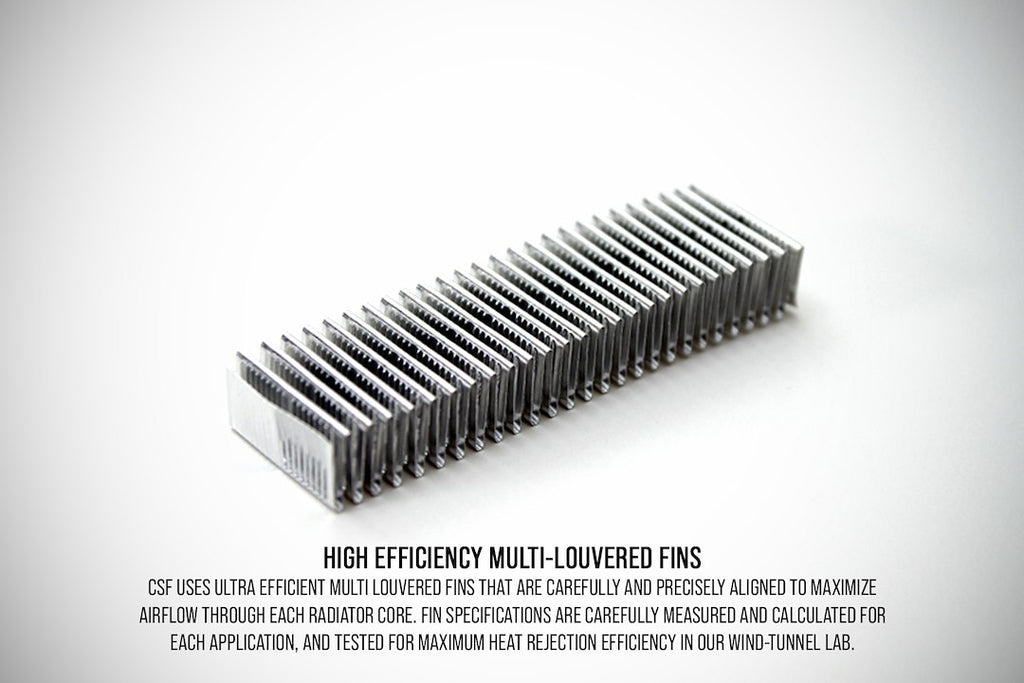

• High Performance Multi-Louvered Fin
• Racing Style Aluminum Drain Plug
• OE Radial And Deep Drawn Aluminum End Tanks
• Wind Tunnel, Burst Pressure, And Vibration Testing
• Drop-In Fitment Requiring No Modifications
• 1 Hour Hand Polish Mirror Finish
• Wind Tunnel Tested For Optimal Radiator Core Cooling Efficiency. Burst Pressure And Impulse Cycle Tested For Strength. Salt Spray Tested For Corrosion Protection

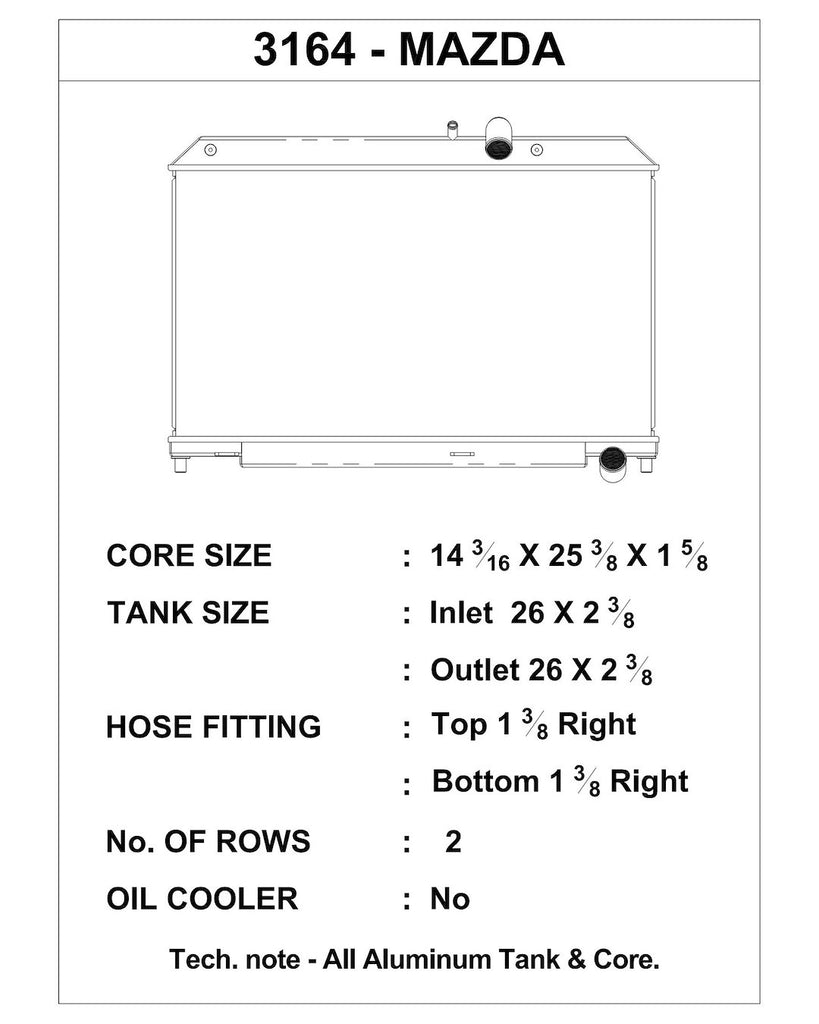

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3164
• Flow Direction: Down Flow
• Overall Length (IN): 25-9/16 Inch
• Overall Height (IN): 18-15/16 Inch
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/8 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 25-1/2 Inch
• Core Height (IN): 14-3/16 Inch
• Core Depth (IN): 2-1/16 Inch
• Tank Material: Aluminum
• With Radiator Cap: Yes
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2004-2008 Mazda RX-8
