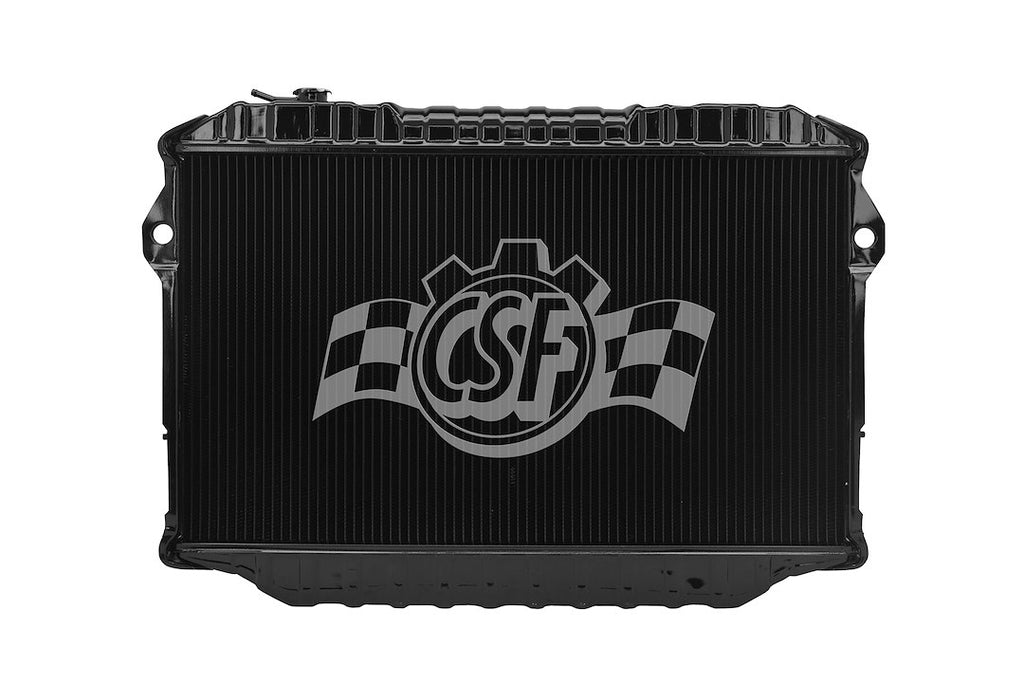

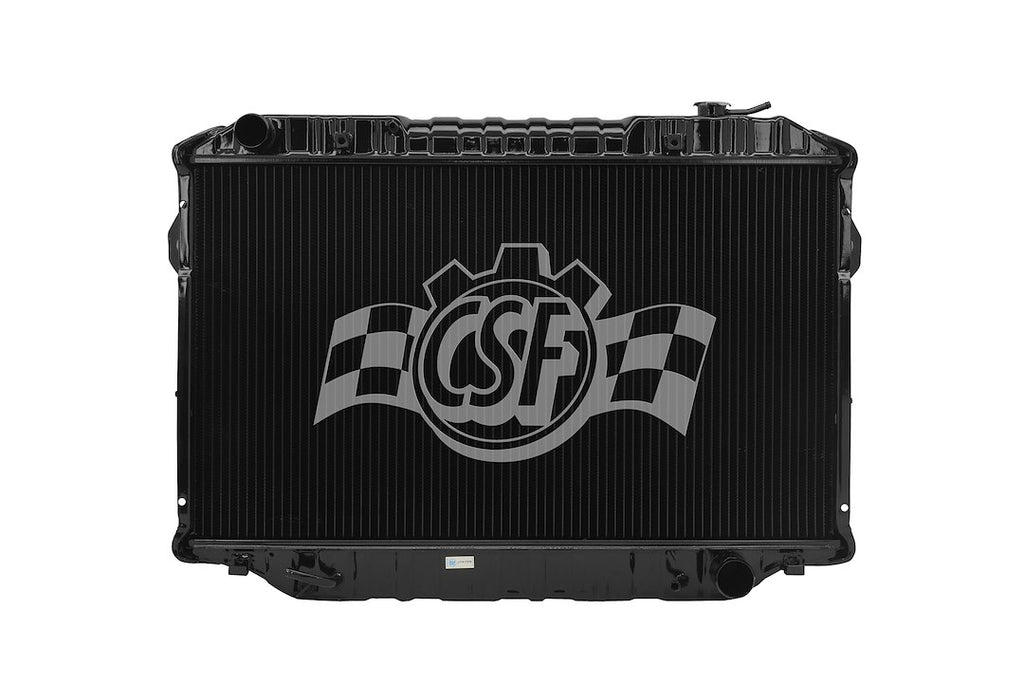

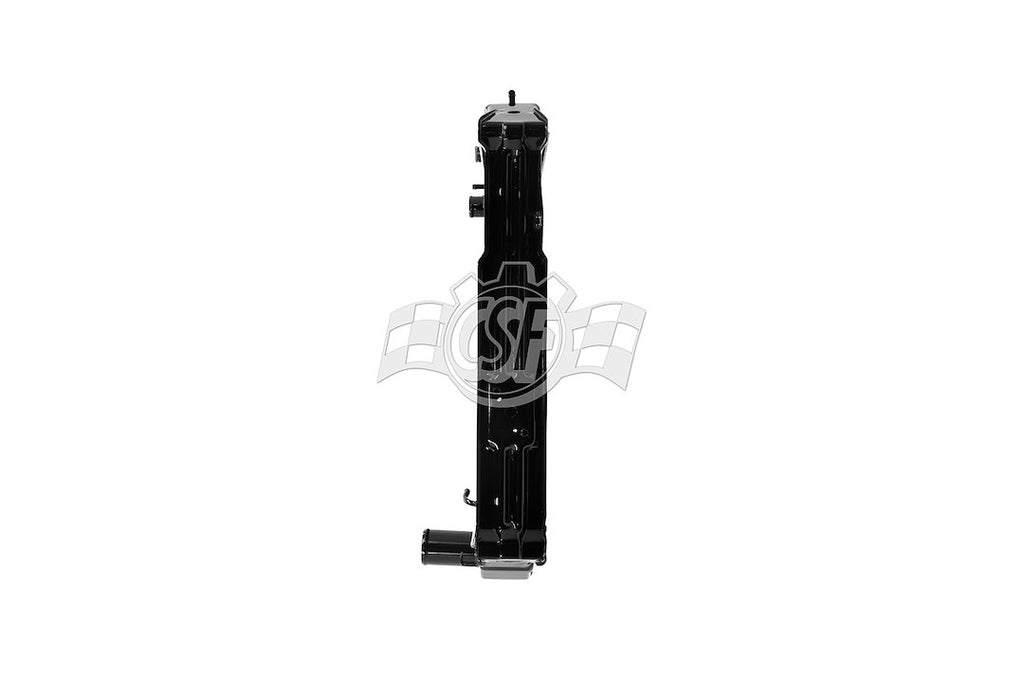

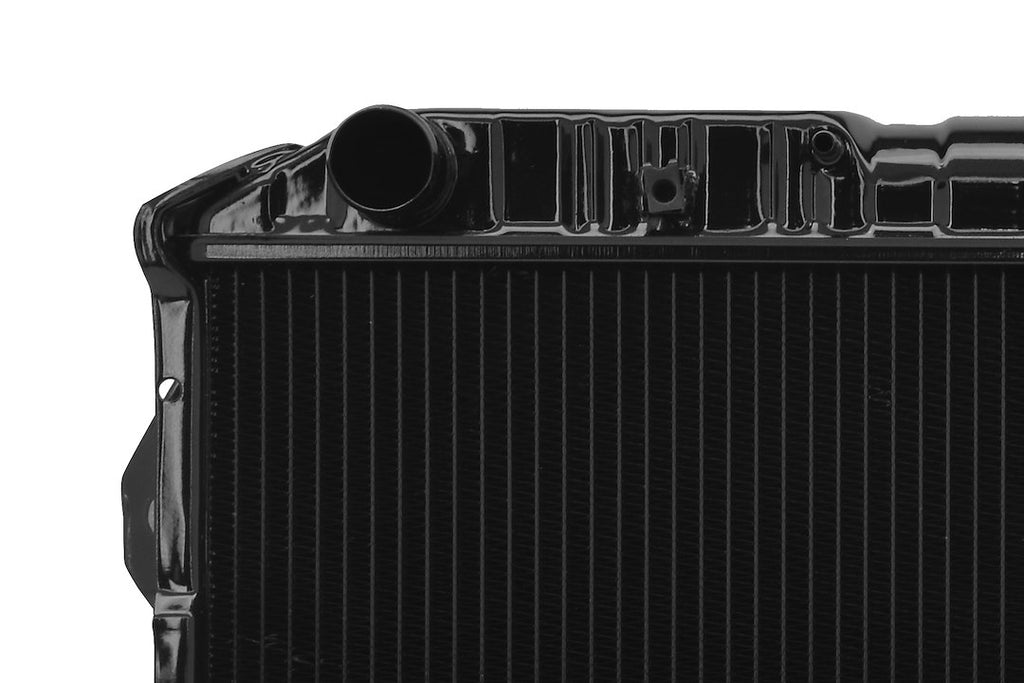

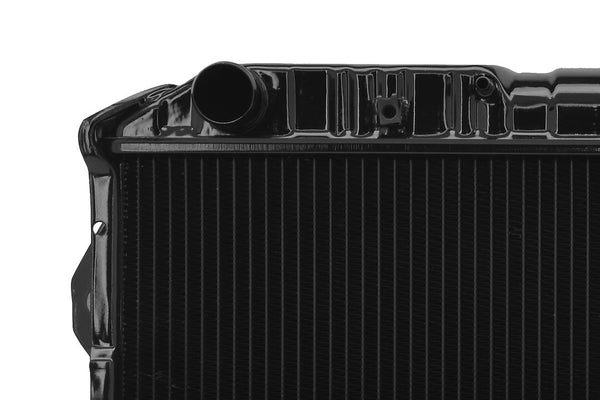

CSF Aluminum Radiator (MPN: 2517)

High performance aluminum radiator with advanced cooling technology.

CSF Aluminum Radiator is designed to provide optimal cooling efficiency for a wide range of automotive applications. With overall dimensions of 29-1/8 inches in length and 20-1/4 inches in height, this radiator features a three-row core made from high-quality aluminum, ensuring durability and effective heat dissipation. The downflow design includes a top left inlet and a bottom right outlet, facilitating seamless integration into various vehicle models.

This radiator incorporates advanced features such as CNC machined brackets and fittings, B-tube technology, and a high-performance multi-louvered fin design. The racing style aluminum drain plug enhances functionality, while the OE radial and deep drawn aluminum end tanks contribute to its robust construction. Each unit undergoes rigorous testing, including wind tunnel and burst pressure tests, to guarantee reliability and performance under demanding conditions.

CSF radiators are engineered for a drop-in fitment, requiring no modifications during installation. The one-hour hand polish mirror finish not only enhances aesthetics but also provides additional corrosion protection. With a focus on quality and efficiency, CSF Aluminum Radiator is a reliable choice for automotive enthusiasts seeking superior cooling solutions.

Features

• CNC Machined Brackets And Fittings
• B-Tube Technology
• High Performance Multi-Louvered Fin
• Racing Style Aluminum Drain Plug
• OE Radial And Deep Drawn Aluminum End Tanks
• Wind Tunnel, Burst Pressure, And Vibration Testing
• Drop-In Fitment Requiring No Modifications
• 1 Hour Hand Polish Mirror Finish
• Wind Tunnel Tested For Optimal Radiator Core Cooling Efficiency. Burst Pressure And Impulse Cycle Tested For Strength. Salt Spray Tested For Corrosion Protection

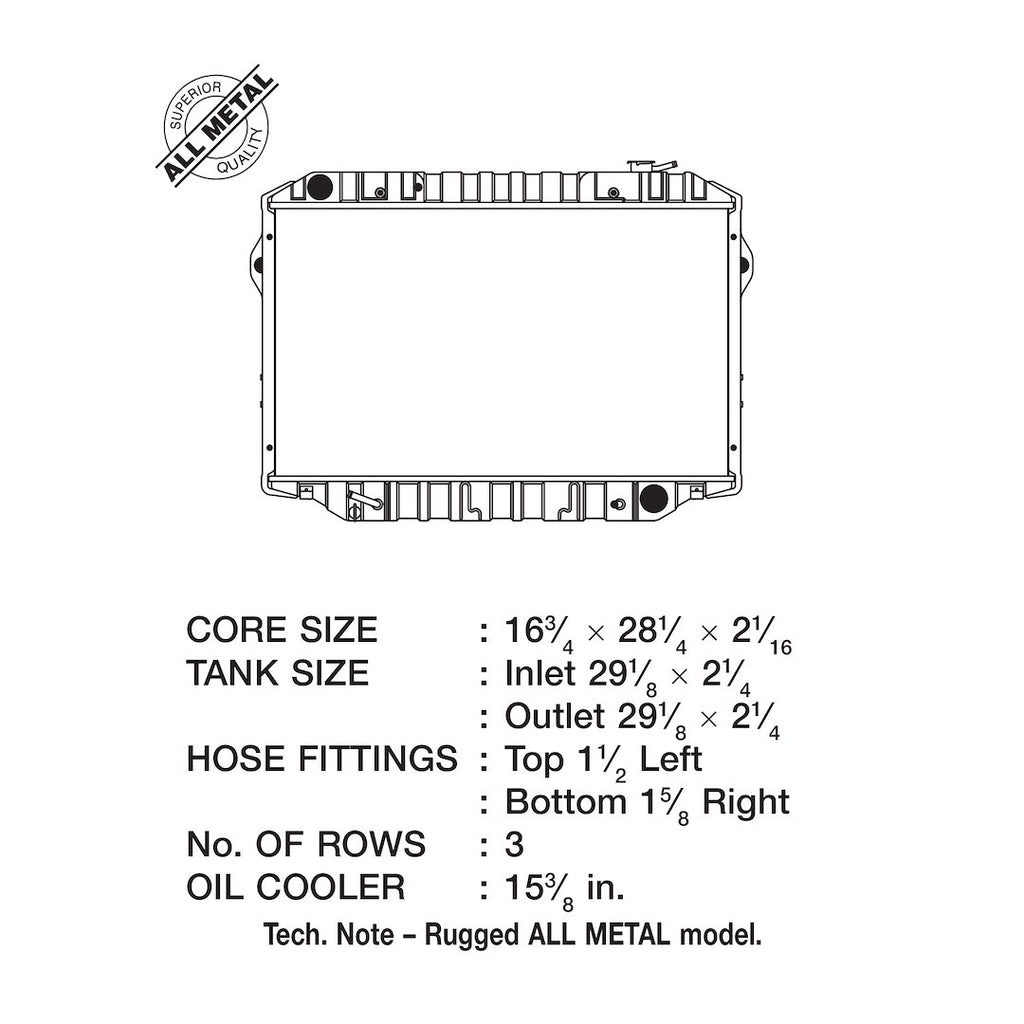

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 2517
• Flow Direction: Down Flow
• Overall Length (IN): 29-1/8 Inch
• Overall Height (IN): 20-1/4 Inch
• Overall Depth (IN): OEM
• Core Rows: Three
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-5/8 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 28-1/4 Inch
• Core Height (IN): 16-3/4 Inch
• Core Depth (IN): 2-1/16 Inch
• Tank Material: Aluminum
• With Radiator Cap: Yes
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 1996-1997 Lexus LX450
• 1993-1997 Toyota Land Cruiser
