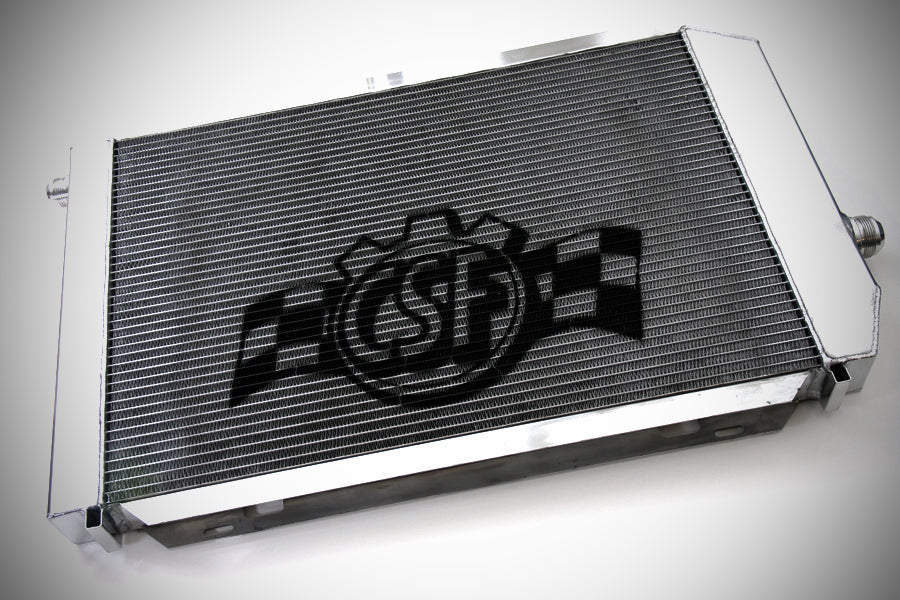

CSF Aluminum Race Radiator (MPN: 8023)

Advanced cooling technology for enhanced performance and efficiency.

CSF Aluminum Race Radiator is engineered to provide superior cooling performance through innovative tube and fin technologies. The radiator features a unique 'B-tube' design that enhances airflow and heat dissipation, allowing for improved cooling efficiency compared to traditional 'O' type tubes. This design not only increases the heat transfer surface area by approximately 15 percent but also utilizes thinner and lighter aluminum material, resulting in a stronger and more efficient radiator.

The crossflow configuration of the radiator, combined with dual liquid laminar flow capabilities, ensures optimal cooling under demanding conditions. With an overall length of 29-5/16 inches and a height of 17-3/16 inches, this radiator is designed to fit a variety of applications while maintaining a compact profile. The top right inlet and bottom left outlet are compatible with standard fittings, making installation straightforward.

Each CSF radiator is finished with a hand-polished 'Sho-Stopper mirror finish' that not only enhances aesthetics but also contributes to the overall durability of the product. This radiator is designed without a transmission cooler, focusing solely on maximizing engine cooling efficiency. CSF's commitment to quality and performance is evident in every aspect of this radiator, making it a reliable choice for high-performance applications.

Features

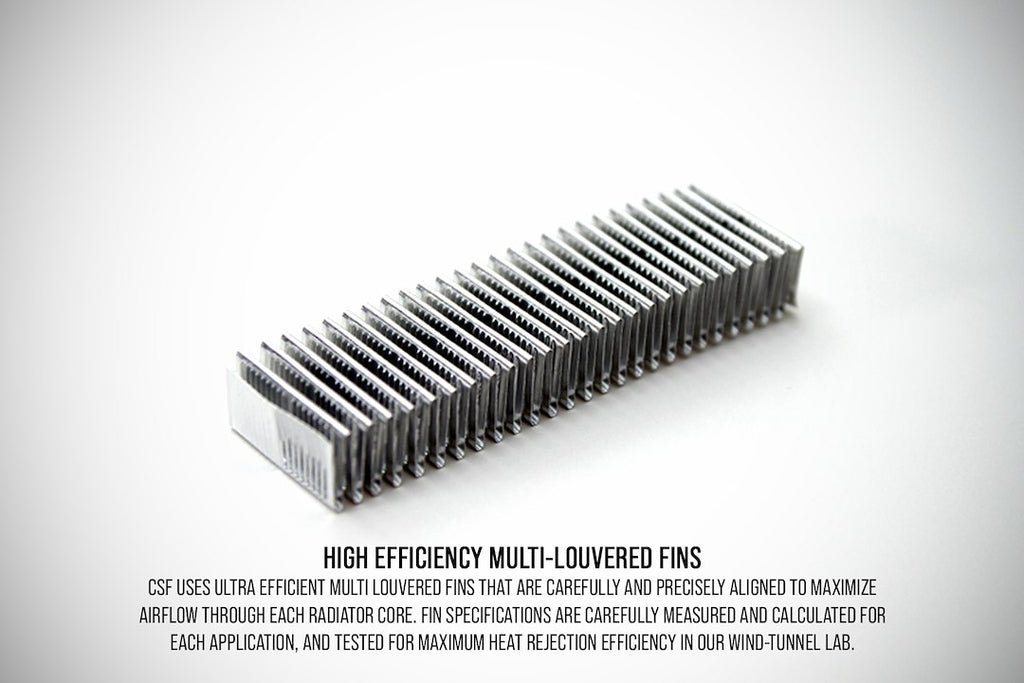

• Innovative Tube And Fin Technologies With Industry Leading Testing Methods To Maximize Airflow And Heat Dissipation

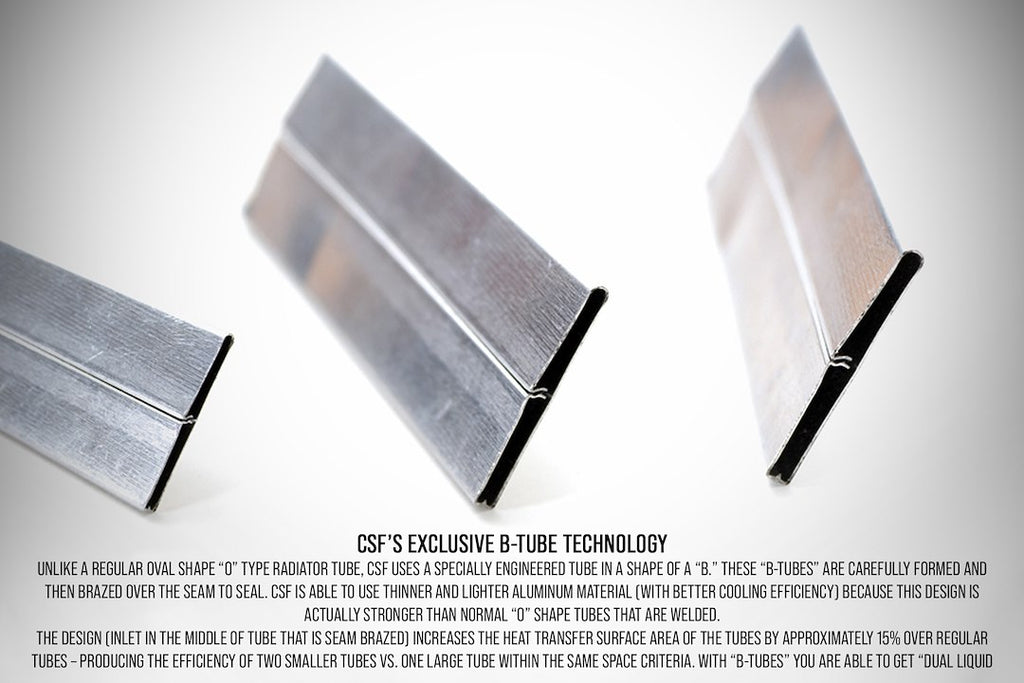

• Specially Engineered Tube In A Shape Of A "B". These "B-Tubes" Are Carefully Formed And Then Brazed Over The Seam To Seal
• Thinner And Lighter Aluminum Material (Better Cooling Efficiency) Because This Design Is Actually Stronger Than Normal "O" Shape Tubes That Are Welded
• Special "B-Tube" Technology In Place Of Traditional "O" Type Tubes For Higher Efficiency And Added Strength

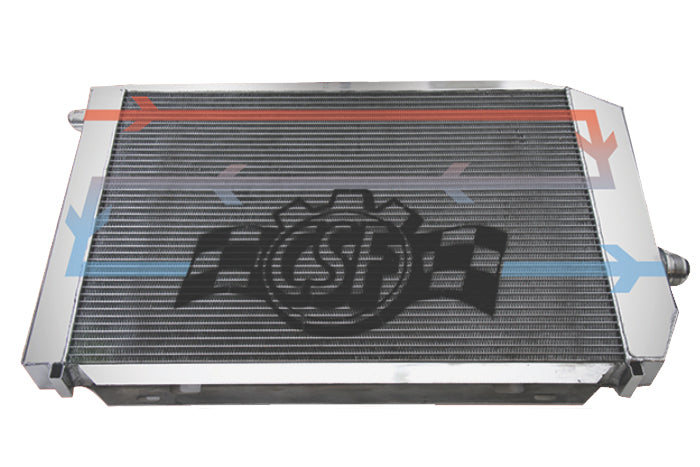

• With "B-Tubes" You Are Able To Get "Dual Liquid Laminar Flow"
• Completed With An Industry Leading 1 Hour, Hand Polished “Sho-Stopper Mirror Finish”

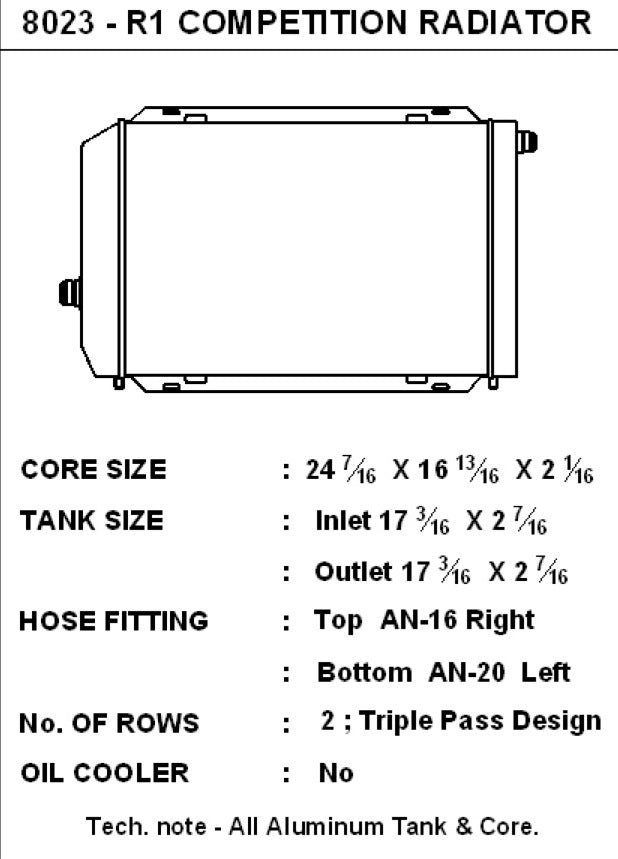

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 8023
• Flow Direction: Cross Flow
• Overall Length (IN): 29-5/16 Inch
• Overall Height (IN): 17-3/16 Inch
• Overall Depth (IN): OEM
• Core Rows: Two
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): -16 AN
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): -20 AN
• Finish: Bare
• Color: Silver
• Core Length (IN): 24-7/16 Inch
• Core Height (IN): 16-13/16 Inch
• Core Depth (IN): 2-1/16 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: Yes
