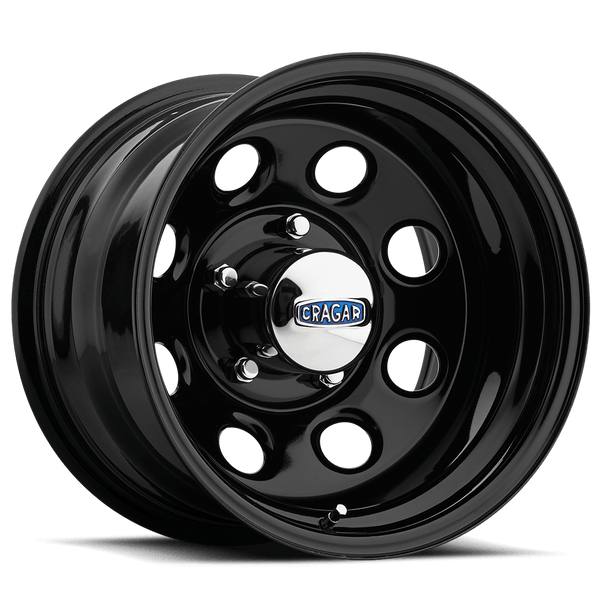

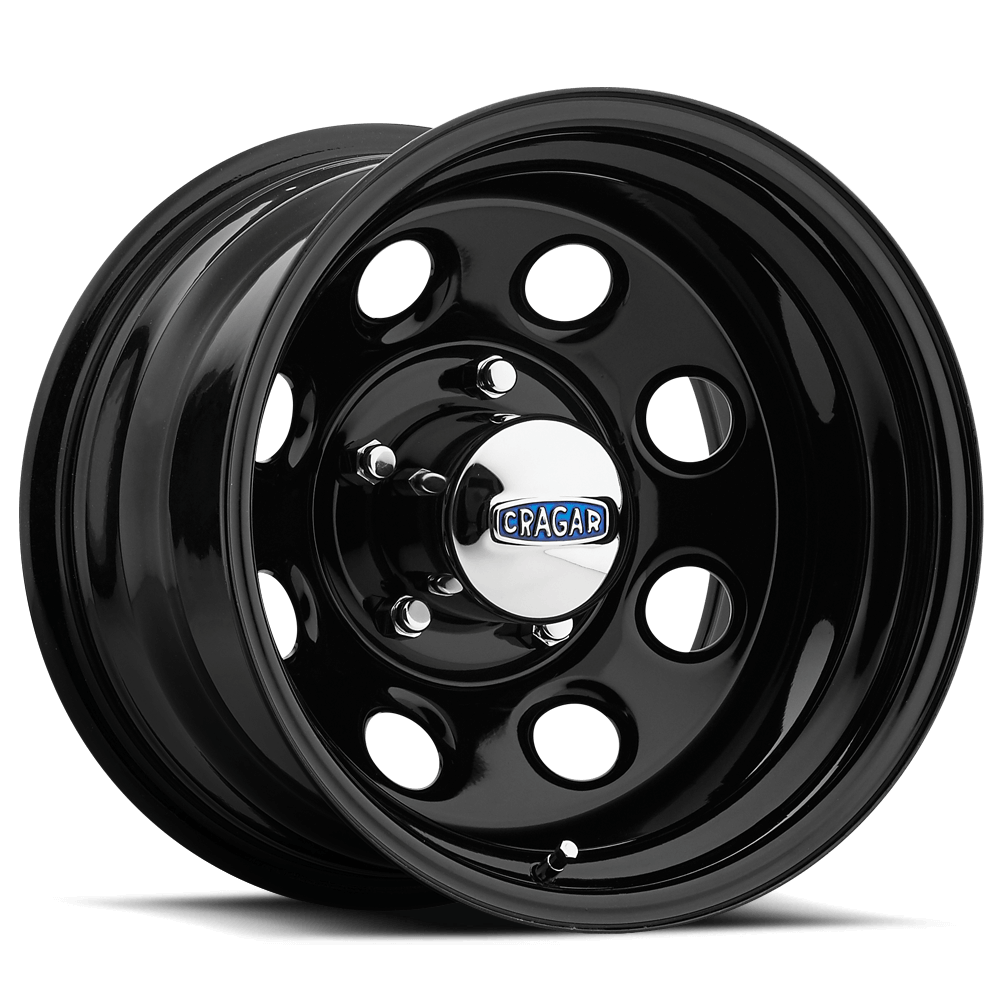

Cragar 397 Soft 8 Wheel (MPN: 1729424014B)

Durable 17 Inch Steel Wheel with Gloss Black Finish

The Cragar 397 Soft 8 Wheel is designed for performance and style, featuring a robust 2 piece welded steel construction. With a diameter of 17 inches and a width of 9 inches, this wheel is engineered to support a load capacity of 2200 pounds, making it suitable for various applications. The powder coated gloss black finish not only enhances its aesthetic appeal but also provides added durability against the elements.

This wheel features a 5 x 120.7 millimeter bolt pattern and a 60 degree conical seat lug nut design, ensuring a secure fit for compatible vehicles. The center bore measures 83.82 millimeters, and the wheel has a backspacing of 5.00 inches with a zero offset. It is important to note that this wheel is not compatible with tire pressure monitoring systems (TPMS) and does not include a center cap.

With a maximum tire diameter of 40 inches, the Cragar 397 Soft 8 Wheel is a versatile choice for those looking to enhance their vehicle's performance and appearance. Its classic design and sturdy construction make it a reliable option for muscle cars and other vehicles requiring a strong, stylish wheel.

Features

• Powder Coated, Gloss Black Finish
• 2 Piece Welded Steel Construction

Specifications

• Manufacturer: Cragar
• Manufacturer Part Number: 1729424014B
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Powder Coated Gloss
• Color: Black
• Material: Steel
• Bolt Pattern Inch: 5x4.75
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x120.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: No
• Center Bore: 83.82
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: No
• Basic Design: 8 Hole
• With Inserts: No
• Load Capacity: 2200
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Center Cap Not Included
• Finish Warranty: 90 Days
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: Two Piece Welded
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1968-1969 Buick GS 350
• 1968-1969 Buick GS 400
• 1970-1972 Buick GS 455
• 1982-1982 Buick LeSabre
• 1985-1987 Buick LeSabre
• 1961-1969 Buick Special
• 1964-1972 Buick Sportwagon
• 1955-1956 Chevrolet Bel Air
• 1960-1975 Chevrolet Bel Air
• 1995-1995 Chevrolet Blazer
• 1970-1981 Chevrolet Camaro
• 1985-1990 Chevrolet Caprice
• 1970-1976 Chevrolet Corvette
• 1978-1981 Chevrolet Corvette
• 1982-1987 Chevrolet El Camino
• 1970-1970 Chevrolet Estate
• 1970-1970 Chevrolet Impala
• 1970-1974 Chevrolet Monte Carlo
• 1979-1979 Chevrolet Monte Carlo
• 1981-1981 Chevrolet Monte Carlo
• 1982-1993 Chevrolet S10
• 1983-1990 Chevrolet S10 Blazer
• 1992-1994 Chevrolet S10 Blazer
• 1970-1972 Chevrolet Townsman
• 1978-1987 GMC Caballero
• 1970-1984 GMC Jimmy
• 1992-1999 GMC Jimmy
• 1982-1990 GMC S15
• 1983-1983 GMC S15 Jimmy
• 1985-1985 GMC S15 Jimmy
• 1988-1991 GMC S15 Jimmy
• 1991-1999 GMC Sonoma
• 1996-2000 Isuzu Hombre
• 1964-1971 Oldsmobile 442
• 1991-1994 Oldsmobile Bravada
• 1996-2001 Oldsmobile Bravada
• 1978-1984 Oldsmobile Cutlass Calais
• 1985-1986 Oldsmobile Cutlass Salon
• 1975-1988 Oldsmobile Cutlass Supreme
• 1977-1977 Oldsmobile Delta 88
• 1979-1985 Oldsmobile Delta 88
• 1967-1992 Pontiac Firebird
• 1973-1975 Pontiac Grand Am
• 1967-1987 Pontiac Grand Prix
• 1967-1977 Pontiac LeMans
