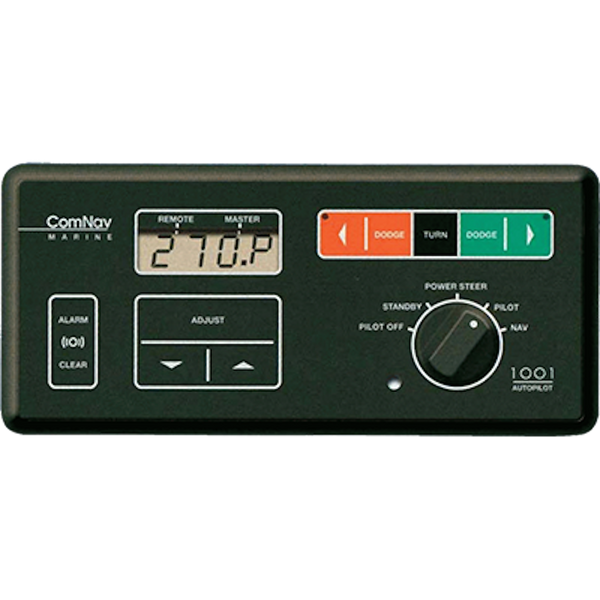

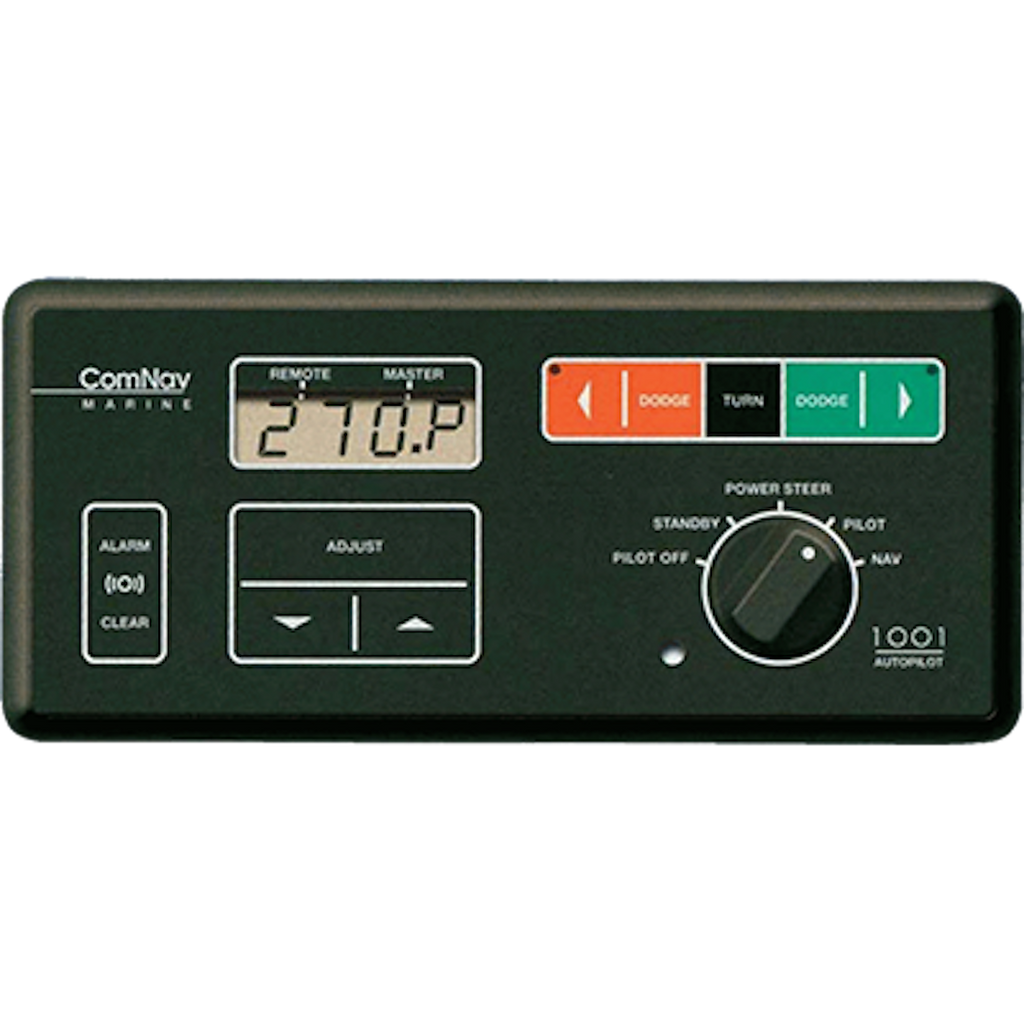

ComNav Autopilot Electronics Package (MPN: 10040002)

Advanced autopilot system with fluxgate compass interface for versatile use.

The ComNav 1001F Autopilot Electronics Package is engineered for a diverse range of vessels, from small pleasure boats to larger workboats. This system features a fluxgate compass interface that allows integration with existing third-party compasses, providing a cost-effective solution for retrofitting or upgrading autopilot systems. The 1001F is compatible with various steering systems, including mechanical and hydraulic setups, making it a flexible choice for boat owners looking to enhance their navigation capabilities.

Equipped with a user-friendly 2-inch LCD display and pushbutton controls, the ComNav 1001F offers intuitive operation and easy course adjustments. The system supports multiple turn functions, including continuous and emergency turns, and allows for automatic trim adjustments. With built-in diagnostics and alarms, the autopilot ensures reliable performance even in challenging marine conditions, backed by a three-year extended warranty.

The ComNav 1001F also supports the addition of a second station or remote control, enhancing usability for larger vessels. Its digital display provides real-time rudder angle information, and the system is designed to accept NMEA 0183 data for seamless integration with other navigation devices. This autopilot package is a robust solution for mid-sized powerboats up to 60 feet, delivering precision and reliability on the water.

Features

• Three turn functions: Continuous, Emergency and "U" Turns
• Water resistant Control Head
• Ability to add a full-function second station or remote control
• Automatic trim;Adjustable yaw, turn rate and rudder settings
• Easy course changes, from one degree to major changes
• Fast and Slow Modes may be automatically implemented by Nav device
• Ten selectable steering parameters for both Fast and Slow Modes
• Digital display of rudder angle; Nav mode accepts NMEA 0183 information
• Output for optional analog rudder angle indicator, up to 4 stations; Backlit LCD display for comfortable viewing, Adjustable brightness and contrast

Specifications

• Manufacturer: Comnav
• Manufacturer Part Number: 10040002
• Compass: Interface for use with third party, pre-existing fluxgate compass
• Control Type: Pushbuttons
• Dimensions: Control head: 8.0"W x 3.26"H x 3.6D
• Display: 2" LCD
• Drive Unit: Not Included
• Interface: 1 ea. NMEA 0183 in/out
• Processor: Contained in the control head; optional motor drive controller required
• Remote Options: Optional second station, rudder angle indicator, jog lever
• Rudder Feedback: Rotary (PN: 20330008)
• Steering Type: Hydraulic or constant-running (solenoid)
• Vessel: Mid-sized powerboats up to 60'
