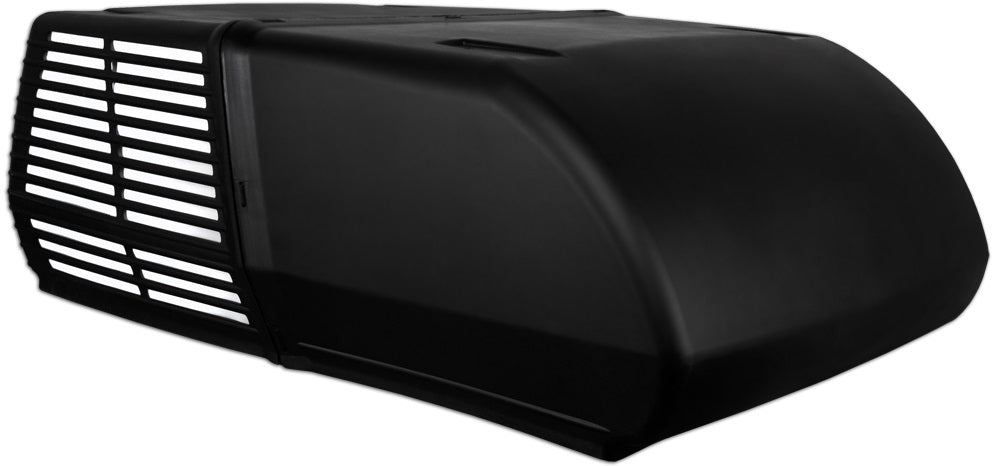

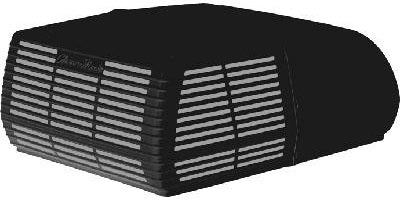

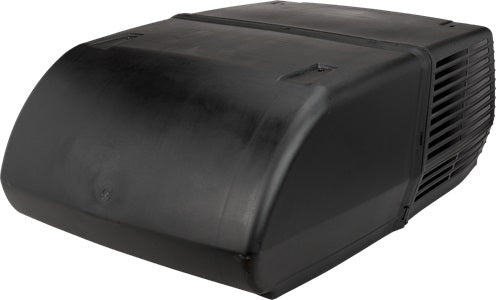

Coleman Mach Air Conditioner (MPN: 38204-0695)

High-efficiency cooling for rugged applications and environments.

The Coleman Mach Air Conditioner is designed to provide robust cooling power with a capacity of 15000 BTU, making it suitable for various applications including off-road and heavy industrial vehicles. This unit fits standard 14 inch x 14 inch vent openings and can operate in both ducted and non-ducted configurations, offering flexibility for installation. Its construction features corrosion-resistant stainless steel screws and a plastic drain pan, ensuring durability in harsh conditions.

Engineered for stability, the motor is mounted directly to the bulkhead, which prevents distortion of the blower wheel angle and ensures efficient airflow. The sealed shaft design protects against dust and potential cooling capacity loss, while the large evaporator and condenser coils with raised lance fins enhance heat transfer efficiency. Weighing 79.5 pounds and with a medium profile height of 13.8 inches, this air conditioner is built to withstand the rigors of demanding environments without compromising on performance.

Features

• Corrosion-Resistant, Stainless Steel Truss Head Screws Secure The Shroud
• Plastic Drain Pan Eliminates Corrosion
• Motor Is Mounted Directly To The Bulkhead To Prevent Distortion Of The Angle Of The Blower Wheel
• Ensures A Free Turning Action
• Fixes The Motor's Position In Relation To The Blower
• Features A Sealed Shaft To Protect Against Dust And Cooling Capacity Loss
• Large Evaporator And Condenser Coils Have Raised Lance Fins That Enhance Heat Transfer

Specifications

• Manufacturer: Coleman Mach
• Manufacturer Part Number: 38204-0695
• Mount: 14 Inch x 14 Inch Vent Openings
• BTU Level: 15000 BTU
• AC System: Ducted System Or Non Ducted System
• Zone Control: Without Built-In Zone Control Electronic Board
• Color: Black
• Cooling Type: Refrigerant Cooling
• Function: AC Only
• Height: Medium Profile - 13.8 Inch
• Voltage Rating: 120 Volt
• Ampere Rating: 13 Amp
• Evaporator Flow Rate: 320 CFM (Cubic Feet Per Minute)
• With Condensate Pump: Without Condensate Pump
• With Remote Control: Without Remote Control
• Weight: 79.5 Pound
• Estimated Install Time (Hours): 1.5
• Marine: No
