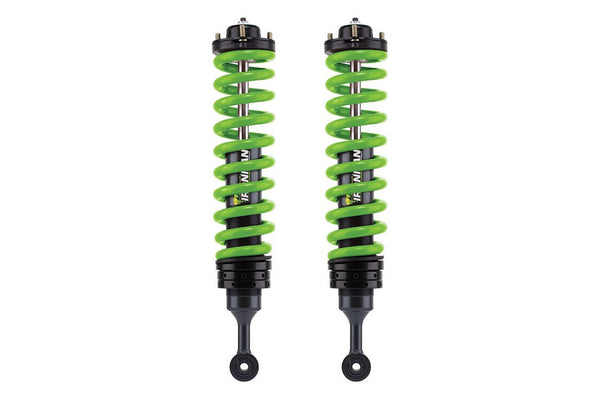

Coil Over Shock Absorber by Ironman 4x4 (MPN: 45710FE-CCKTC-PB)

Enhanced Ride Quality and Stability for Off-Road Adventures

The Ironman 4x4 Coil Over Shock Absorber is engineered to provide superior ride quality and stability, whether navigating rugged terrains or cruising on highways. This set of two prebuilt coil overs eliminates the need for a spring compressor, simplifying installation and ensuring optimal performance right out of the box.

Features

• Twin tube construction for enhanced durability
• Rebuildable design for long-term use
• 2.8-inch outer body diameter for robust performance
• Chrome hardened piston rod for increased strength
• Threaded height adjustable strut spring seat for customization
• Integrated bump stop for added protection
• Single piece solid mounting base for stability
• Foam cell design for improved heat dissipation
• 360-degree welded mounts for enhanced reliability

Specifications

• Manufacturer: Ironman 4x4
• Manufacturer Part Number: 45710FE-CCKTC-PB
• Adjustable: No
• Upper mounting type: Strut
• Lower mounting type: Eyelet
• Front/Rear drop: 2-1/2 inch lift
• Quantity: Set of 2
• Valving type: Non adjustable
• Shock type: Twin tube
• Shock body color: Black
• Spring height: 15.35 inches
• Spring rate: 720 pounds per inch
• Spring style: Pigtail
• Spring color: Green

Technical Documents

shock_fitting_instructions.pdf
