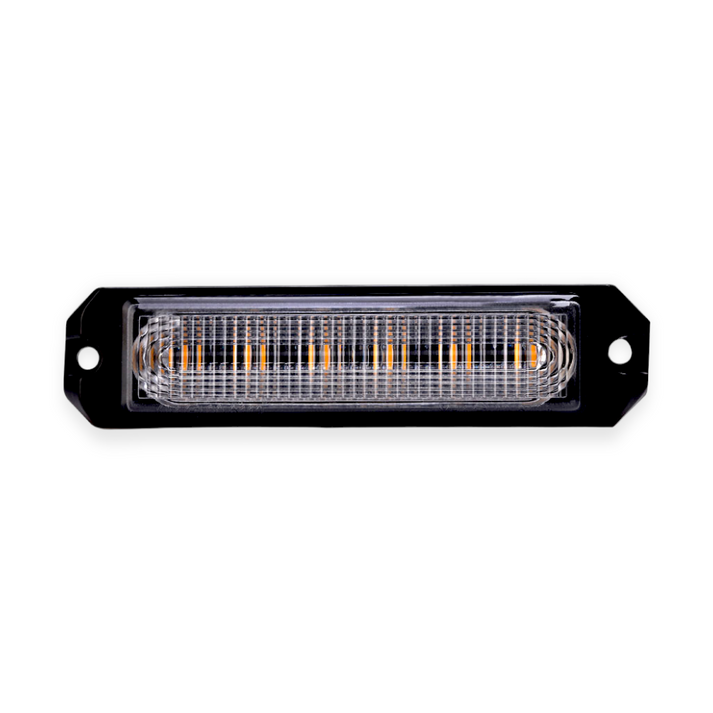

BUILTBRIGHT Work Bar Strobe 4 Slim (MPN: BB6110B)

Versatile warning light with customizable flash patterns and robust design.

The BUILTBRIGHT Work Bar Strobe 4 Slim is a compact and efficient warning light designed for optimal visibility in various conditions. With its ultra low-profile design, this strobe light can be easily mounted on any vehicle surface, making it a flexible solution for emergency services and safety applications. It features 12 high-intensity LED bulbs that provide dual color options of amber and white, along with 63 flash patterns including cruise and flood modes, ensuring that users can customize their visibility needs.

Constructed with a clear polycarbonate lens and a powder-coated black cast aluminum housing, the Work Bar Strobe 4 Slim is built to withstand harsh environments. It is rated IP69K for weatherproofing and complies with SAE J595 Class 1 and EMC CISPRR 25 standards, ensuring reliable performance in demanding conditions. The light operates on a 12 to 24 volt DC power supply and consumes 8 watts, making it energy efficient while delivering high visibility.

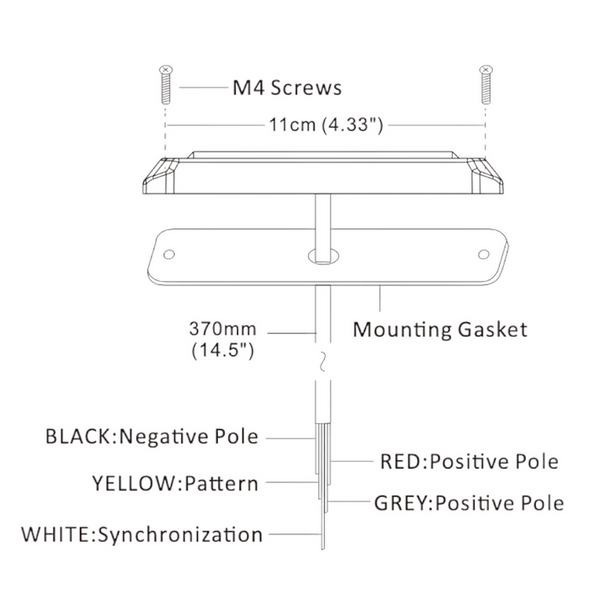

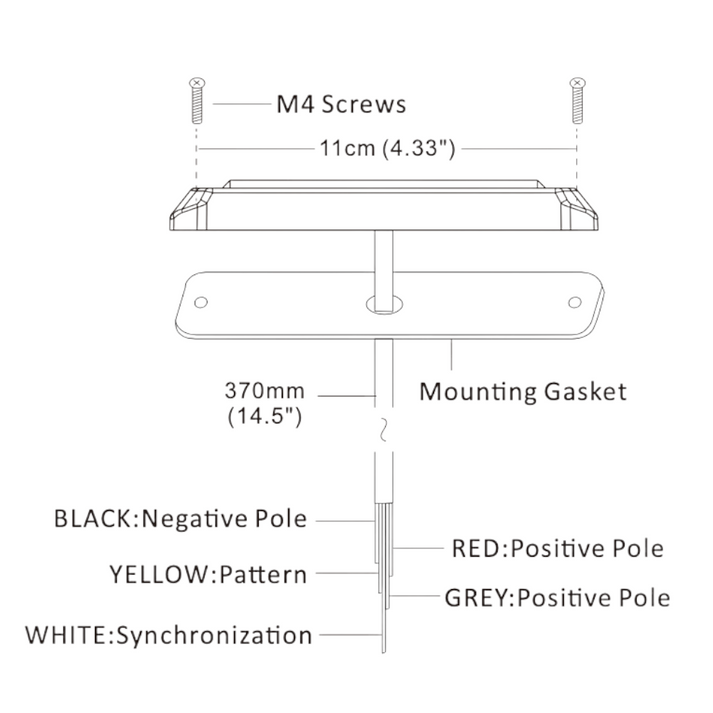

This warning light also supports multi-unit synchronization, allowing multiple units to flash simultaneously or alternately, enhancing visibility in critical situations. The inclusion of a foam pad and 3M VHB tape for mounting ensures a secure installation, while the dual-memory functionality allows users to select their preferred flashing mode. The BUILTBRIGHT Work Bar Strobe 4 Slim is a dependable choice for those requiring a robust and versatile warning light.

Features

• 12 And 24 Volt DC Compatible
• Compliance: SAE J595 Class 1, EMC CISPRR 25
• 12 High-Intensity LEDs Behind Unique Optical Lens
• 2 User Programmable Modes
• Dual Color White And Amber
• 63 Patterns Features Cruise And Flood Mode
• Multi-Unit Synchronization In Simultaneous Or Alternating Flash
• Ultra Slim Design Fits Everywhere On A Vehicle
• Weatherproof IP69K Rated

Specifications

• Manufacturer: BUILTBRIGHT
• Manufacturer Part Number: BB6110B
• Shape: Rectangular

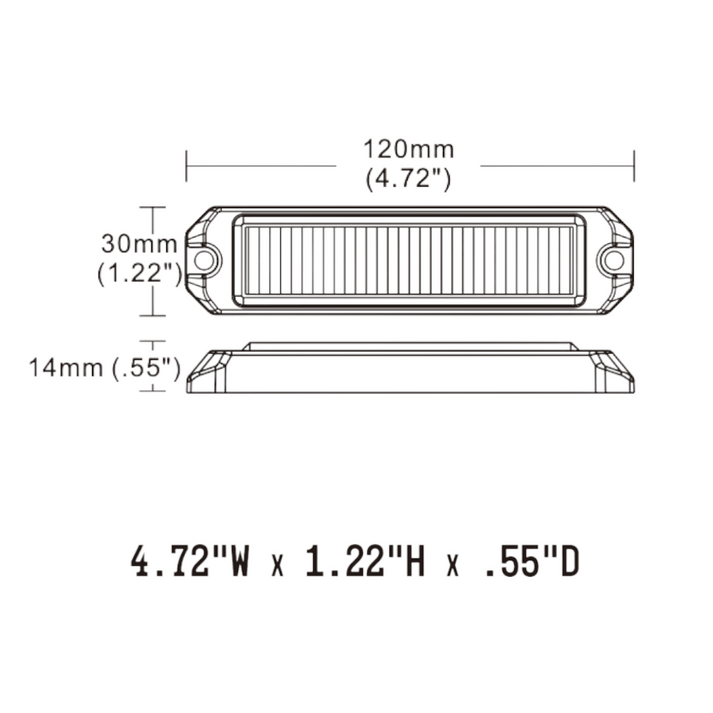

• Length (IN): 1/2 Inch
• Width (IN): 4.7 Inch
• Height (IN): 1.22 Inch
• Diameter (IN): Not Applicable
• Style: Mini Bar
• Type: LED
• Mount Type: Surface Mount
• Lens Color: Clear
• Light Pattern: 63 Flash Pattern With Cruise/ Flood Mode
• Power Supply: 12 To 24 Volt
• Lens Material: Polycarbonate
• Base Material: Aluminum
• Wire Length (FT): 0.9 Feet
• With Cigarette Lighter Plug: No
• Number Of Alley Lights: No Alley Lights
• Number Of Takedown Lights: No Takedown Lights
• Number Of Flashing Marker Lights: 63
• Includes Control Panel: No
• Mounting Strap Material: No Mounting Straps
• Includes Gaskets: No

Technical Documents

• BB6110B_BB6110C_Installation_Instructions_II-BB6110B_C_DIGITAL.pdf
