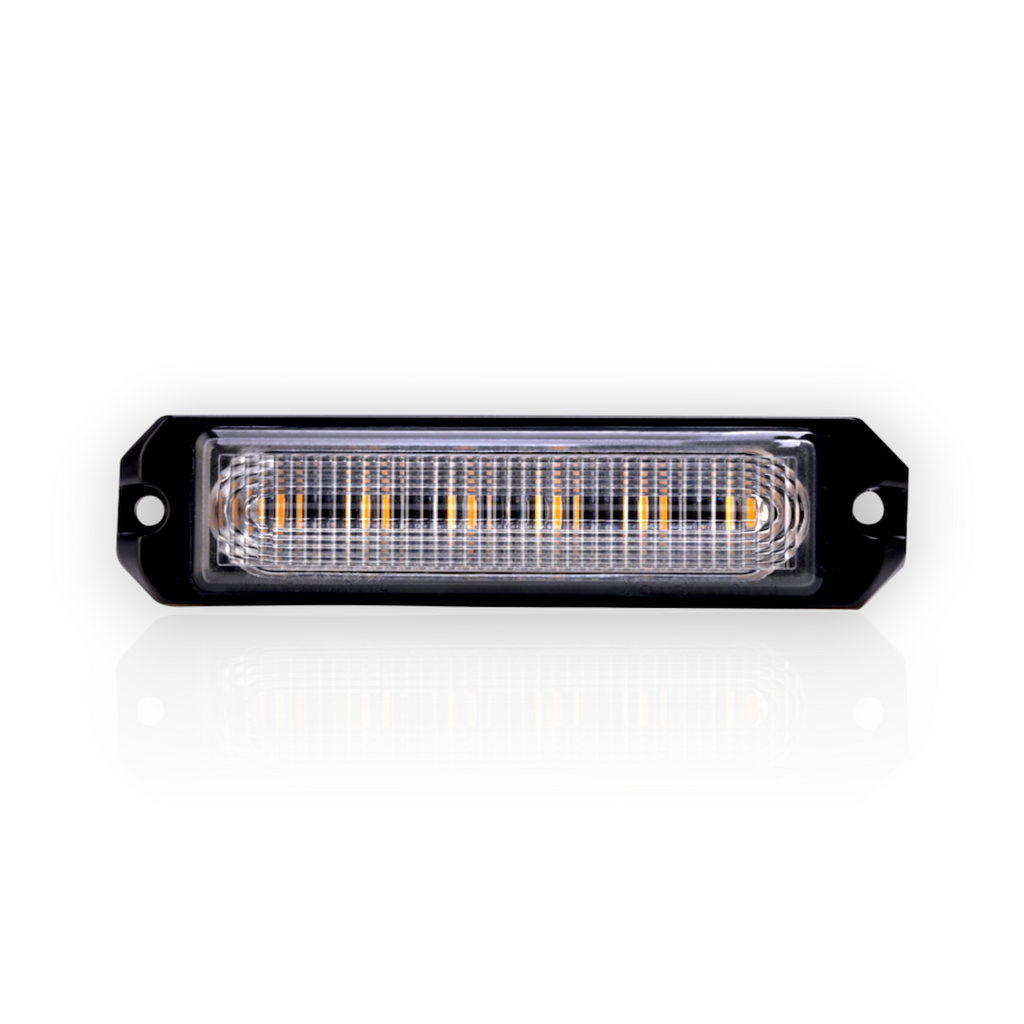

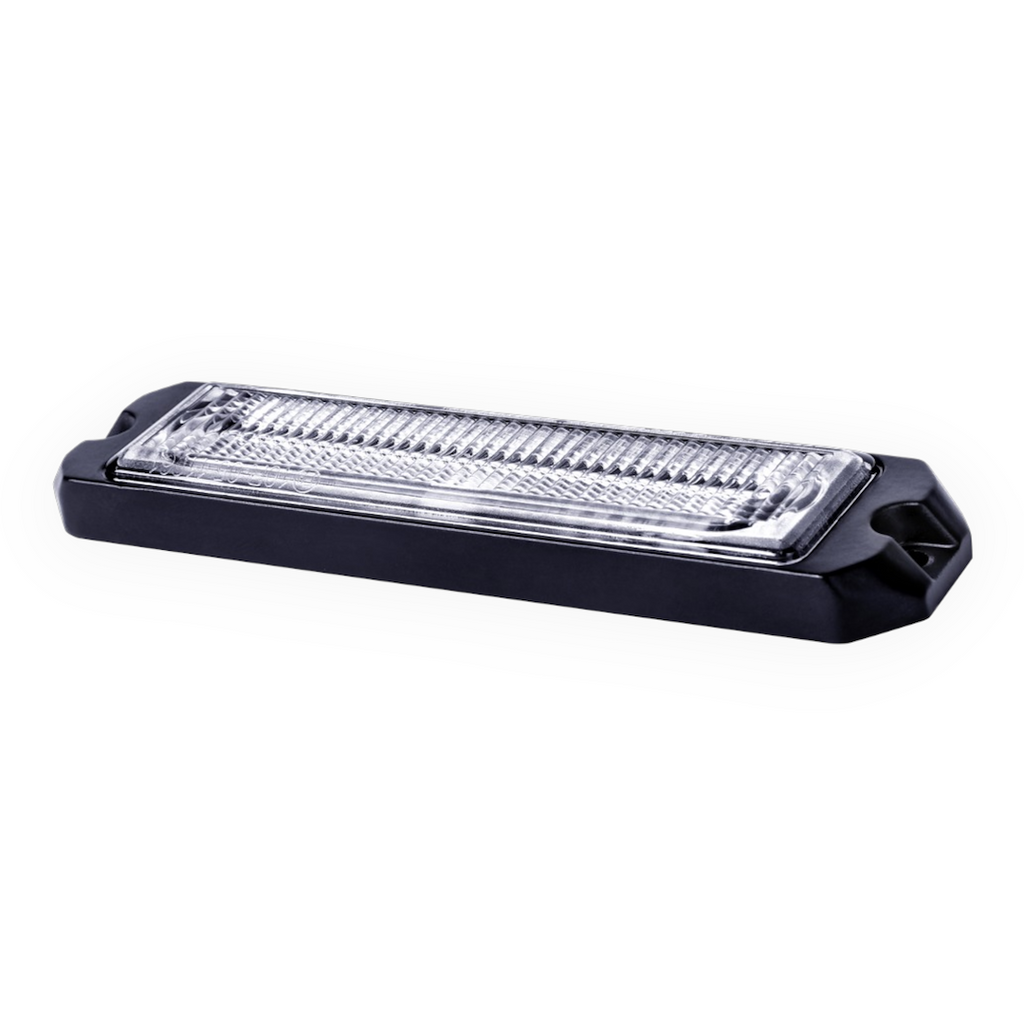

BUILTBRIGHT Work Bar Strobe 4 Slim (MPN: BB6110A)

Versatile warning light with customizable flash patterns and robust design.

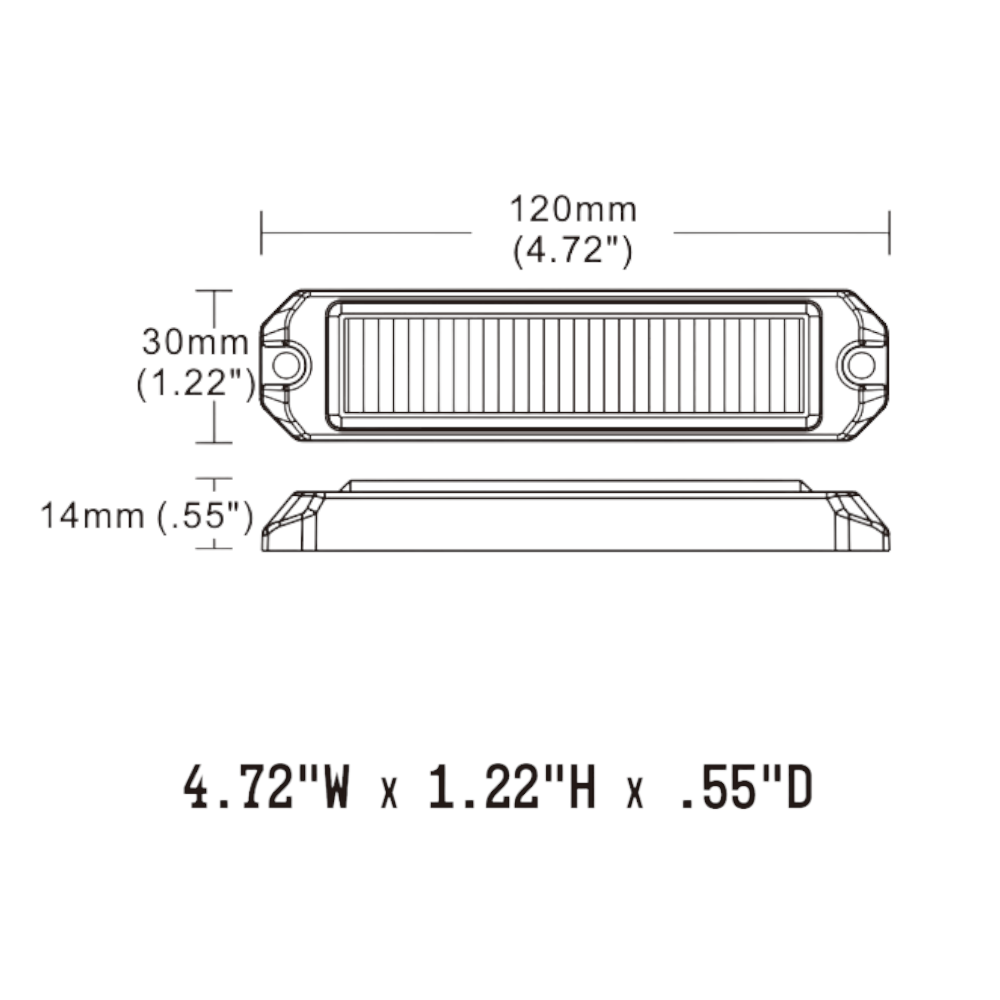

The BUILTBRIGHT Work Bar Strobe 4 Slim is a compact and efficient warning light designed for optimal visibility in various conditions. With a slim profile of 1.22 inches in height and 4.7 inches in width, this mini bar can be easily mounted on any vehicle surface or grille, making it a flexible solution for emergency services and safety applications. It features 12 high-intensity amber LED bulbs that provide a powerful light output with 63 different flash patterns, including cruise and flood modes, ensuring that users can customize their visibility as needed.

Constructed with a clear polycarbonate lens and a powder-coated black cast aluminum housing, the Work Bar Strobe 4 Slim is built to withstand harsh environments. It is rated IP69K for weatherproofing, ensuring reliable performance in extreme conditions. The device operates on a 12 to 24 volt DC power supply and is compliant with SAE J595 Class 1 and EMC CISPRR 25 standards, making it suitable for a variety of applications.

This strobe light also includes dual-memory functionality, allowing users to program different flash modes or a steady burn within the same unit. Its ultra-slim design and multi-unit synchronization capabilities make it an excellent choice for those needing a reliable and effective warning light solution.

Features

• 12 And 24 Volt DC Compatible
• Compliance: SAE J595 Class 1, EMC CISPRR 25
• 12 High-Intensity LEDs Behind Unique Optical Lens
• 2 User Programmable Modes
• Dual Color White And Amber
• 63 Patterns Features Cruise And Flood Mode
• Multi-Unit Synchronization In Simultaneous Or Alternating Flash
• Ultra Slim Design Fits Everywhere On A Vehicle
• Weatherproof IP69K Rated

Specifications

• Manufacturer: BUILTBRIGHT
• Manufacturer Part Number: BB6110A
• Shape: Rectangular
• Length (IN): 1/2 Inch
• Width (IN): 4.7 Inch
• Height (IN): 1.22 Inch
• Diameter (IN): Not Applicable
• Style: Mini Bar
• Type: LED
• Mount Type: Surface Mount
• Lens Color: Clear
• Light Pattern: 63 Flash Pattern With Cruise/ Flood Mode
• Power Supply: 12 To 24 Volt
• Lens Material: Polycarbonate
• Base Material: Aluminum
• Wire Length (FT): 0.9 Feet
• With Cigarette Lighter Plug: No
• Number Of Alley Lights: No Alley Lights
• Number Of Takedown Lights: No Takedown Lights
• Number Of Flashing Marker Lights: 63
• Includes Control Panel: No
• Mounting Strap Material: No Mounting Straps
• Includes Gaskets: No

Technical Documents

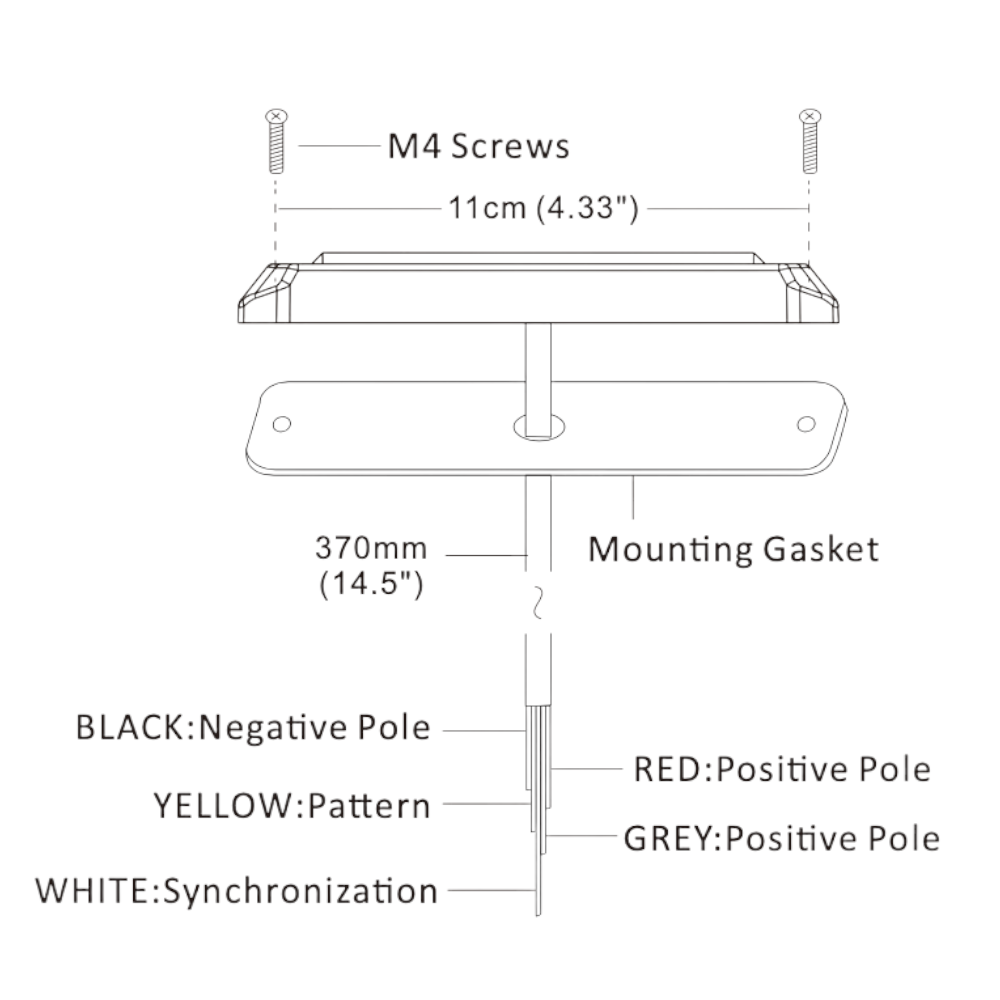

• BB6110A_Installation_Instructions_II-BB6110A_DIGITAL.pdf
