Durable and versatile circuit breaker panel for marine applications.

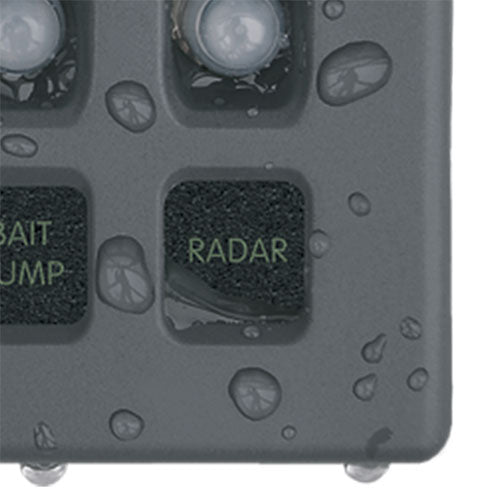

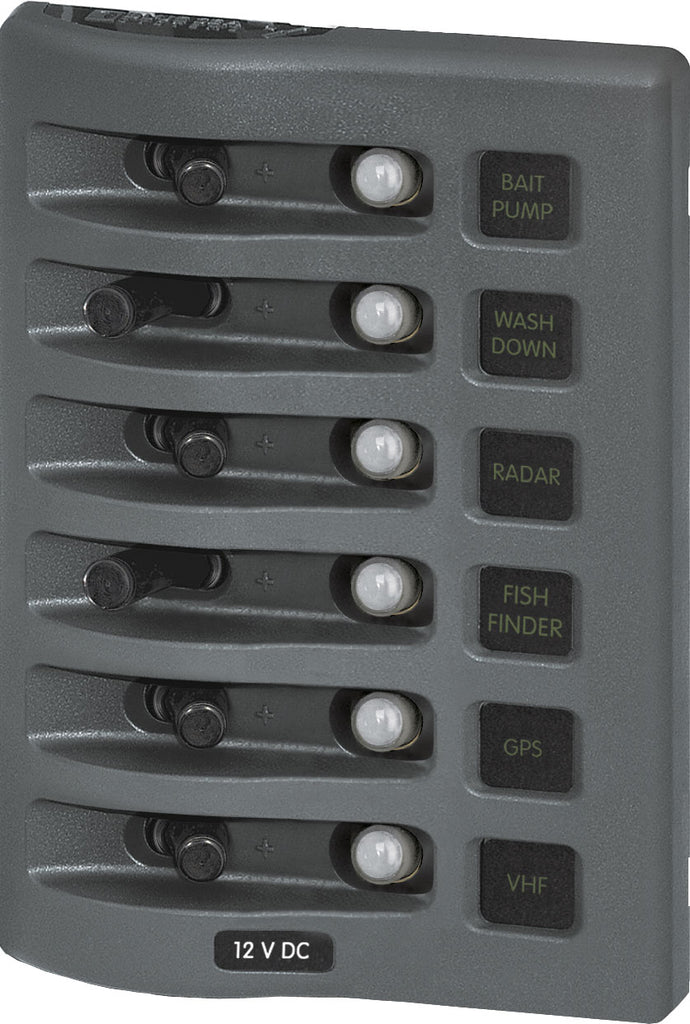

The Blue Sea WeatherDeck Power Distribution Box is engineered for marine environments, providing a robust solution for managing electrical circuits. This panel features six positions for CLB circuit breakers, accommodating 15 Amps at 12 Volts DC and 9 Amps at 24 Volts DC. Constructed from reinforced polycarbonate, it ensures durability and resistance to harsh weather conditions, with an IP67 rating for temporary immersion in water.
Designed for flexibility, the WeatherDeck panel can be mounted in four different orientations, making it suitable for various installations on flybridges and open cockpits. The independent label backlighting enhances visibility in low-light conditions, while green LEDs illuminate all labels when powered, regardless of switch position. This feature aids in quick identification and operation of circuits.

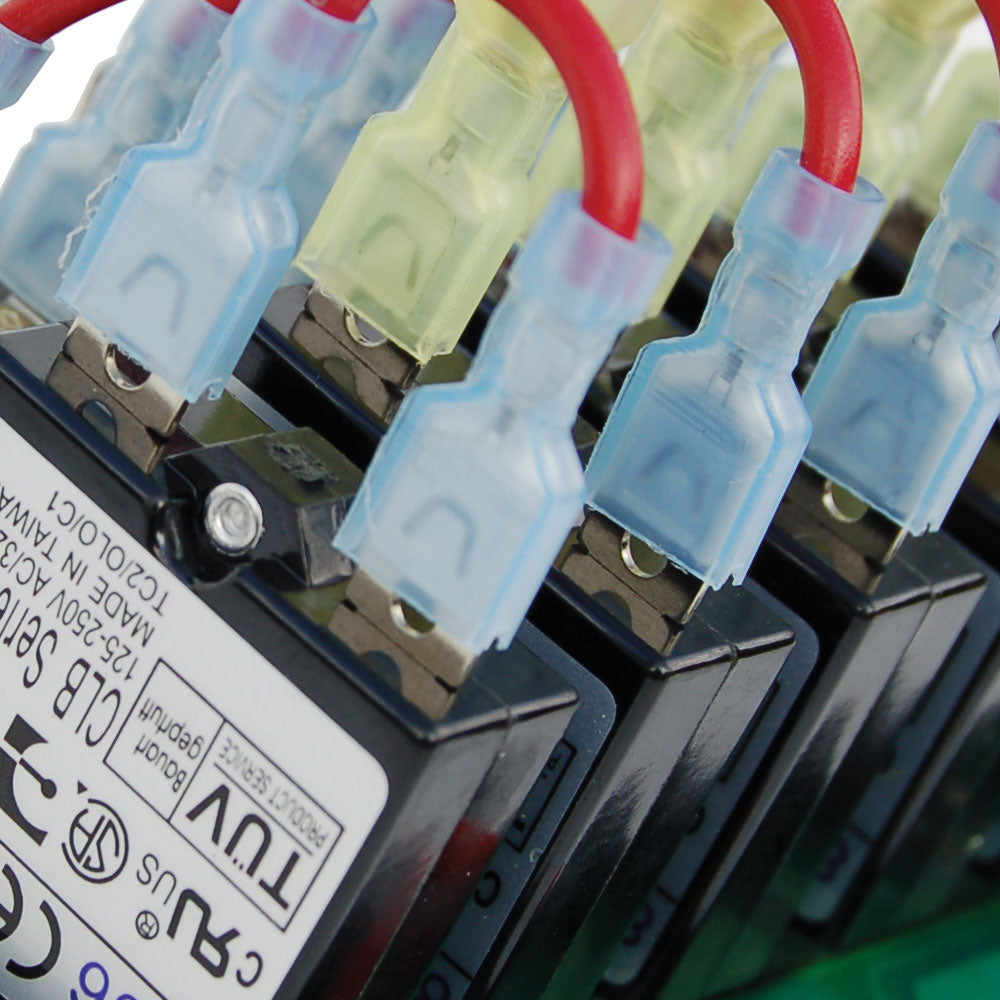

The panel includes six push button reset circuit breakers and toggle switches, providing reliable control over electrical systems. The UV stabilized faceplate snaps on and off for easy access to components, while concealing mounting screws for a clean appearance. This power distribution box is an essential component for any boat requiring a dependable and stylish electrical management solution.
Features
- Designed For Flybridge And Open Cockpit Applications
- Independent Label Backlighting Allows Switching And Dimming
- Compatible With All Blue Sea Systems Digital Dimmers
- Each Panel Can Be Mounted In Four Different Orientations
- Green LEDs Aid Low-Light Readability, All Labels Will Be Lit When The Panel Is Powered, Regardless Of Individual Switch Position
- Rated IP67-Temporary Immersion For 30 Minutes
- UV Stabilized Weather-Resistant Faceplate Snaps On And Off Providing Access To Components And Concealing Mounting Screws
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 4376-BSS
- Recommended Use: CLB Circuit Breakers Panel
- Voltage Rating: 12 Volt
- Number Of Connections: 6
- Length (IN): 3-1/2 Inch
- Width (IN): 4-1/4 Inch
- Height (IN): 6 Inch
- Color: Gray
- Material: Polycarbonate
