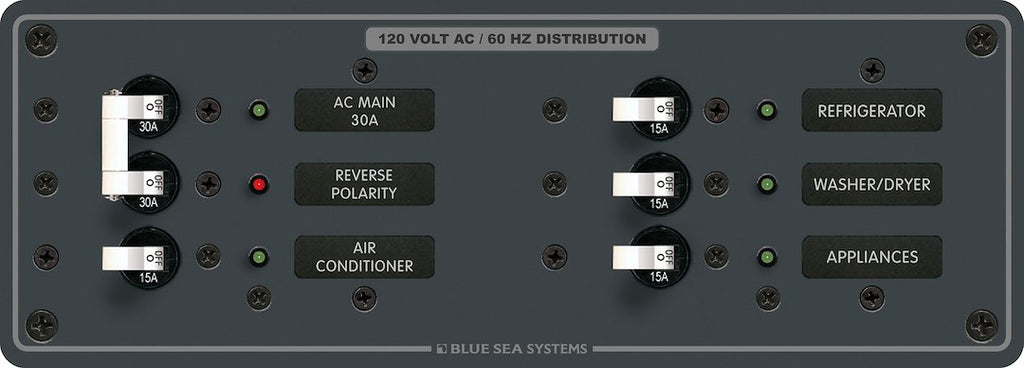

Blue Sea Systems Power Distribution Box (MPN: 8099-BSS)

Reliable AC Main Circuit Breaker Panel for Marine Applications

The Blue Sea Systems Power Distribution Box is designed for use in AC main circuit breaker applications, specifically tailored for marine and specialized vehicle electrical systems. This panel operates at a voltage rating of 120 Volt AC and features a robust aluminum construction, ensuring durability in demanding environments. Measuring 10-1/2 inches in width, 3-3/4 inches in height, and 2-1/2 inches in depth, it is compact yet efficient for various installations.

This distribution box includes essential features such as a red reverse polarity indicating LED and fully pre-wired hot, neutral, and safety ground buses. The backlit circuit label positions enhance visibility, making it easier to identify connections in low-light conditions. Additionally, ON indicating LEDs are installed in all circuit positions, providing clear status indications for operational safety.

With a power rating of 100 Amp and four connection points, this panel is engineered to meet the rigorous demands of marine applications. The absence of a receptacle and GFCI/overload protection makes it a straightforward solution for reliable power distribution without unnecessary complexity.

Features

• Red Reverse Polarity Indicating LED
• All Hot, Neutral And Safety Ground Buses Installed, Fully Pre-Wired
• All Circuit Label Positions Are Backlit On Standard Panels
• ON Indicating LEDs Installed In All Circuit Positions

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 8099-BSS
• Recommended Use: AC Main Circuit Breaker Panel
• Voltage Rating: 120 Volt AC
• Power Rating: 100 Amp
• Receptacle Type: No Receptacle
• Number Of Connections: 4
• GFCI/ Overload Protection: No
• Length (IN): 10-1/2 Inch
• Width (IN): 2-1/2 Inch
• Height (IN): 3-3/4 Inch
• Color: Black
• Material: Aluminum
• UL Listed: No
• With Flip Cover: No

Technical Documents

• 9651.pdf
• 9808.pdf
