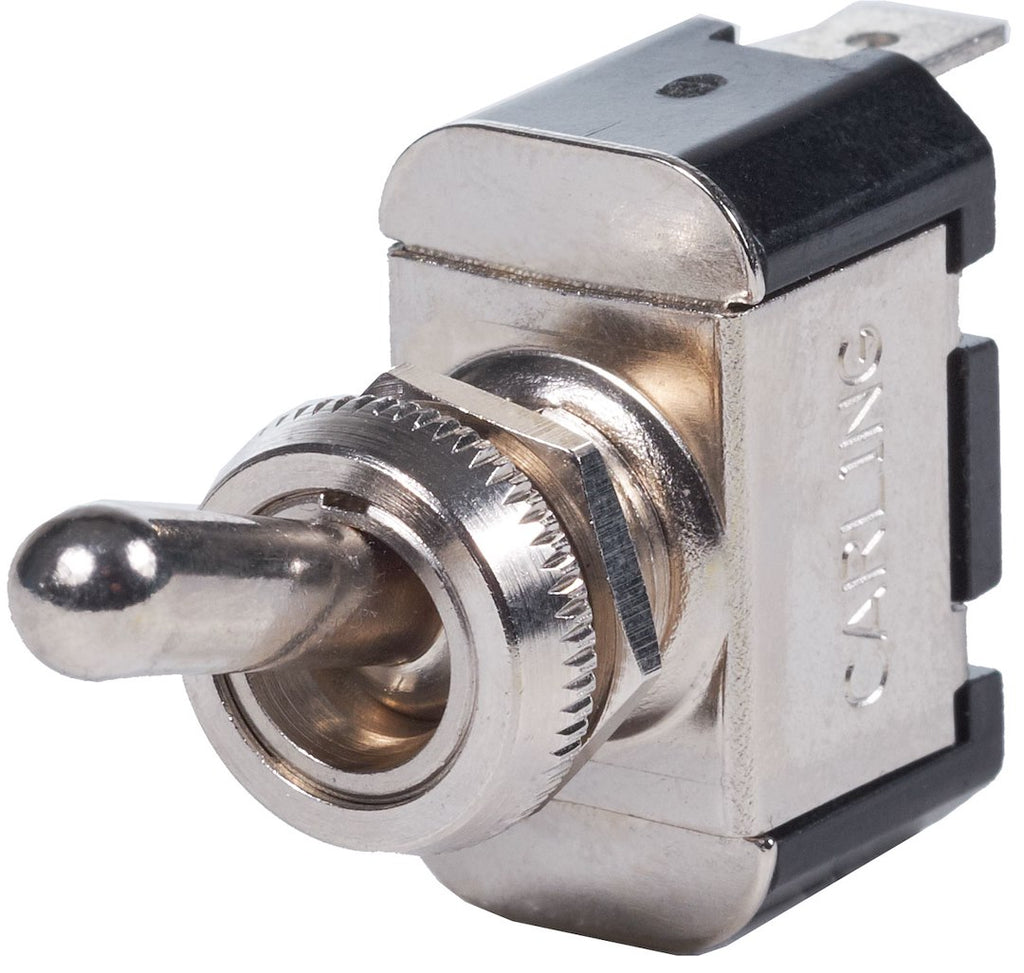

Blue Sea Systems Multi Purpose Switch (MPN: 4150-BSS)

Durable toggle switch for marine and specialized vehicle applications.

The Blue Sea Systems Multi Purpose Switch is engineered for reliable performance in demanding marine and specialized vehicle electrical systems. This toggle switch features a single pole single throw design, providing a straightforward on-off operation. It is constructed from nickel-plated brass and phenolic materials, ensuring non-corrosive durability in harsh environments.

Designed specifically for use with Blue Sea Systems' WeatherDeck panels, this switch can be mounted with a WeatherDeck toggle switch boot, achieving an IP67 rating for temporary immersion in water for up to 30 minutes. With a current rating of 15 amps at 125 volts AC and 10 amps at 250 volts AC, it is suitable for various electrical applications.

The switch is non-illuminated and features two electrical connectors, making it easy to integrate into existing systems. Its robust construction and reliable operation make it a valuable component for any marine or specialized vehicle electrical setup.

Features

• Specially Manufactured By Carling Technologies For Use In Blue Sea Systems' WeatherDeck Panels
• When Mounted With A WeatherDeck Toggle Switch Boot Rated IP67-Temporary Immersion For 30 Minutes
• Nickel-Plated Brass And Phenolic Non-Corrosive Construction
• Developed To Provide Steady Performance And Reliability

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 4150-BSS
• Design: Toggle
• Activation: Constant
• Switch Positions: On-Off

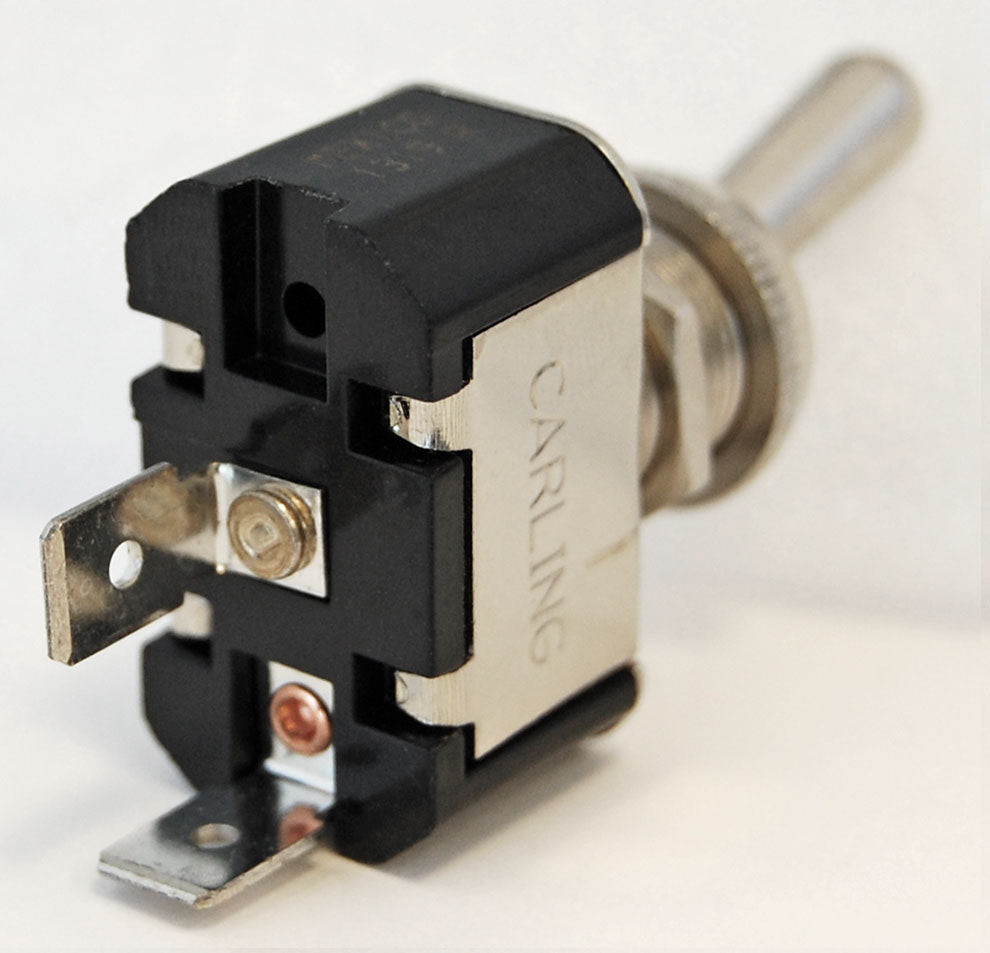

• Number Of Electrical Connectors: 2

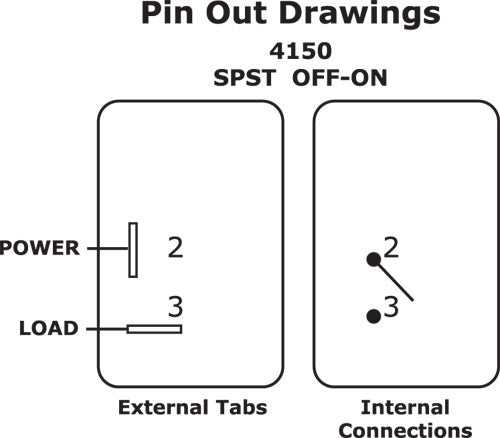

• Operation: Single Pole Single Throw
• Current Rating: 10/ 15 Amp
• Number Of Switches: 1
• Color: Black/ Gray
• Illumination: Non-Illuminated
• Marine: Yes
• Voltage: 12/ 125/ 250 Volt
• Mount Location: Panel Mount
• Connector Gender: Male
• Terminal Type: Blade
• Material: Brass

Technical Documents

• 4150_4154.pdf
• 4150_4154.pdf
