Reliable 6-Circuit Fuse Block for Marine and Vehicle Applications

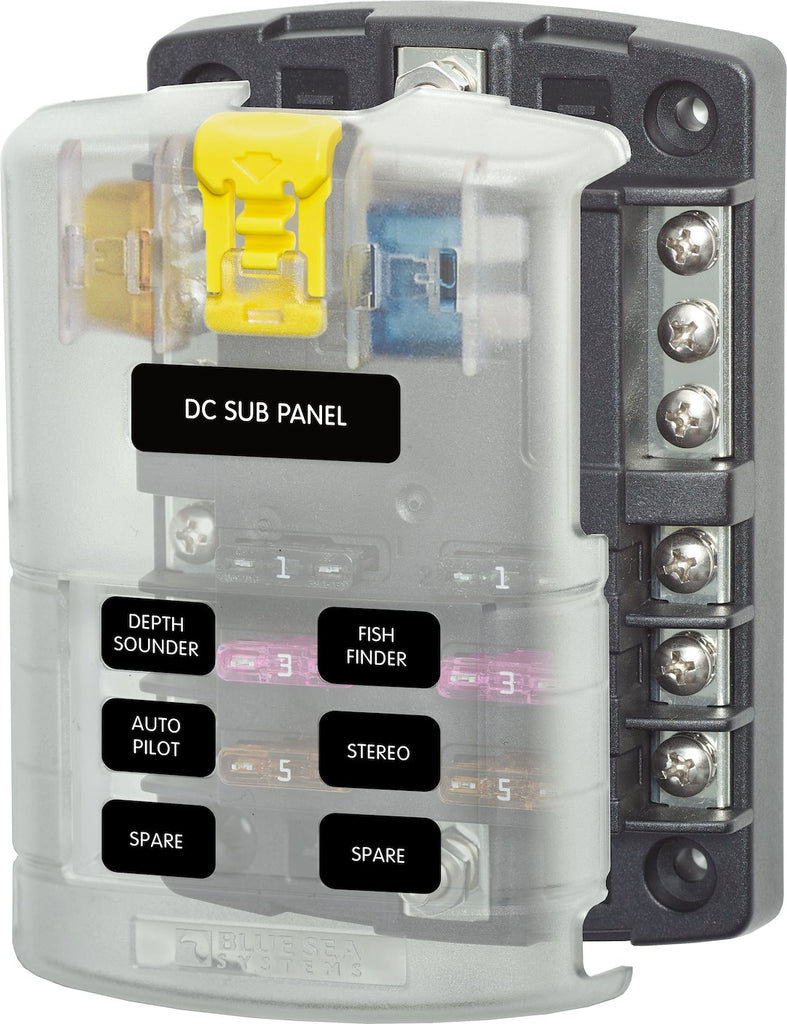

The Blue Sea Systems Fuse Block is designed for use in marine and specialized vehicle electrical systems, providing a robust solution for managing electrical circuits. This fuse block operates at 32 volts DC and supports up to 100 amps per block, with each circuit rated for 30 amps. It utilizes ATO/ATC blade style fuses, ensuring compatibility with widely available fuse types.
Constructed with a one-piece stainless flange nut, the fuse block ensures secure connections, while screw terminals allow for easy wire attachment using ring terminals. The clear insulating cover meets ABYC and USCG insulation requirements, featuring label recesses and storage for two additional fuses. This design enhances safety and organization within electrical systems.
The fuse block includes tin-plated copper buses and fuse clips for improved conductivity and corrosion resistance. Additionally, it features a push-button latch for easy access to fuses, making maintenance straightforward. This product is an essential component for reliable electrical management in demanding environments.
Features
- Common Source Fuse Block
- Screw Terminals For Securing Wires Accept Ring Terminals
- One Piece Stainless Flange Nut Ensure Safe And Secure Connections
- Clear Insulating Cover With Label Recesses And Storage For Two Fuses Satisfies ABYC/USCG Insulation Requirements
- Tin Plated Copper Buses And Fuse Clips
- Fuse Blocks With Covers Features Write On Circuit Labels Small Format Standard And Custom Labels Available
- Easy To Open Push Button Latch For Easy Access To Fuses
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 5025-BSS
- Power Rating: 32 Volt
- Type: In-Line
- Circuit Type: 6 Circuit Positions
- Fuse Type: ATC/ ATO
- Status Indicator Type: No Status Indicator
- Cover Style: Protective Cover
- Includes Flashers: No
- Includes Fuses: No
- Includes Horn Relay: No
- Includes Mounting Brackets: No
- Includes Terminals: Yes
Technical Documents
