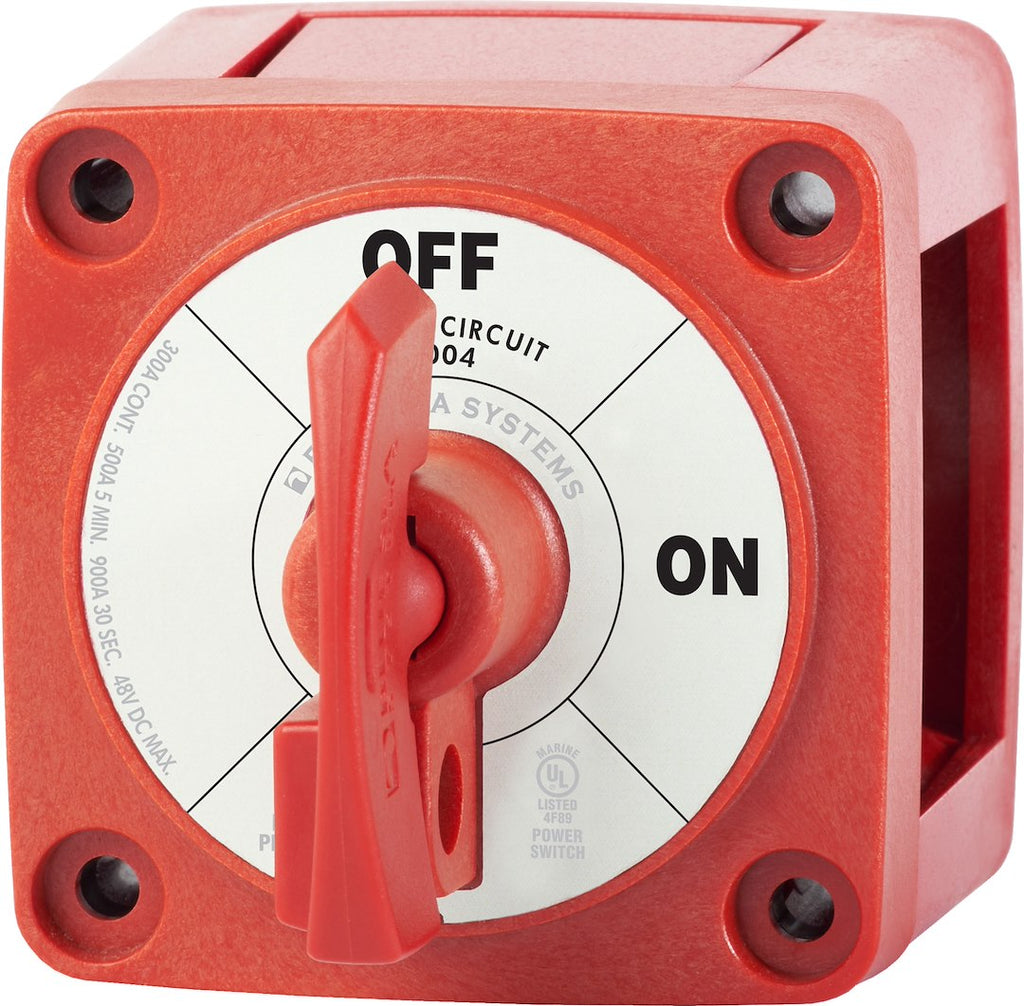

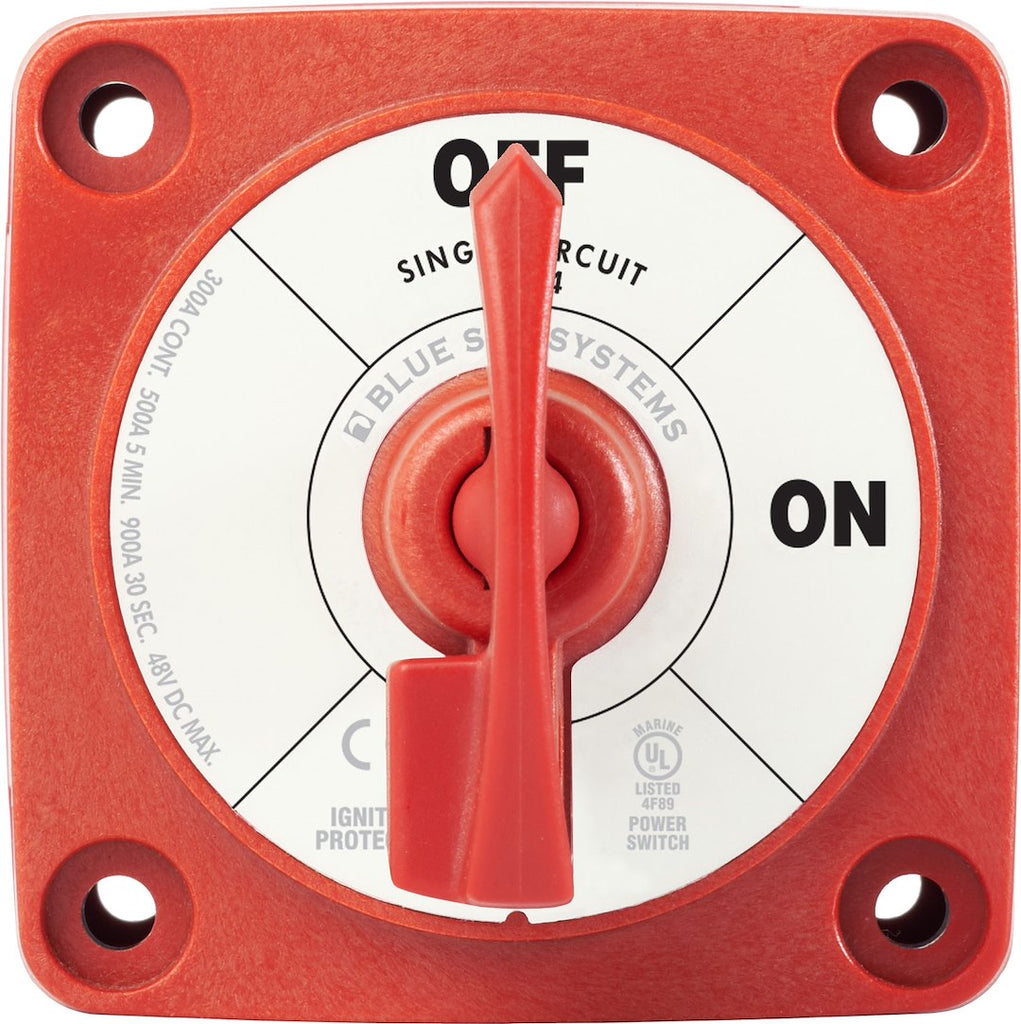

Blue Sea Systems Battery Disconnect Switch (MPN: 6004-BSS)

Reliable 48 Volt DC switch for marine and vehicle applications.

The Blue Sea Systems Battery Disconnect Switch is engineered for robust performance in marine and specialized vehicle electrical systems. This switch operates at 48 volts DC and features a single circuit ON-OFF design, capable of handling continuous currents up to 300 amps. Its construction includes tin-plated copper studs that ensure maximum conductivity and resistance to corrosion, making it suitable for demanding environments.

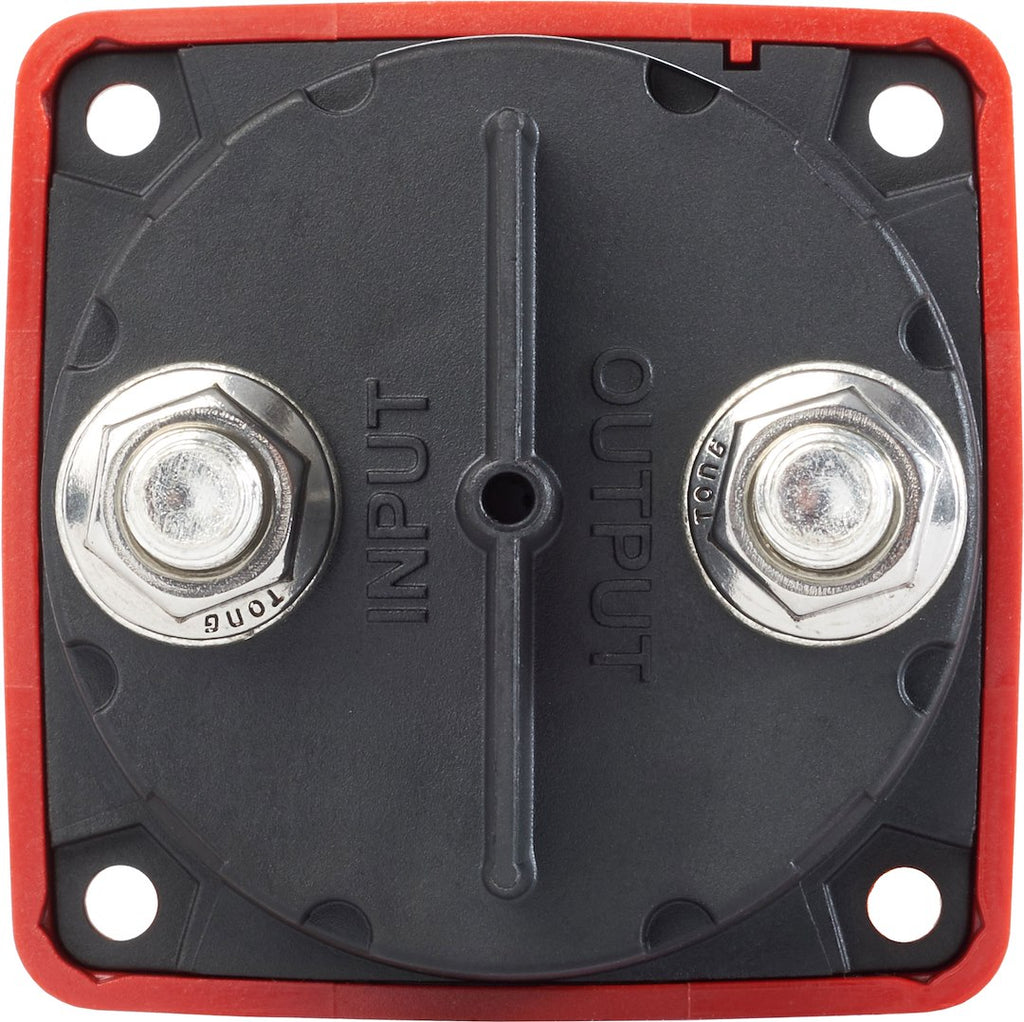

The switch is designed with user convenience in mind, featuring a rotary activation type with a key for secure operation. The studs accept 3/8 inch (M10) ring terminals and have a 7/8 inch length to accommodate multiple cable connections. The one-piece terminal stud design prevents loosening over time, while the stainless flange nuts provide safe and secure connections.

Additionally, the isolating cover protects the rear contacts, and breakout tabs allow for flexible wire access in any direction. This battery disconnect switch is a critical component for maintaining safety and efficiency in electrical systems.

Features

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• Studs Accept 3/8 Inch (M10) Ring Terminals
• 7/8 Inch Stud Length Accepts Multiple Cable Terminals
• Blue Sea Systems One-Piece Terminal Stud Design Never Loosens Over Time
• One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 6004-BSS
• Type: Rotary With Key
• Activation Type: Manual
• Continuous Ampere Rating (A): 300 Amp
• Base Diameter (IN): 2-5/8 Inch
• Installation Type: Bolt-On

Technical Documents

• 6004_INS.pdf
• 6004_BUL.pdf
• 6004_BUL_1.pdf
