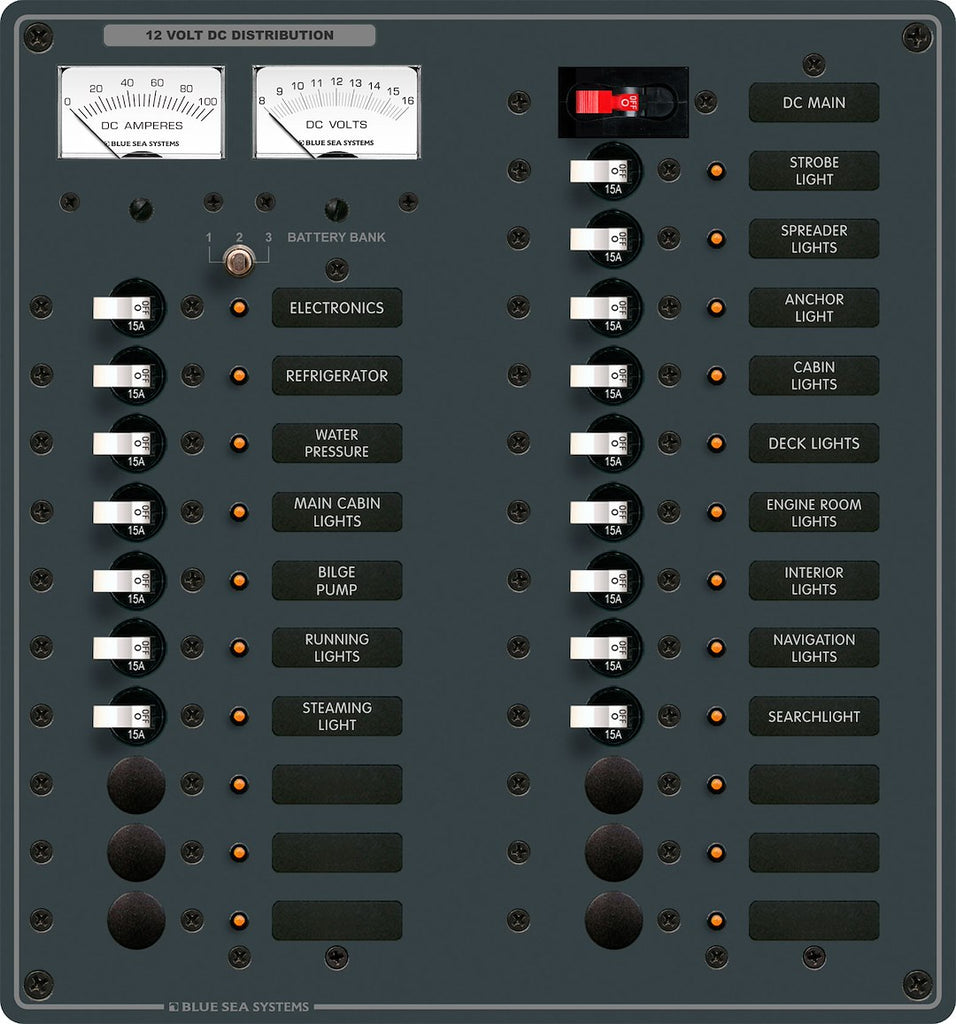

Blue Sea Power Distribution Box (MPN: 8380-BSS)

Efficient DC circuit management with integrated monitoring features.

The Blue Sea Power Distribution Box is designed for effective management of DC electrical systems. This panel operates at 12 volts DC and supports a maximum power rating of 100 amps, making it suitable for various applications. Constructed from traditional metal, it features a compact design with dimensions of 10-1/2 inches in width, 11-1/4 inches in height, and 3 inches in depth, ensuring it fits in tight spaces while providing robust performance.

This distribution box includes a main circuit breaker rated at 100 amps and 22 additional positions for branch circuit breakers, allowing for extensive circuit management. Each panel is equipped with backlit circuit label positions for easy identification, and ON indicating LEDs are installed in all circuit positions to enhance visibility. The inclusion of a basic DC panel label set with 30 labels facilitates organized labeling of circuits.

For enhanced functionality, the panel features fully pre-wired positive, negative, and grounding buses, simplifying installation. Additionally, panels with analog meters can be upgraded to support 24 volts using compatible components. The design also accommodates toggle switches for connecting up to three battery banks, providing flexibility in power distribution.

Features

• All Positive, Negative And Grounding Buses Installed, Fully Pre-Wired
• Panels With Meters Include Toggle Switch For Mounting Up To 3 Battery Banks
• All Circuit Label Positions Are Backlit On Standard Panels
• ON Indicating LEDs Installed In All Circuit Positions

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 8380-BSS
• Voltage Rating: 12 Volt
• Power Rating: 100 Ampere
• Length (IN): 3 Inch
• Width (IN): 10-1/2 Inch
• Height (IN): 11-1/4 Inch
• Color: Black
• Material: Metal

Technical Documents

• 6680.pdf
• 6681.pdf
