Reliable circuit breaker panel for marine and outdoor applications.

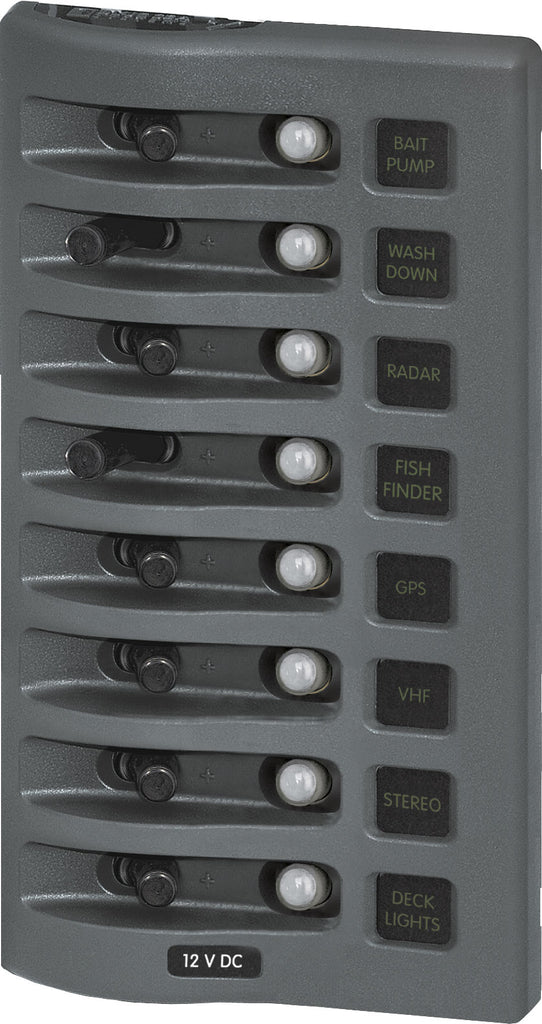

The Blue Sea Power Distribution Box is designed for efficient management of electrical circuits in marine environments. This panel features eight positions for circuit breakers, accommodating up to 15 amps at 12 volts DC and 9 amps at 24 volts DC. Constructed from reinforced polycarbonate, it ensures durability and resistance to harsh weather conditions, making it suitable for flybridge and open cockpit applications.
With an IP67 rating, this power distribution box can withstand temporary immersion in water, providing peace of mind in wet environments. The independent label backlighting enhances visibility in low-light conditions, allowing users to easily identify switch positions. Additionally, the panel is compatible with Blue Sea Systems digital dimmers, offering flexibility in lighting control.
Measuring 4-1/4 inches in width, 7.7 inches in height, and 3-1/2 inches in depth, this compact design allows for versatile mounting options in various orientations. The inclusion of green LEDs further aids readability, ensuring that all labels are illuminated when the panel is powered. This product is an essential component for reliable electrical management in marine and outdoor settings.
Features

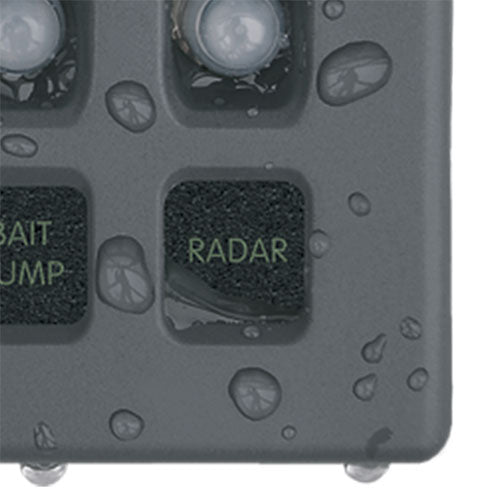

- Rated IP67-Temporary Immersion For 30 Minutes

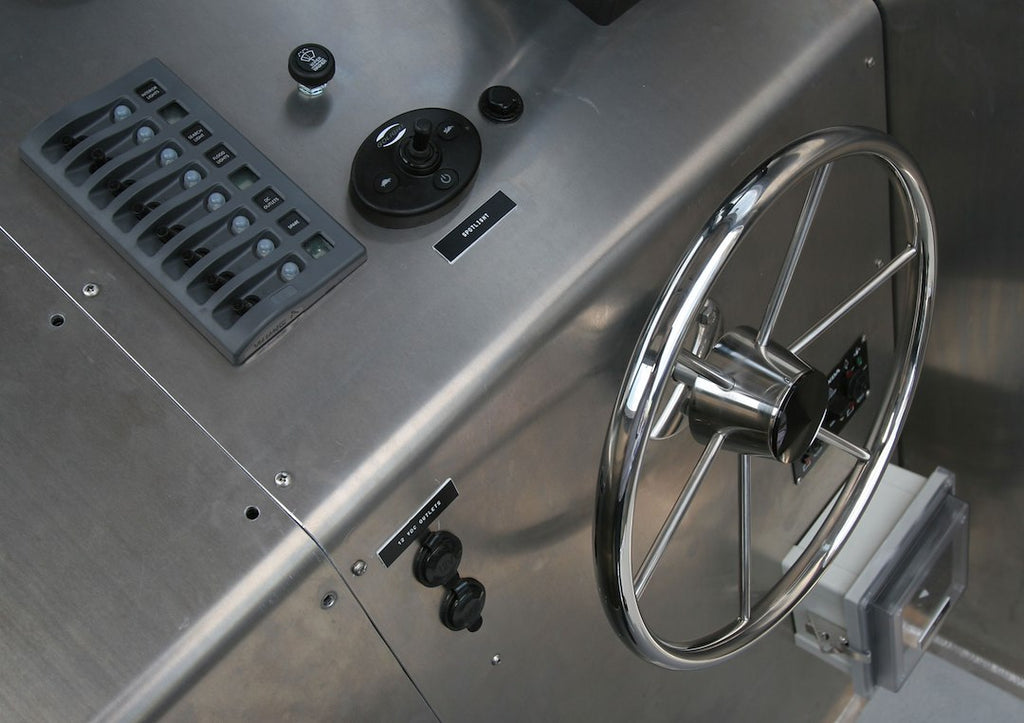

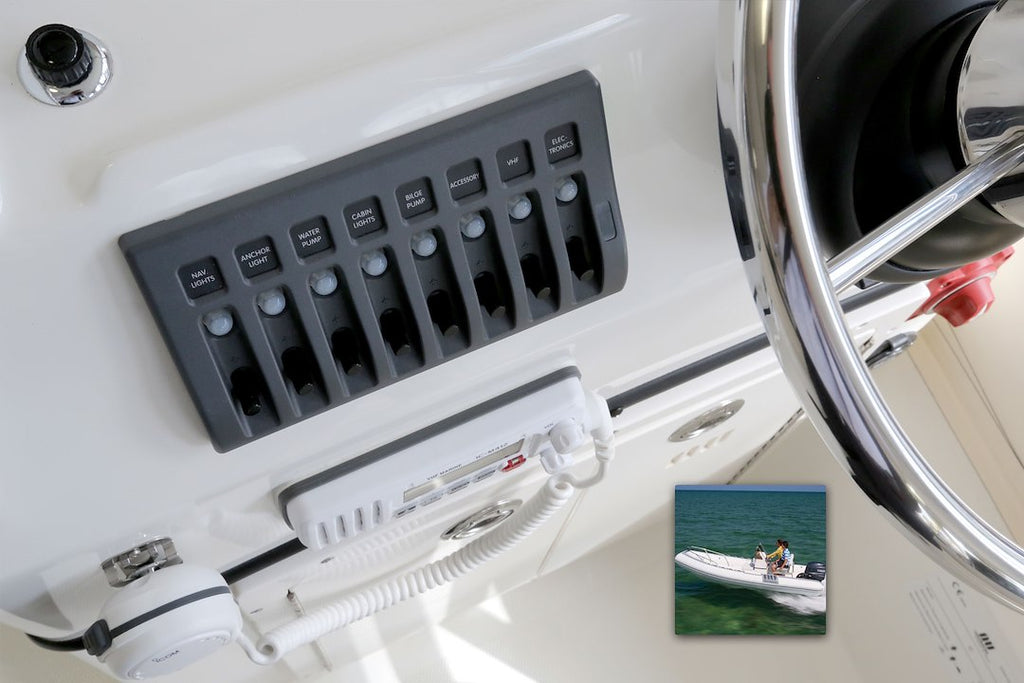

- Designed For Flybridge And Open Cockpit Applications
- Independent Label Backlighting Allows Switching And Dimming
- Compatible With All Blue Sea Systems Digital Dimmers
- Each Panel Can Be Mounted In Four Different Orientations
- Green LEDs Aid Low-Light Readability
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 4378-BSS

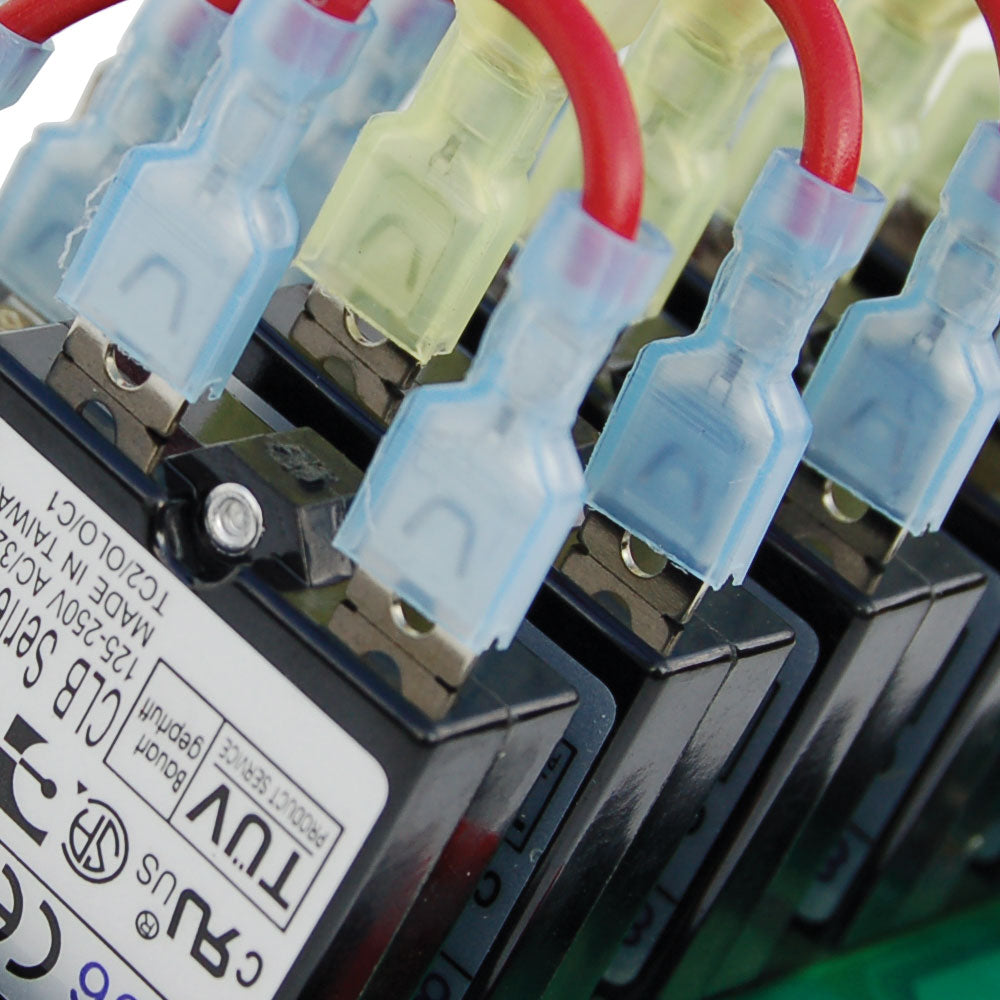

- Recommended Use: CLB Circuit Breakers Panel
- Voltage Rating: 12 Volt
- Power Rating: 15 Ampere
- Receptacle Type: No Receptacle
- Number Of Connections: 8
- GFCI/ Overload Protection: No
- Length (IN): 3-1/2 Inch
- Width (IN): 4-1/2 Inch
- Height (IN): 7.7 Inch
- Color: Gray
- Material: Polycarbonate
- UL Listed: No
- With Flip Cover: No
