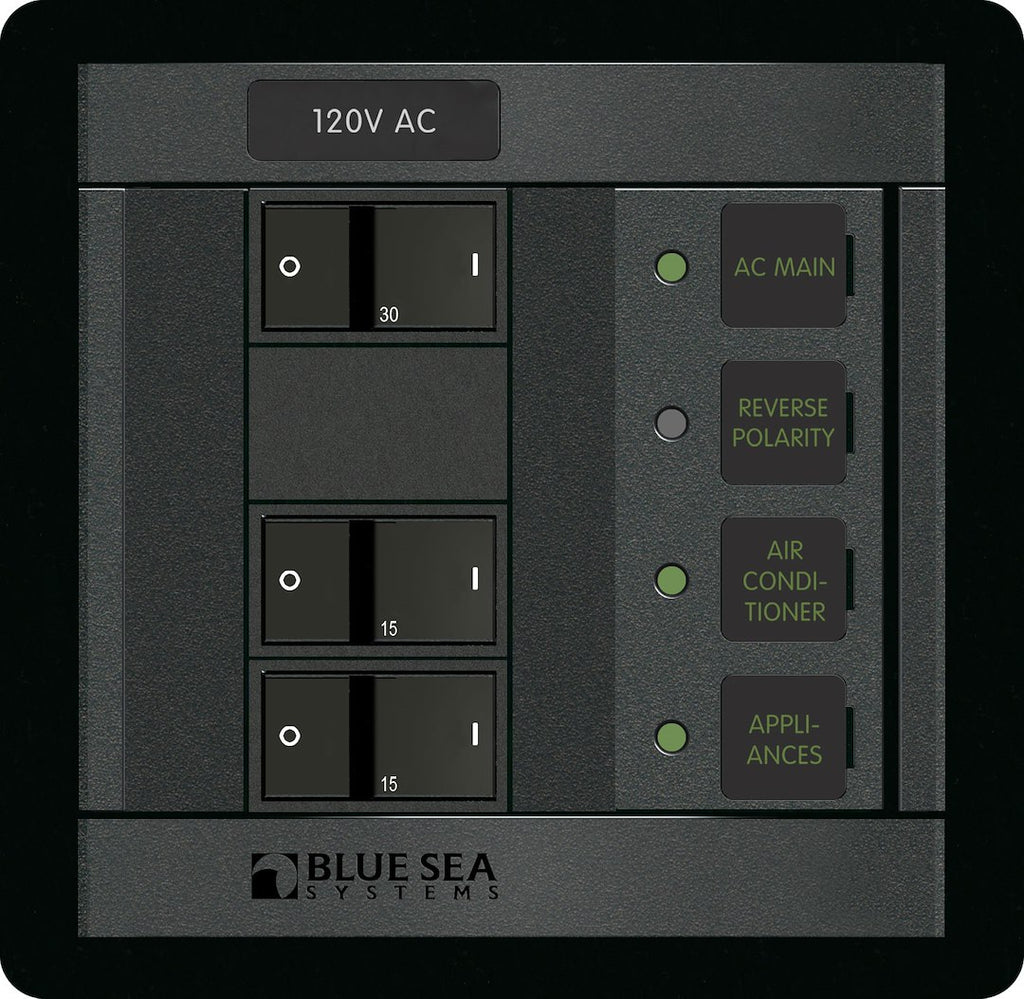

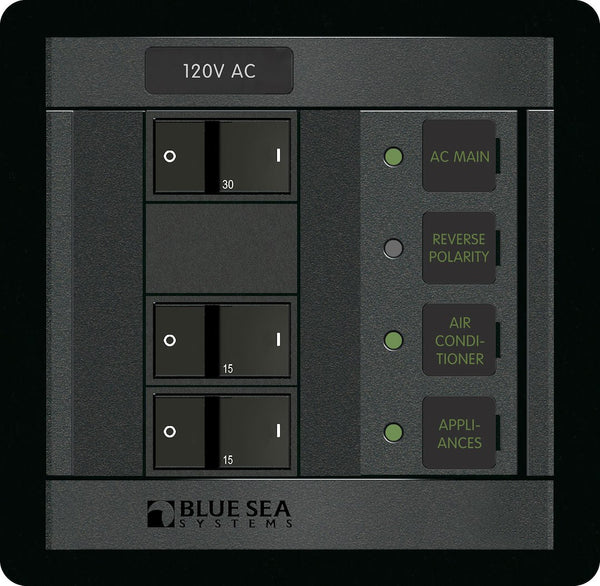

Blue Sea Power Distribution Box (MPN: 1214-BSS)

Durable AC Main Circuit Breaker Panel for Marine Applications

The Blue Sea Power Distribution Box is engineered specifically for the demanding conditions of marine environments. This AC main circuit breaker panel operates at 120 volts and supports a maximum current of 30 amps, making it suitable for various electrical applications on boats and other marine vessels. The compact design measures 4.88 inches in width, 4.75 inches in height, and 3 inches in depth, allowing for easy installation in tight spaces.

This panel features a 360 panel system with two circuit positions, ensuring efficient power distribution. Each circuit position is equipped with backlit labels and ON indicating LEDs, providing clear visibility and ease of use. The included basic AC label kit contains 30 black square labels, allowing for customized labeling of circuits. The panel is designed to accommodate both single pole 15 amp branch breakers and a double pole 30 amp main breaker, enhancing its versatility.

Constructed from durable aluminum, the Blue Sea Power Distribution Box is built to withstand the rigors of marine use. While it does not include GFCI or overload protection, its robust design and integrated features make it a reliable choice for managing electrical systems on boats.

Features

• All Circuit Label Positions Are Backlit
• ON Indicating LEDs Installed In All Circuit Positions
• Features 4206—Square Format Label Set
• 360 Panel System

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 1214-BSS
• Recommended Use: AC Main Circuit Breaker Panel
• Voltage Rating: 120 Volt
• Power Rating: 30 Ampere
• Receptacle Type: Single Pole 15 Amps (Branch)/ A-Series Flat Rocker Circuit Breaker - Double Pole 30 Amps (Main)
• Number Of Connections: 2
• GFCI/ Overload Protection: No
• Length (IN): 3 Inch
• Width (IN): 4.88 Inch
• Height (IN): 4-3/4 Inch
• Color: Black
• Material: Aluminum
• UL Listed: No
• With Flip Cover: No

Technical Documents

• 990343760.pdf
