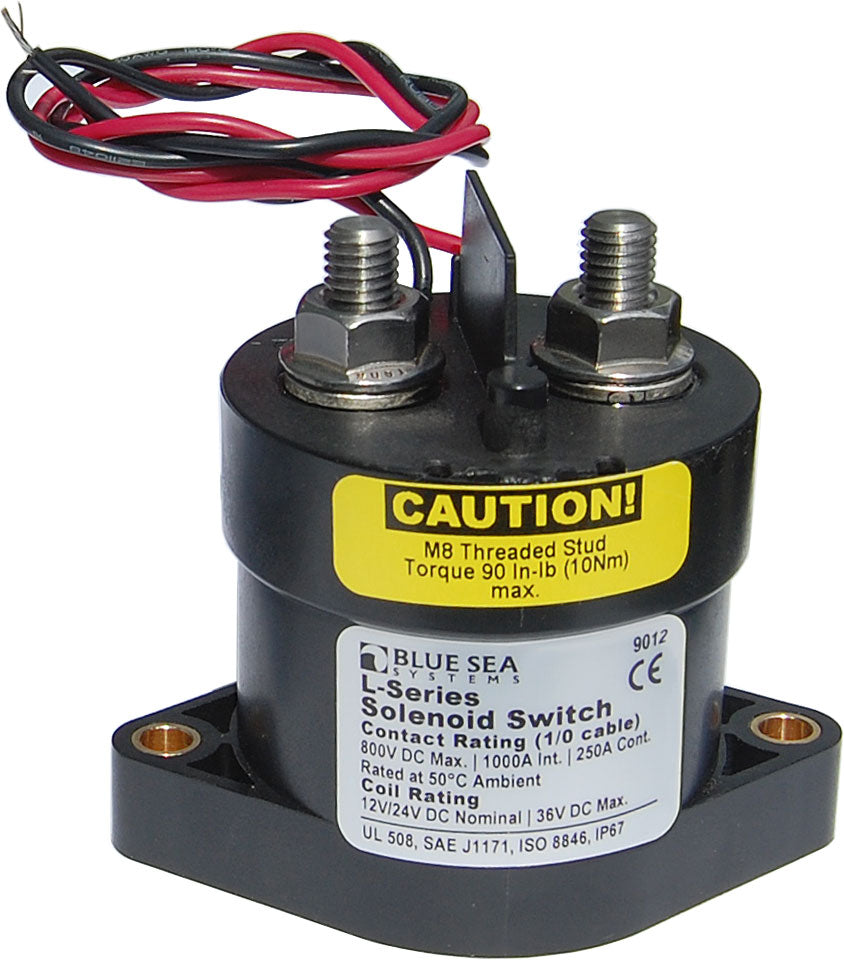

Reliable solenoid switch for various medium-amp DC applications.
The Blue Sea L Series Winch Solenoid is designed for reliable performance in a variety of medium-amp DC applications, including switching DC subpanels, thrusters, windlass, and inverters. This solenoid features a continuous duty, single pole single throw (SPST) normally open configuration, ensuring efficient operation with minimal power draw. Its hermetically sealed contacts provide a vaporproof design, making it suitable for installation in challenging environments, including gasoline powered boats where ignition protection is essential.
With a voltage rating of 12/24 volts DC and a continuous rating of 250 amps, this solenoid is equipped with stainless steel M8 terminal studs for secure connections. The coil control circuit is engineered to minimize heating and amperage draw, enhancing the longevity and reliability of the device. The solenoid can be activated by a low amperage on-off switch, allowing for flexible installation options.
The Blue Sea L Series Winch Solenoid is built to withstand harsh conditions, featuring an IP67 rating for dust and water resistance. This makes it an excellent choice for marine applications and other environments where durability is critical. Its straightforward installation process, estimated at just half an hour, allows for quick integration into existing systems.
Features
- Continuous Duty, SPST - Normally Open
- Hermetically Sealed Contacts/ Vaporproof
- Ignition Protected: Safe For Installation Aboard Gasoline Powered Boats
- Activated By A Low Amperage On-Off Switch Mounted Anywhere
- Coil Control Circuit Minimizes Heating And Amperage Draw
- No External Coil Suppression Required
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 9012-BSS
- Compatibility: Switching DC Subpanels/ Thrusters/ Windlass/ Inverters And Other Medium-Ampere DC Loads
- Number Of Leads: 2
- Voltage: 12/24 Volt
- Estimated Install Time (Hours): 0.5
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
