Robust design for reliable circuit protection in marine and vehicle systems.

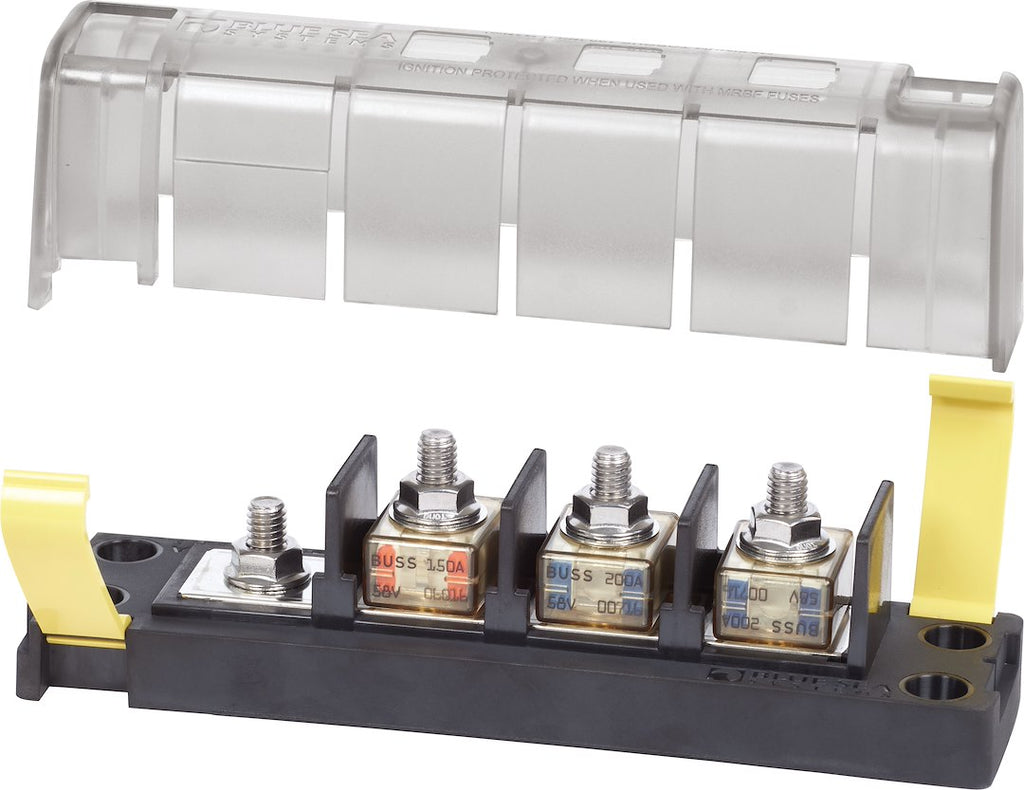

The Blue Sea Fuse Block is engineered to provide reliable protection for electrical circuits in marine and vehicle applications. With a power rating of 58 volts and a capacity of 300 amps per block, this fuse block accommodates three MRBF terminal fuses, ensuring consolidated high amperage circuit protection. Its surface mount design allows for versatile wiring options, enabling all wires to exit from a single side, which simplifies installation and maintenance.
This fuse block features a clip-on insulating cover that meets ABYC and USCG insulation requirements, enhancing safety during operation. The one-piece stainless flange nuts ensure secure connections, minimizing the risk of electrical failures. Additionally, label recesses are included for easy circuit identification, allowing for efficient management of electrical systems.

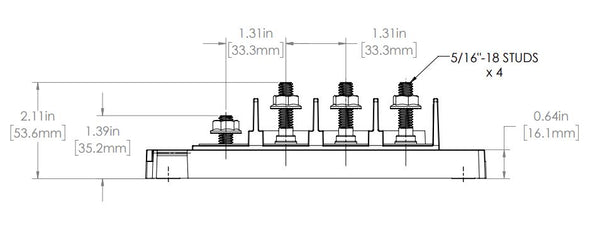

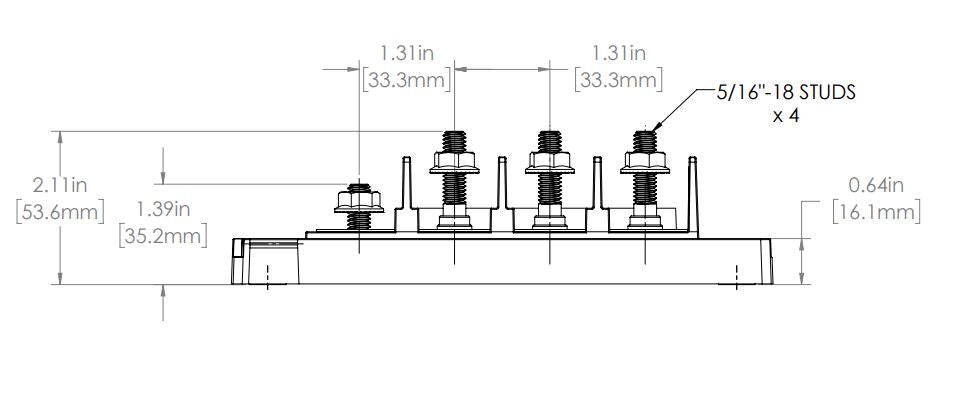

Measuring 7.46 inches in length, 2 inches in width, and 2.4 inches in height, the Blue Sea Fuse Block is compact yet robust, making it suitable for various applications. Its design is focused on providing safe power distribution to multiple loads from a single source, making it an essential component for any electrical system.
Features
- Accommodates Three MRBF Fuses For Consolidated High Amperage Circuit Protection

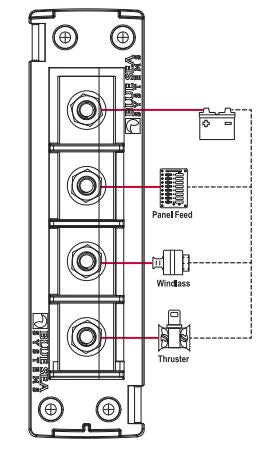

- Safely Provides Power To Three Loads From A Single Source
- Clip-On Insulating Cover Satisfies ABYC And USCG Insulation Requirements
- Versatile Wiring Options Allow All Wires To Come Out A Single Side
- Label Recesses Accommodate Blue Sea Systems Square Format Labels For Easy Circuit Identification
- One-Piece Stainless Flange Nuts Ensure Safe and Secure Connections
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 5196-BSS
- Power Rating: 58 Volts/ 300 Amps Per Block/ 240 Amps Per Circuit
- Type: Surface Mount
- Circuit Type: 3 Circuit Positions
- Fuse Type: Three MRBF Terminal
- Status Indicator Type: No Status Indicator
- Cover Style: Protective Cover
- Includes Flashers: No
- Includes Fuses: No
- Includes Horn Relay: No
- Includes Mounting Brackets: Yes
- Includes Terminals: Yes
