Blue Sea Fuse Block (MPN: 5045-BSS)

Compact circuit protection for ATO and ATC fuses with secure ignition protection.

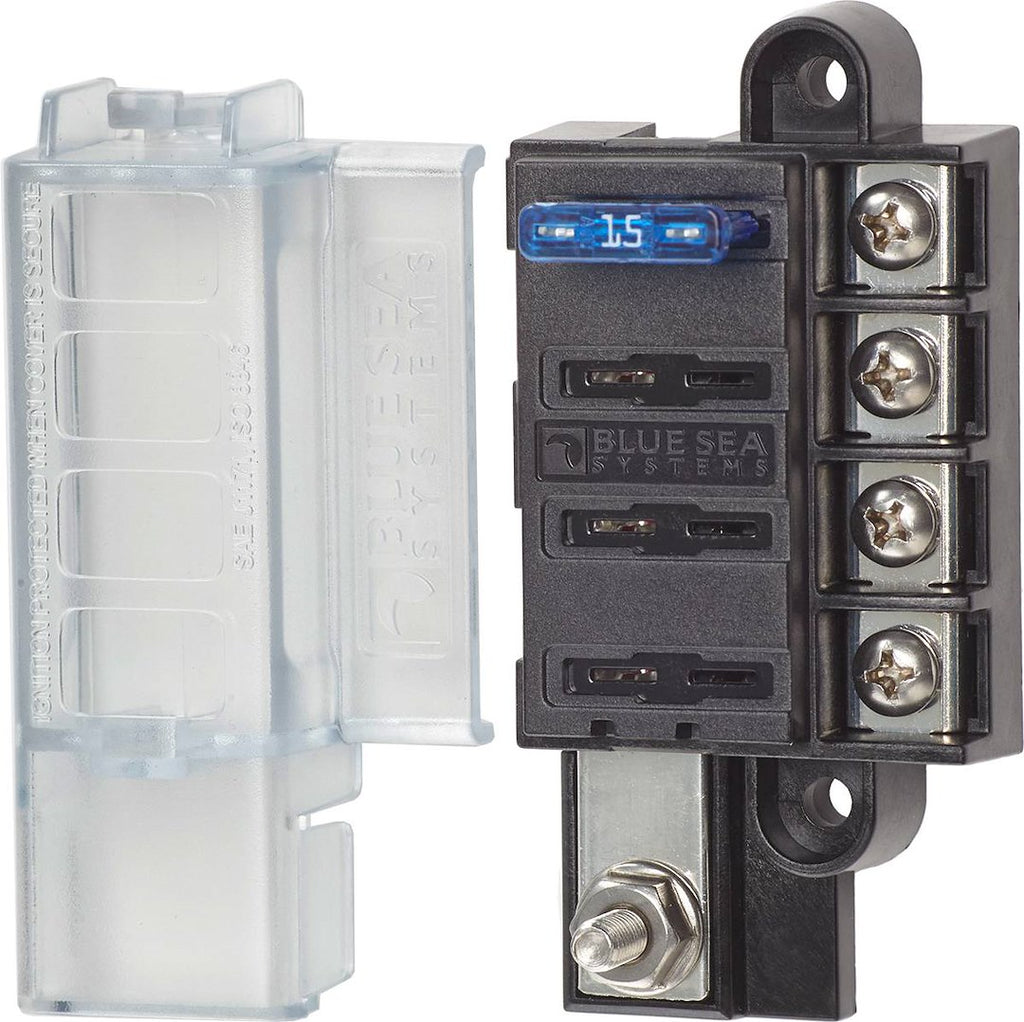

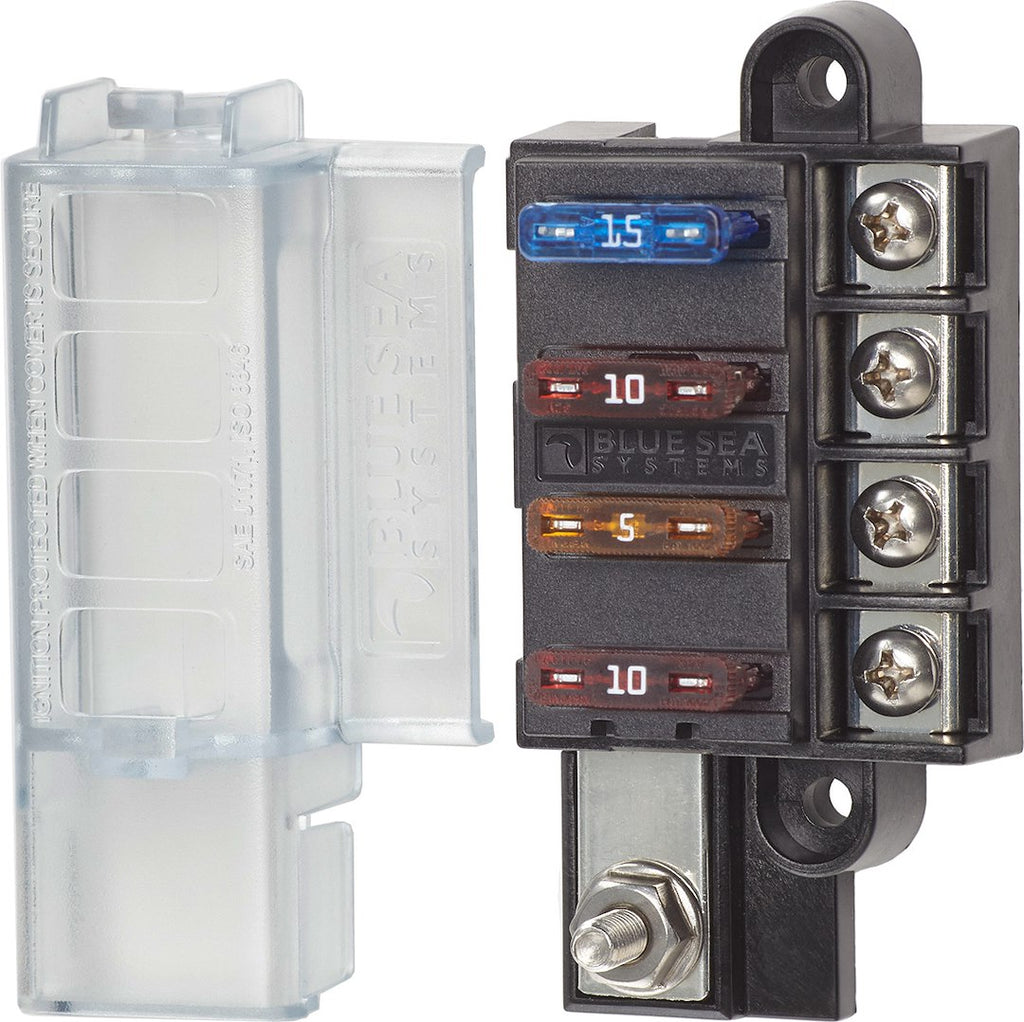

The Blue Sea Fuse Block is designed to provide reliable surface mount circuit protection for ATO and ATC fuses within a compact footprint. This unit operates at 32 volts and supports up to 100 amps per block and 30 amps per circuit, making it suitable for various applications. The fuse block features tin-plated copper buses and fuse clips, ensuring optimal conductivity and durability.

With a single side design, the fuse block allows for wire entry from one side, minimizing the overall footprint while maintaining ease of installation. It is ignition protected when the cover is secured, meeting ISO 8846 and SAE J1171 standards for use in gasoline engine compartments. The insulating cover also complies with ABYC and USCG insulation requirements, enhancing safety in marine environments.

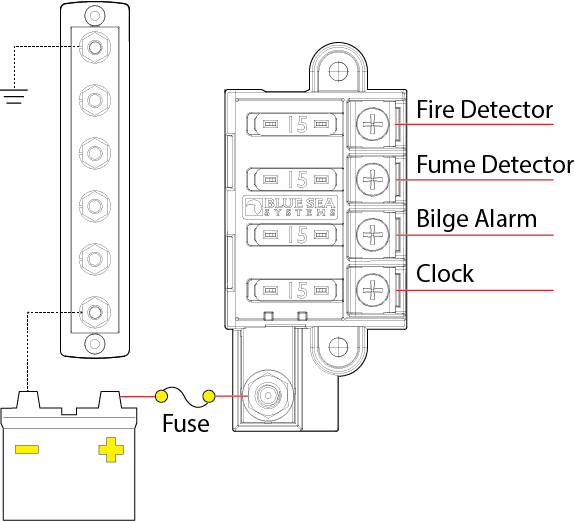

This fuse block includes four circuit positions and accepts ring or snap fork type terminals, providing versatility in wiring options. It does not include fuses or mounting brackets, allowing users to customize their setup according to specific needs. The Blue Sea Fuse Block is an essential component for efficient and safe electrical management.

Features

• Tin-Plated Copper Buses And Fuse Clips
• Single Side Design Allows Wire Entry From One Side To Minimize Footprint
• Accepts Ring Or Snap Fork Type Terminals
• Provides Surface Mount Circuit Protection

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 5045-BSS
• Power Rating: 32 Volt/ 100 Ampere Per Block/ 30 Ampere Per Circuit
• Type: Compact
• Circuit Type: 4 Circuit Positions
• Fuse Type: ATC/ ATO
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes
