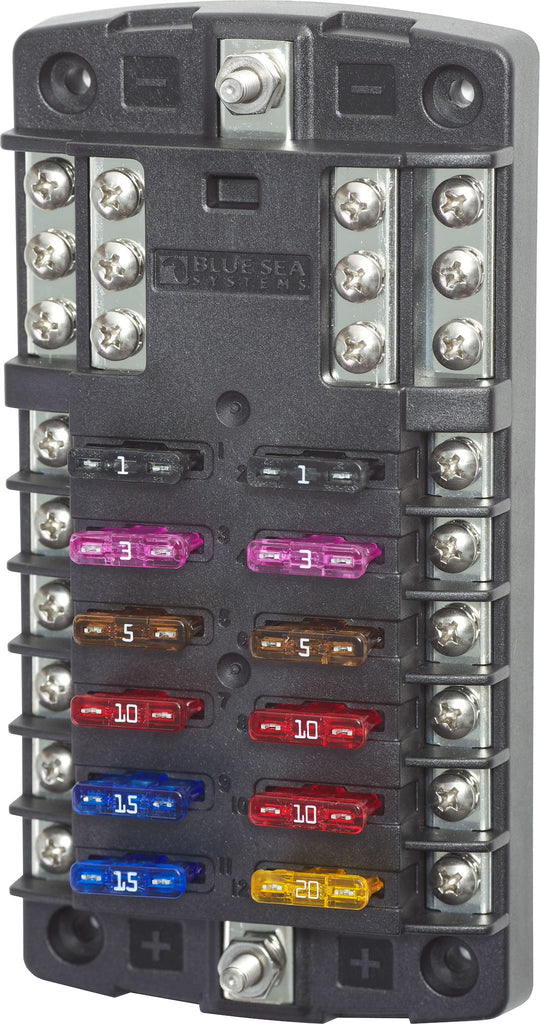

Blue Sea Fuse Block (MPN: 5031-BSS)

Robust 12-Circuit Fuse Block for Marine and Vehicle Applications

The Blue Sea Fuse Block is designed to provide reliable protection for electrical circuits in marine and vehicle applications. With a power rating of 32 Volt DC and a capacity of 100 Ampere per block, this fuse block accommodates up to 12 circuits with a negative bus, ensuring efficient distribution of electrical power. It utilizes ATO and ATC blade style fuses, which are known for their fast-acting circuit protection capabilities, making it suitable for inverters and other sensitive electronics.

Constructed with tin-plated copper buses and fuse clips, the Blue Sea Fuse Block offers enhanced conductivity and corrosion resistance. The design allows for easy installation with screw mount capabilities and accepts ring or snap fork type terminals. Additionally, the fuse block can be used for 24-hour circuits, providing flexibility in various applications.

Available with or without a protective cover, this fuse block meets the demands of both professional and DIY electrical installations. Its robust construction and thoughtful design make it a dependable choice for those seeking to safeguard their electrical systems.

Features

• Positive Distribution Bus With Number 10 To 32 Stud
• Can Be Used For 24-Hour Circuits
• Models Available With Or Without A Cover
• Tin-Plated Copper Buses And Fuse Clips
• Accepts Ring Or Snap Fork Type Terminals
• Accepts ATO And ATC Fast Acting Blade Fuses

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 5031-BSS
• Power Rating: 32 Volt DC/ 100 Ampere Per Block/ 30 Ampere Per Circuit
• Type: Screw Mount
• Circuit Type: 12 Circuits And Negative Bus
• Fuse Type: ATC/ ATO
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Technical Documents

• Wiring-Diagram-5026_5031.pdf
• Wiring-Diagram-5026_5031.pdf
