Blue Sea Fuse Block (MPN: 5029-BSS)

Reliable 12-Circuit Fuse Block for Marine Applications

The Blue Sea Fuse Block is designed for use in marine environments, providing a robust solution for managing electrical circuits. With a power rating of 32 volts and 100 amps per block, this fuse block supports up to 30 amps per circuit, making it suitable for various applications. It utilizes ATO and ATC blade style fuses, ensuring compatibility with widely used fuse types in the industry.

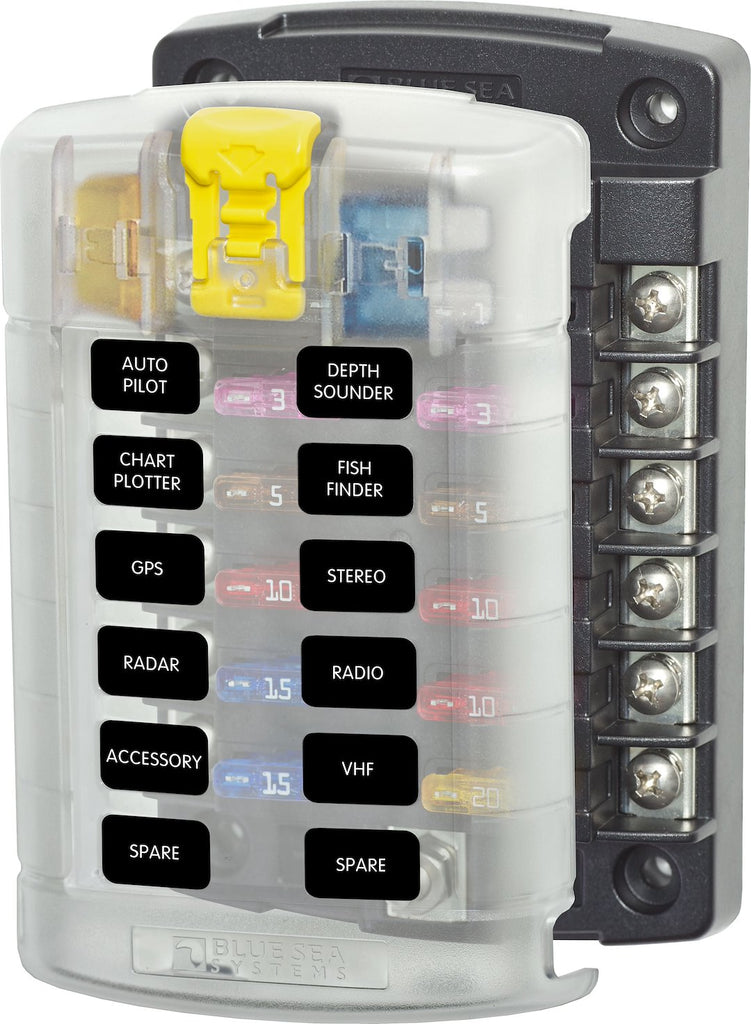

This fuse block features a protective cover that meets ABYC and USCG insulation requirements, enhancing safety and reliability. The cover includes a push button latch for easy access to fuses, along with storage for two spare fuses. Additionally, it has label recesses that accommodate Blue Sea Systems Small Format Labels for clear circuit identification.

Included with the fuse block are 20 write-on circuit labels, allowing for straightforward organization of circuits. The design accepts ring or snap fork type terminals, facilitating easy installation. Constructed with tin-plated copper buses and fuse clips, this fuse block ensures optimal conductivity and durability in demanding environments.

Features

• Fuse Blocks With Covers Include 20 Write-On Circuit Labels
• Can Be Used For 24-Hour Circuits
• Accepts Ring Or Snap Fork Type Terminals
• Accepts ATO And ATC Fast Acting Blade Fuses
• Tin-Plated Copper Buses And Fuse Clips

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 5029-BSS
• Power Rating: 32 Volt/ 100 Ampere Per Block/ 30 Ampere Per Circuit
• Type: In-Line
• Circuit Type: 12 Circuit Positions
• Fuse Type: ATC/ ATO
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: No

Technical Documents

• Wiring-Diagram-5029_5034.pdf
