Blue Sea Fuse Block (MPN: 5026-BSS)

Reliable 12 Circuit Fuse Block for 32 Volt DC Systems

The Blue Sea Fuse Block is designed for 32 Volt DC applications, providing a robust solution for managing electrical circuits. With a capacity of 100 Amps per block and 30 Amps per circuit, this fuse block accommodates ATO and ATC blade style fuses, ensuring compatibility with a wide range of fuses. The unit features a protective cover that meets ABYC and USCG insulation requirements, enhancing safety and reliability in marine environments.

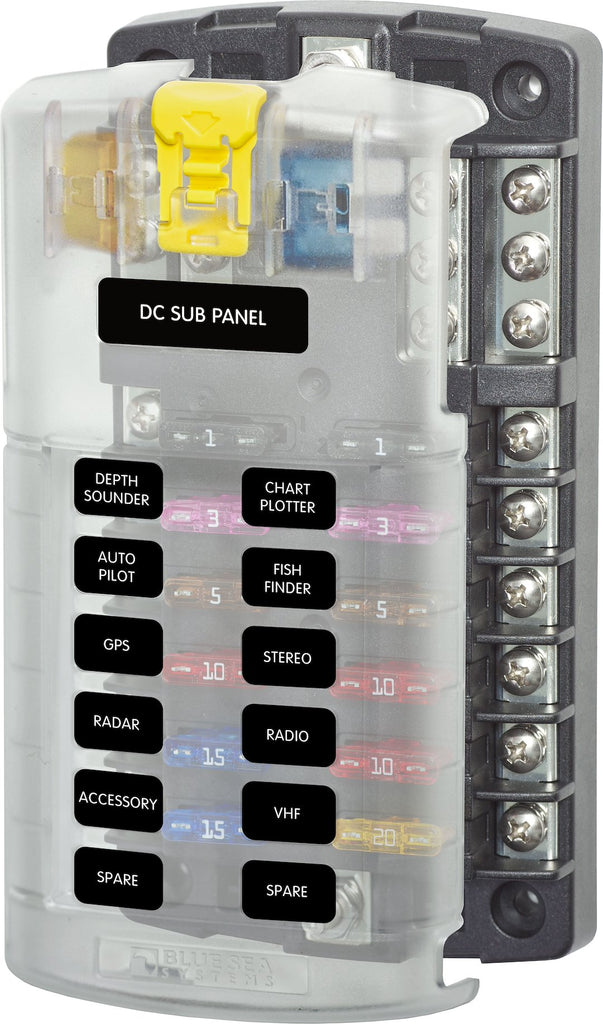

This fuse block includes 12 circuit positions, allowing for efficient organization of electrical connections. The cover is equipped with a push button latch for easy access to fuses, and it also provides storage for two spare fuses. Additionally, the label recesses are designed to accept Blue Sea Systems Small Format Labels, facilitating clear circuit identification.

Constructed with tin-plated copper buses and fuse clips, the Blue Sea Fuse Block ensures excellent conductivity and durability. It accepts both ring and snap fork type terminals, making installation straightforward. This fuse block is suitable for 24-hour circuits, making it a versatile choice for various applications.

Features

• Tin-Plated Copper Buses And Fuse Clips
• Accepts Ring Or Snap Fork Type Terminals
• Fuse Blocks With Covers Features 20 Write-On Circuit Labels
• Can Be Used For 24-Hour Circuits

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 5026-BSS
• Power Rating: 32 Volt/ 100 Ampere Per Block/ 30 Ampere Per Circuit
• Type: Stud Mount
• Circuit Type: 12 Circuit Positions
• Fuse Type: ATC/ ATO
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes
