Reliable circuit protection for inverters and electronics with Class T fuses.

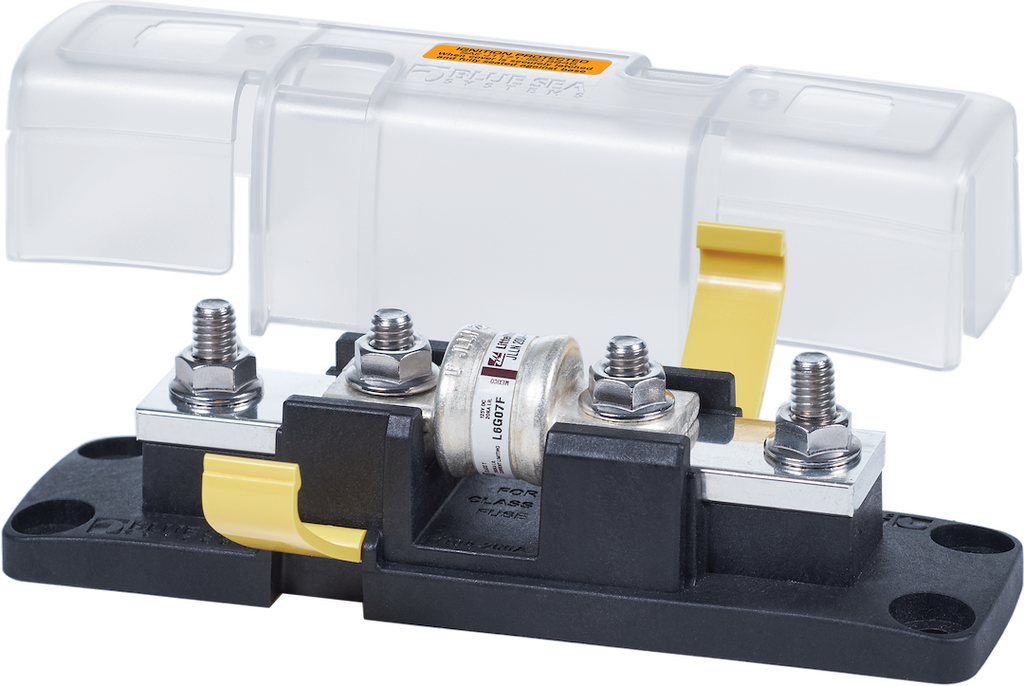

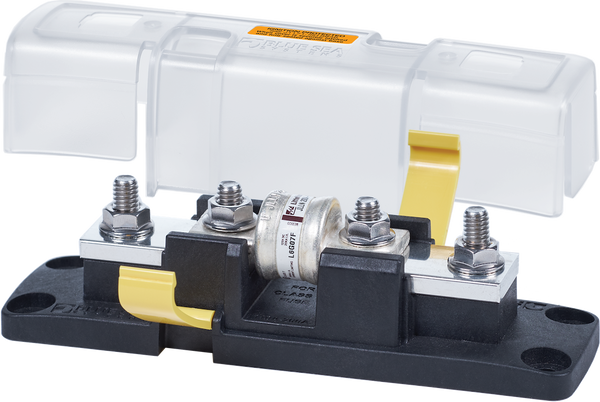

The Blue Sea Fuse Block is designed for use with Class T fuses, providing fast acting circuit protection for inverters and various electronic devices. This fuse block operates at a power rating of 160 volts DC and supports up to 200 amps, making it suitable for high-demand applications. Its stud design ensures secure fuse mounting, even under high heat conditions, while stainless steel studs offer resistance to corrosion and high torque.
The one-piece stainless flange nuts guarantee safe and secure connections, enhancing the overall reliability of the system. The UL 94-V0 rated base is engineered to resist high heat, ensuring durability in challenging environments. Additionally, the ignition protected design and insulating cover meet ABYC and USCG insulation requirements, making it compliant with industry standards.
Cover breakouts allow for wire access in any direction, facilitating easier installation and maintenance. The four stud design provides ample access around the connecting studs, enabling the installation of large cable lugs without obstruction from the fuse. This fuse block is an essential component for ensuring the safety and efficiency of electrical systems.
Features
- Stud Design Ensures Secure Fuse Mounting Even With High Heat
- Stainless Steel Studs Provide Resistance To Corrosion And High Torque
- One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections
- UL 94-V0 Base Resists High Heat
- Ignition Protected
- Cover Breakouts Allow Wire Access In Any Direction
- Insulating Cover Satisfies ABYC And USCG Insulation Requirements
- Four Stud Design Provides Ample Access Around Connecting Stud To Install Large Cable Lugs Without Obstruction From The Fuse
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 5007100-BSS
- Power Rating: 160 Volt
- Type: Slow Blow
- Circuit Type: 2 Circuit Positions
- Fuse Type: Class-T
- Status Indicator Type: No Status Indicator
- Cover Style: Protective Cover
- Includes Flashers: No
- Includes Fuses: No
- Includes Horn Relay: No
- Includes Mounting Brackets: No
- Includes Terminals: No
