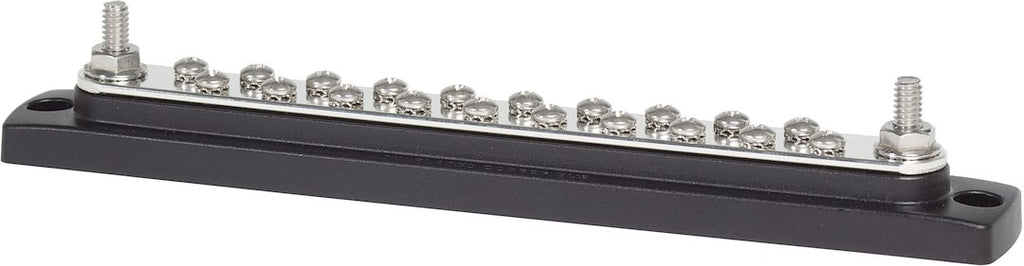

Blue Sea Common Busbar (MPN: 2302-BSS)

Efficiently distribute power with a robust busbar solution.

The Blue Sea Common Busbar is designed for effective power distribution and collection of negative or AC ground circuits. This busbar features a reinforced polycarbonate base with a tin-plated copper bus, ensuring durability and reliability in various electrical applications. With a voltage rating of 300 Volts AC and 48 Volts DC, it supports a current capacity of 130 Amps AC and 150 Amps DC, making it suitable for a range of setups.

Equipped with 20 stud terminals and 2 screw terminals, this busbar allows for flexible wiring configurations. The one-piece serrated flange nut guarantees a secure and correct connection, enhancing the overall performance of the electrical system. Measuring 9-1/4 inches in length and 1-1/4 inches in width, it fits seamlessly into standard installations, providing a compact solution for power management.

This industry-standard busbar is ideal for both positive distribution and the collection of negative returns, making it a versatile component in electrical systems. Its robust construction and thoughtful design ensure that it meets the demands of various applications, from marine to automotive and beyond.

Features

• For Positive Distribution And For The Collection Of Negative Or AC Ground Circuits
• One Piece Serrated Flange Nut Ensures Correct And Secure Connection
• Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• Industry Standard Busbar For Positive Distribution
• 20 Stud Terminal And 2 Screw Terminal

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 2302-BSS
• Type: Flat Strip
• Number Of Terminals: 20
• Voltage Rating: 300 Volt/ 48 Volt
• Ampere: 130 Amp/ 150 Amp

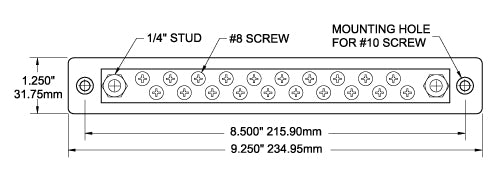

• Length (IN): 9-1/4 Inch
• Width (IN): 1-1/4 Inch
• Material: Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• With Insulated Cover: No

Technical Documents

• 2302.pdf
