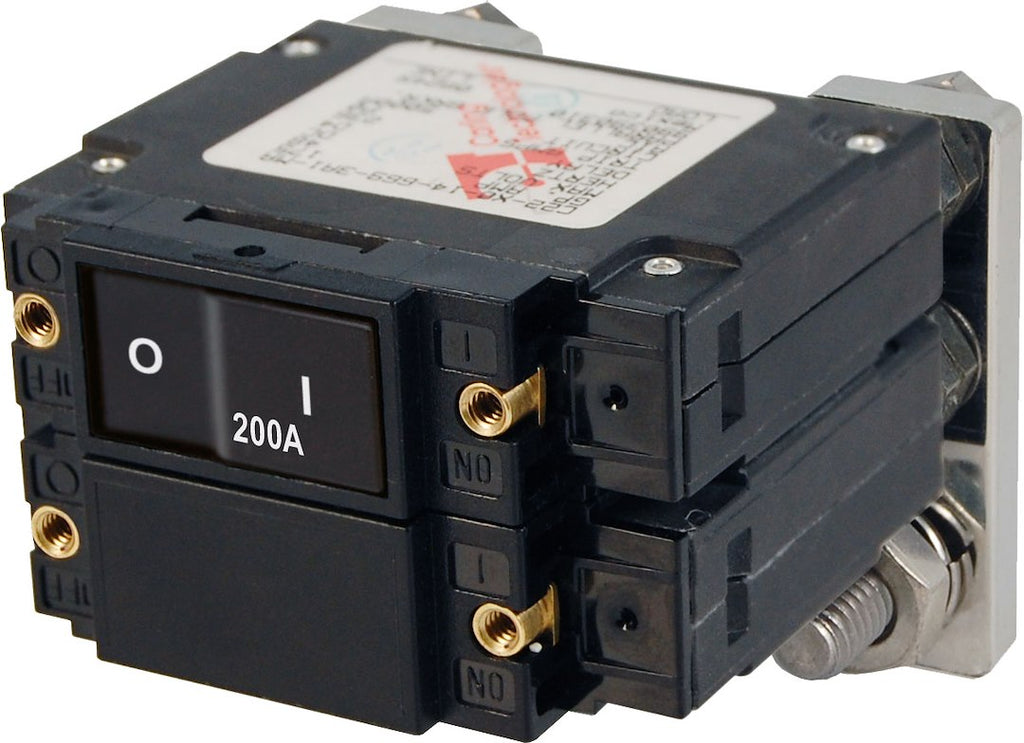

Blue Sea Circuit Breaker C-Series (MPN: 7476-BSS)

Reliable overcurrent protection for marine and vehicle electrical systems.

The Blue Sea Circuit Breaker C-Series is engineered for robust performance in both AC and DC electrical systems, specifically designed for marine and specialized vehicle applications. With a 200 Amp rating and compatibility with 120/240 Volt AC and 48 Volt DC, this circuit breaker provides essential overcurrent protection for critical components such as inverters, bow thrusters, and windlasses. The flat rocker actuator design ensures a flush 'ON' position, minimizing the risk of accidental switching, while the color actuator clearly indicates the 'OFF' position.

This double pole magnetic hydraulic circuit breaker combines switching and circuit protection into a single device, enhancing the efficiency of electrical systems. Operating within a temperature range of -40 to +85 degrees Celsius, it is built to withstand harsh environments. The manual reset feature and 'trip free' design ensure that the breaker cannot be held closed after a trip, providing an additional layer of safety and reliability in demanding conditions.

Features

• Paralleled Poles Have 5/16 Inch Stud On Bus
• Rocker Actuator Is Flush In The “ON” Position, Eliminating The Risk Of Accidental Switching
• Color Actuator Indicates “OFF” Position
• Provides Overcurrent Protection For Inverters, Bow Thrusters, And Windlasses
• Combines Switching And Circuit Protection Into A Single Device
• “Trip Free” : Cannot Be Held Closed After Trip

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7476-BSS
• Ampere Rating: 200 Amp
• Voltage Rating: 120/ 240 Volt AC/ 48 Volt DC
• Reset Type: Manual
• Terminal Connection: Stud
• Type: Double Pole Magnetic Hydraulic
• Number of Poles: 2
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Technical Documents

• 9743.pdf
