Efficient 12 Position Circuit Breaker Block for Reliable Power Management

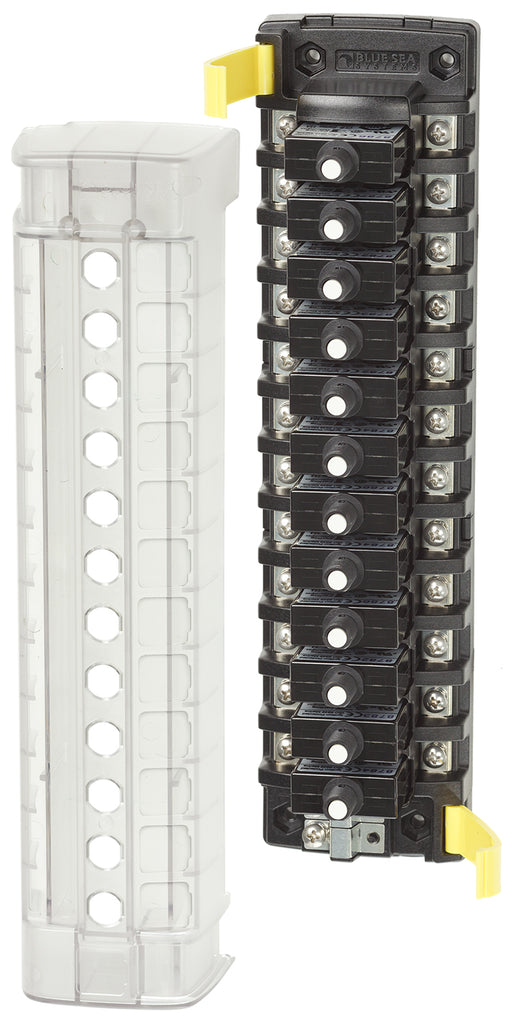

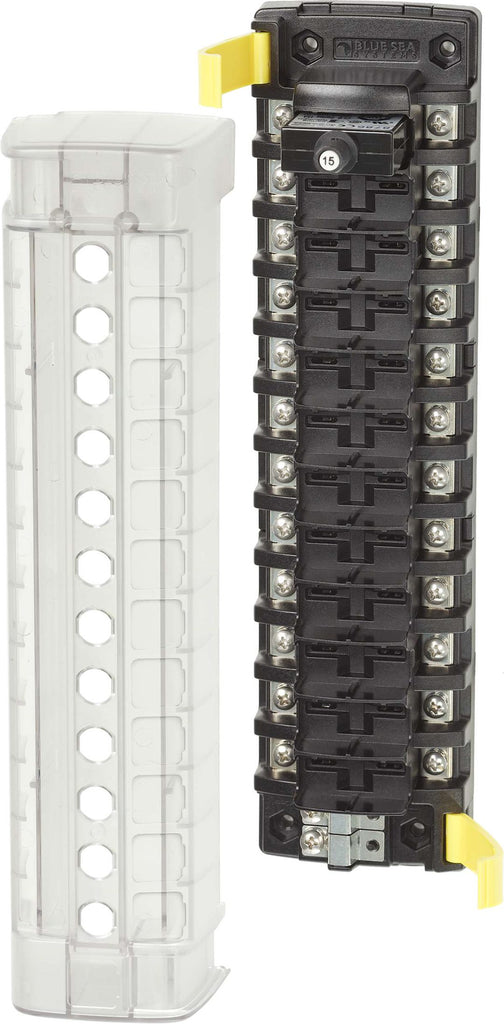

The Blue Sea Circuit Breaker Block offers a compact and efficient solution for managing electrical circuits with its 12 position independent source design. This block is engineered to handle a maximum operating current of 32 amps per circuit and 40 amps for jumped circuit groups, making it suitable for various applications. With a maximum operating voltage of 32 volts DC, it operates effectively within a temperature range of -10 to 60 degrees Celsius.
Designed for ease of installation, the snap-in mounting feature allows for quick and secure placement, similar to that of a fuse. The circuit breaker block includes tin-plated copper busses and screw terminals, ensuring reliable connectivity. Additionally, the clear insulating cover meets ABYC and USCG insulation requirements, providing safety and visibility for circuit management.
The block is equipped with quick connect clips that facilitate easy installation and maintenance. Breakouts allow for wire access in two directions, and it accepts ring terminals for versatile connectivity options. Optional push button waterproof boots or dress nuts can be added for enhanced protection, making this circuit breaker block a practical choice for various electrical setups.
Features
- Quick Connect Clips Allow Circuit Breakers To Snap Easily Into Place
- Tin-Plated Copper Busses And Screw Terminals

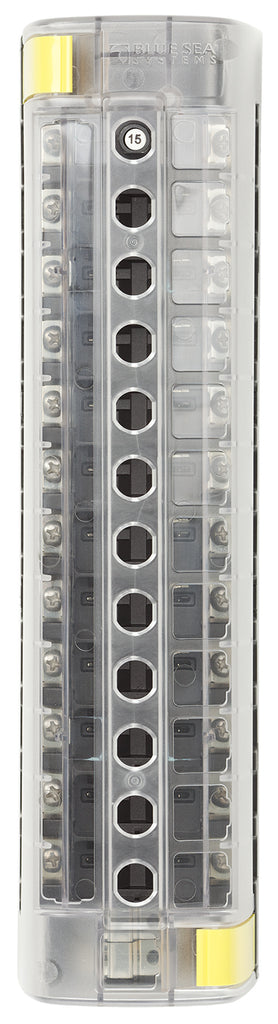

- Clear Insulating Cover With Square Format Label Recesses, Satisfies ABYC/USCG Insulation Requirements
- Easy To Open Clip On Cover
- Breakouts Allow Wire Access In Two Directions
- Accepts Ring Terminals

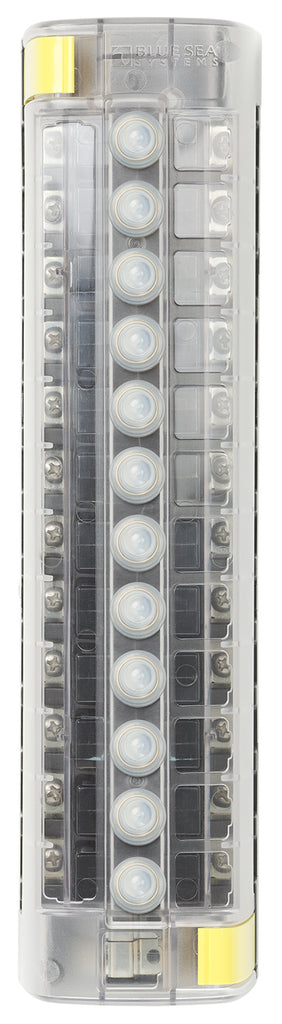

- Optional Push Button Waterproof Boots Or Dress Nuts Can Be Installed Over Cover
- Easy To Install
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 5051-BSS
- Number Of Circuits: 12 Position Independent Source Without Ground Base
- Ampere Rating: 32 Amp Per Circuit/ 40 Amp Per Jumped
- Voltage Rating: 32 Volt DC
- Operating Temperature: -10 Degree Celsius To 60 Degree Celsius
- Mounting Type: Snap-In
- With Insulating Cover: Yes
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
